Incell Editing Font Size

9 Answers 179 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Steve
Top achievements
Rank 1
Veteran
Steve asked on 07 Nov 2020, 05:17 AM

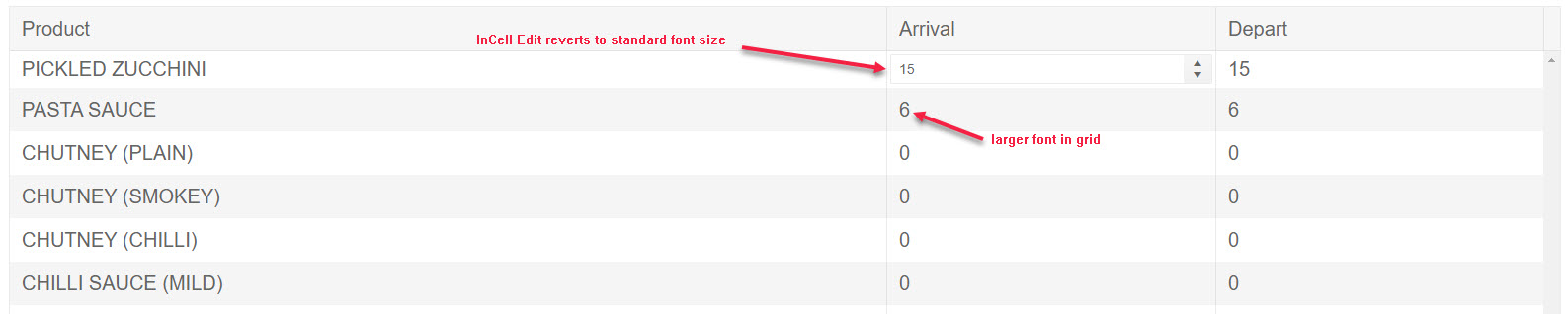

I've used the Elastic Design example to change the font size of the grid, however, font size for Incell Editing appears to revert to standard size.  I'm assuming there are some further style settings that can be set to get Incell Editing to match the Grid Font size?

9 Answers, 1 is accepted

Sort by
0
Accepted
Marin Bratanov
Telerik team
answered on 11 Nov 2020, 08:39 AM

Hi Steve,

You can add cascades that also target inputs in the CSS, for example, here's the addition to the example from the docs:

The grid offers elastic design capabilities

<style>
    div.smallerFont,
    div.smallerFont .k-filtercell * {
        font-size: 10px;
    }

        div.smallerFont .k-dropdown.k-header.k-dropdown-operator {
            width: calc(8px + 2em) !important;
        }

        /* One example for altering content inside the cells - the inputs in InCell editing mode here
        You can create similar rules as needed by inspecting the rendered HTML. This blog can help you do that
        https://www.telerik.com/blogs/improve-your-debugging-skills-with-chrome-devtools
        */
        div.smallerFont .k-grid-edit-cell input{
            font-size: 10px;
        }
</style>

<TelerikGrid Data="@MyData" Class="smallerFont"
             Pageable="true" FilterMode="Telerik.Blazor.GridFilterMode.FilterRow"
             Sortable="true" Height="200px">
    <GridColumns>
        <GridColumn Field="@(nameof(SampleData.ID))">
        </GridColumn>
        <GridColumn Field="@(nameof(SampleData.Name))" Title="Employee Name">
        </GridColumn>
        <GridColumn Field="@(nameof(SampleData.HireDate))" Title="Hire Date">
        </GridColumn>
    </GridColumns>
</TelerikGrid>

original:

<TelerikGrid Data="@MyData"
             Pageable="true" FilterMode="Telerik.Blazor.GridFilterMode.FilterRow"
             Sortable="true" Height="200px">
    <GridColumns>
        <GridColumn Field="@(nameof(SampleData.ID))">
        </GridColumn>
        <GridColumn Field="@(nameof(SampleData.Name))" Title="Employee Name">
        </GridColumn>
        <GridColumn Field="@(nameof(SampleData.HireDate))" Title="Hire Date">
        </GridColumn>
    </GridColumns>
</TelerikGrid>

@code {
    //in a real case, keep the models in dedicated locations, this is just an easy to copy and see example
    public class SampleData
    {
        public int ID { get; set; }
        public string Name { get; set; }
        public DateTime HireDate { get; set; }
    }

    public IEnumerable<SampleData> MyData = Enumerable.Range(1, 50).Select(x => new SampleData
    {
        ID = x,
        Name = "name " + x,
        HireDate = DateTime.Now.AddDays(-x)
    });
}



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Fairoz
Top achievements
Rank 1
answered on 13 Apr 2021, 03:38 AM

Hi Marin,

I have been trying to change the font size of the entire grid but had not been able to do so. I have tried the above elastic codes and the font size for the filter cell does change but not the cells from the rows. I have only one read only column.

Am I missing anything?

0
Steve
Top achievements
Rank 1
Veteran
answered on 13 Apr 2021, 04:01 AM

Fairoz,

Have you updated to the latest version of Telerik Blazor?

I believe I was seeing the same thing as you, and then without altering my code I updated Telrik Blazor and it started working for all of the Grid.

0
Marin Bratanov
Telerik team
answered on 13 Apr 2021, 06:03 AM

Hi all,

Changing the font size can require a few CSS rules (see example in the Elastic Design section of the docs) and it is important to keep in mind that when you upgrade you must update the assets and themes if you are not using them through our static assets.

Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Fairoz
Top achievements
Rank 1
answered on 13 Apr 2021, 07:23 AM

I had just updated to 2.22.0 and its still the same. The CSS rules does not change the Font Size of the Grid.



            <TelerikGrid Class="smallerFont" Data="@traveller.P_RunInfos" Height="600px" FilterMode="Telerik.Blazor.GridFilterMode.FilterRow" EditMode="@GridEditMode.Incell"
                         Resizable="true" SelectionMode="@GridSelectionMode.Multiple"
                         @bind-SelectedItems="traveller.P_SelectedRunInfos">

                @*<TelerikGrid Data="@traveller.P_RunInfos" Height="600px" FilterMode="Telerik.Blazor.GridFilterMode.FilterRow" EditMode="@GridEditMode.Incell" Width="1500px"
                Resizable="true" SelectionMode="@GridSelectionMode.Multiple" SelectedItemsChanged="@((IEnumerable<RunInfo> employeeList) => OnSelect(employeeList))"
                @bind-SelectedItems="traveller.P_SelectedRunInfos">*@

                <GridColumns>
                    <GridCheckboxColumn />
                    <GridColumn Field="P_RunID" Title="RunID" Groupable="false" Filterable="true" Editable="false" />
                </GridColumns>
            </TelerikGrid>


div.smallerFont,
div.smallerFont .k-filtercell * {
    font-size: 10px;
}

    div.smallerFont .k-dropdown.k-header.k-dropdown-operator {
        width: calc(8px + 2em) !important;
    }

    /* One example for altering content inside the cells - the inputs in InCell editing mode here
    You can create similar rules as needed by inspecting the rendered HTML. This blog can help you do that
    */
    div.smallerFont .k-grid-edit-cell input {
        font-size: 10px;
    }

    div.smallerFont .k-grid-container {
        font-size: 10px;
    }
0
Marin Bratanov
Telerik team
answered on 13 Apr 2021, 07:56 AM

Hi,

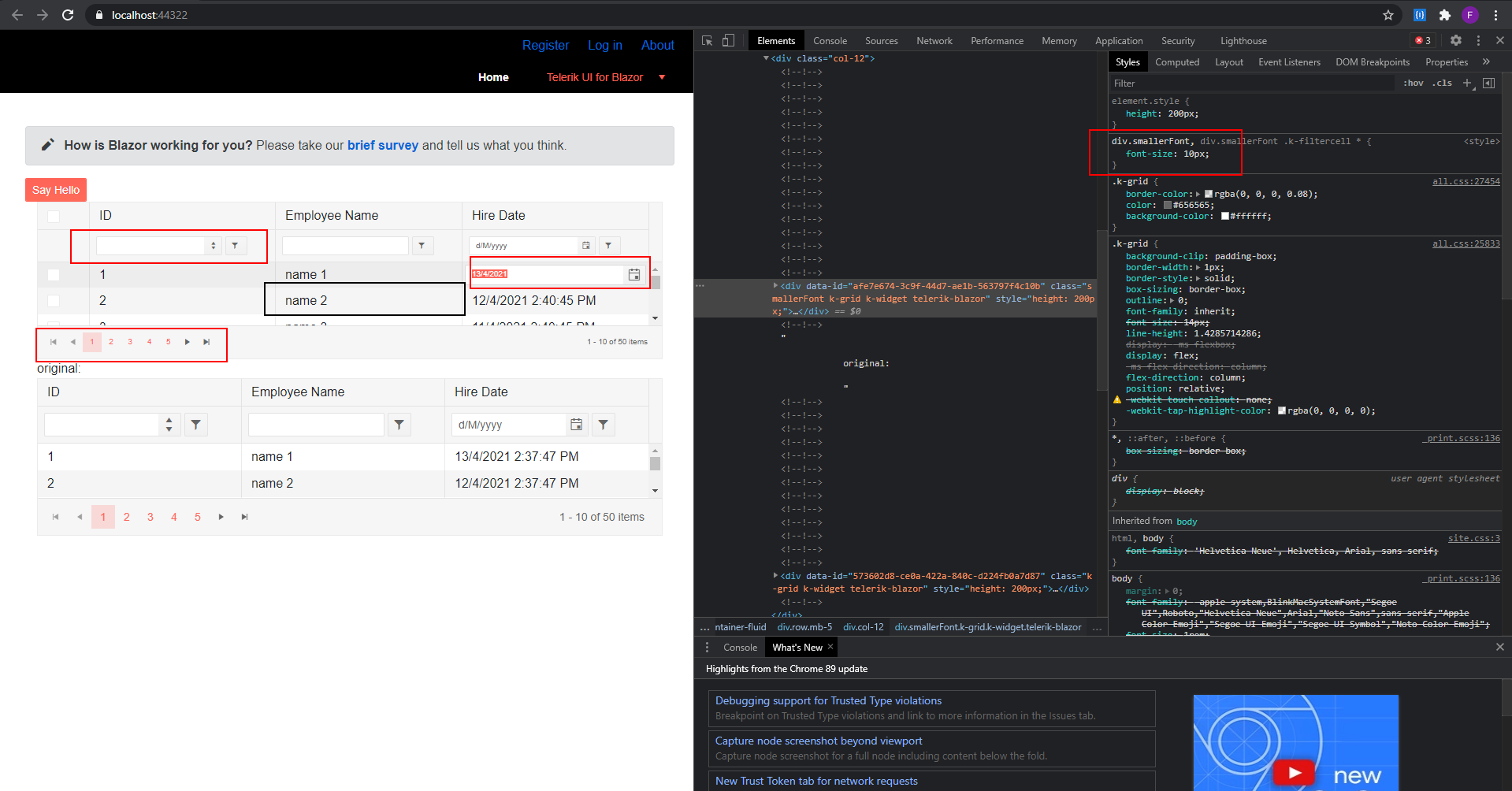

I made a sample for you with the current latest (2.23.0) that shows how this works as expected. I am attaching it at the end of this post together with a short video that demonstrates the expected results. I hope comparing against it will help you move forward.

You may also find useful this blog post on inspecting the rendering of the elements on the page, the CSS rules that apply to them, and to change those rules: https://www.telerik.com/blogs/improve-your-debugging-skills-with-chrome-devtools. Even when there are components for most things, in the web you'd need to handle the HTML tags and their styling with CSS, this is the fundamental thing about a web app and using components cannot completely abstract that away.

Regards,
Marin Bratanov
Progress Telerik

Тhe web is about to get a bit better!

The Progress Hack-For-Good Challenge has started. Learn how to enter and make the web a worthier place: https://progress-worthyweb.devpost.com.

0
Fairoz
Top achievements
Rank 1
answered on 14 Apr 2021, 06:52 AM

Hi Marin,

I did import your code to our sample project and observed something.

The div.smallerFont had changed the filtercell, the footer region and the in-cell editing fonts but not the default row. Perhaps I need to target the row font specifically? Also, I had no issues with changing the blazor TreeView fonts. The issue seems to be with the Grid only.

I can attach the sample project if you require. Let me know how.

Thanks.

0
Marin Bratanov
Telerik team
answered on 14 Apr 2021, 07:48 AM

Hello Fairoz,

Perhaps you need a heavier selector. Perhaps there is some other CSS in the project that's interfering. Since there is a set of selectors that works fine for my project, my best advice is to compare against them, inspect the rendering to see what rules are applied and tweak the rules so you get the desired behavior.

Regards,
Marin Bratanov
Progress Telerik

Тhe web is about to get a bit better!

The Progress Hack-For-Good Challenge has started. Learn how to enter and make the web a worthier place: https://progress-worthyweb.devpost.com.

0
Fairoz
Top achievements
Rank 1
answered on 15 Apr 2021, 07:34 AM

This is for those who might hit the same problem. The below needs to be added and it works.

div.smallerFont .k-grid-table {
    font-size: 12px;
}
