how to add a horizontal rule to indicate time frame (working hours)

2 posts, 0 answers
  1. Bert
    Bert avatar
    3 posts
    Member since:
    Mar 2014

    Posted 17 May 2014 Link to this post

    All,

    I have table which is build in .net, dynamically (server side), which shows me an overview of all people that need to work on a specific day for a specific area.

    A list is fine, but I would like to visualize this for users. I have multiple working area's and up to 20 people working per working area per day, so putting it all into an outlook style calender overview is useless as it will become to complicated.

    I now had the idea to add a HR per entry (tr) which would correspond to the hours they need to work. (some like a range bar)

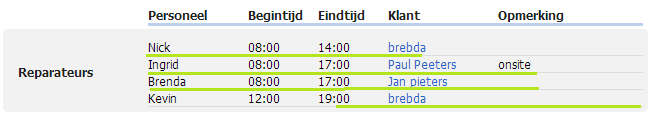

    Attached the screenshot where i added the green lines in paint, to show what i'm trying to achieve. (The table is in Dutch but you can easily see what the working hours are)

    Is there any telerik control that would offer this functionality?

  2. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 19 May 2014 in reply to Bert Link to this post

    Hi Bert,

    Please have a look into this online demo to achieve your scenario. You can modify the TimeLineViewSettings of RadScheduler to achieve your scenario. First change the "Slot Duration" as 1Hour and  set the "Start Time". By double clicking on the Appointment you can mention the "Start Time" and" End Time" of each Appointment and  you can customize the Appointment style.

    Thanks,
    Shinu.
