[Solved] How RadGrid Paging works?

3 Answers 214 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Søren Hartig asked on 28 Nov 2009, 02:17 PM



Hi all,

I'm kind'a new to the Telerik components (work with them everyday but in basic stuff), because we (company) used it for more than 2 years now, I decided to use them (extensively) in a new project I have in hands, and even reading the entire Paging content inside the Grid section for more than 3 times now, I can't find what I'm doing wrong.

I have a Grid control that looks like this:

                    <telerik:RadGrid ID="gvResult" CssClass="tblQuery queryWindow maxSize ui-widget-content"
                    runat="server" GridLines="None" CellPadding="15" AutoGenerateColumns="False"
                    PageSize="25" AllowPaging="True" OnRowDataBound="gvResult_RowDataBound" onpageindexchanging="gvResult_PageIndexChanging"
                    Skin="Web20" onneeddatasource="gvResult_NeedDataSource">
                    <MasterTableView>
                        <NoRecordsTemplate>
                            Hummmm, there is nothing to show, the search result in absolutly nothing! Maybe you want to <a href="javascript:history.back(-1);">go back</a> and search again with other parameters?
                        </NoRecordsTemplate>
                        <RowIndicatorColumn>
                            <HeaderStyle Width="20px"></HeaderStyle>
                        </RowIndicatorColumn>
                        <ExpandCollapseColumn>
                            <HeaderStyle Width="20px"></HeaderStyle>
                        </ExpandCollapseColumn>
                    </MasterTableView>
                    <HeaderStyle HorizontalAlign="Left" />
                    <ItemStyle HorizontalAlign="Left" />
                    <AlternatingItemStyle HorizontalAlign="Left" />
                </telerik:RadGrid>

simple right ? ...

and on code behind on PageLoad I populate the Data

                    protected void Page_Load(object sender, EventArgs e)
            {
                if (!IsPostBack)
                    PopulateData();
            }

where inside the PopulateData method I call a method that creates a DataTable and attach it to the Grid DataSource.

The DataTable is created with static columns and dynamic, so I never know the column size, only on runtime.

My CreateSource method dos this in summary:

1 - Creates a new DataTable object

2 - Creates 5 DataColumns (statict columns) and adds them into the DataTable object

3 - Loops through all dynamic columns and adds the same way

4 - For each Business Object in my Collection I add the Data into a DataRow and attach it to the DataTable.Rows Collection

5 - Foreach DataColumn in DataTable.Columns I Bound the DataFields, GridCheckBoxColumn, GridHyperlinkColumn and GridBoundColumn respectivly by my Business Object type

6 - Keep this DataTable object into a Session Variable

7 - RadGrid.DataSource = myDataTable

that works fine, and it is show lovely on the rendered page... but! (there's always a but) :-(

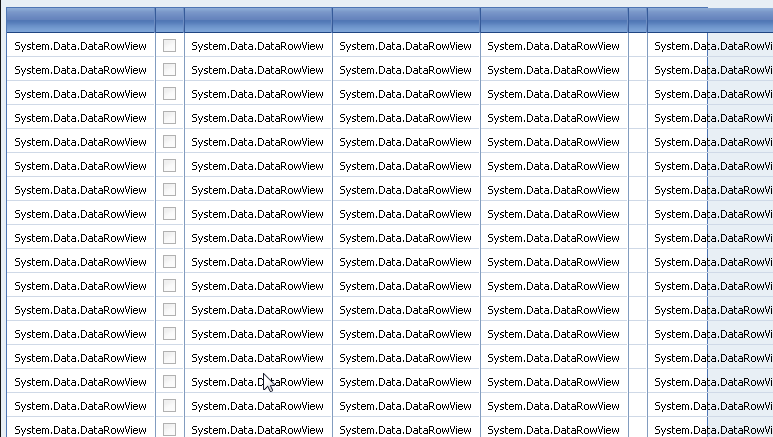

I can't work with the pagging, when I press any other page I do not get my data, but the Column Type .ToString() :-/

Reading the help I created a method (NeedDataSource) and added this code into it:

                    protected void gvResult_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
            {
                if (HttpContext.Current.Session["EDSWebSearch-SearchReturn-DataTable"] != null)
                {
                    gvResult.DataSource = (DataTable)HttpContext.Current.Session["EDSWebSearch-SearchReturn-DataTable"];
                }
                else
                {
                    edsDebug.Write("Session Expired, redirecting to Start page");
                    Response.Redirect("default.aspx" + Request.Url.Query);
                }
            }

The DataTable contains all items I need, what should I do here?

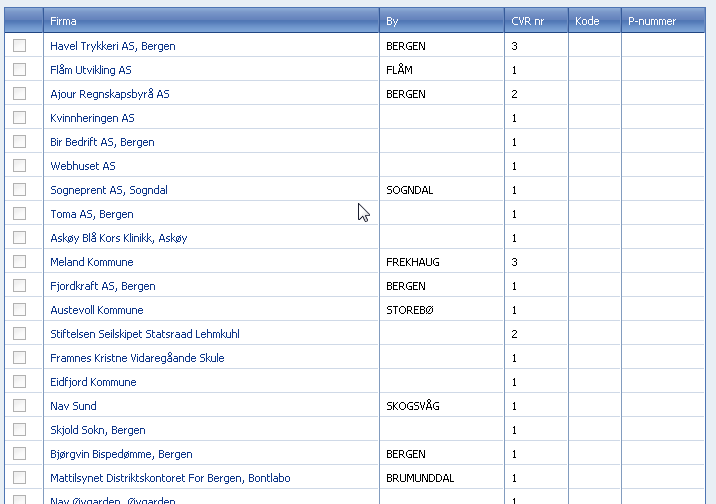

screenshots attached, screencast here: (35 sec: 1,35Mb) http://bit.ly/6xxxMV

Thank you,

// Bruno Alexandre, using Soren's account.

[Solved] How RadGrid Paging works?

3 Answers, 1 is accepted
