[Solved] Hierarchy fails to display Level 3

2 Answers 155 Views

Grid

This is a migrated thread and some comments may be shown as answers.

nick chance asked on 11 Mar 2013, 02:44 PM

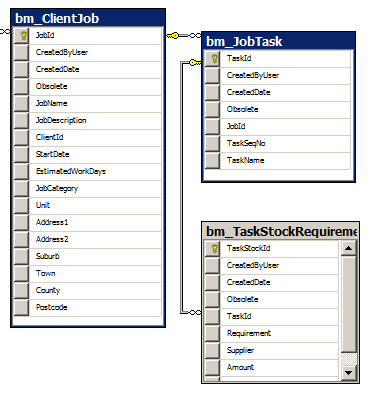

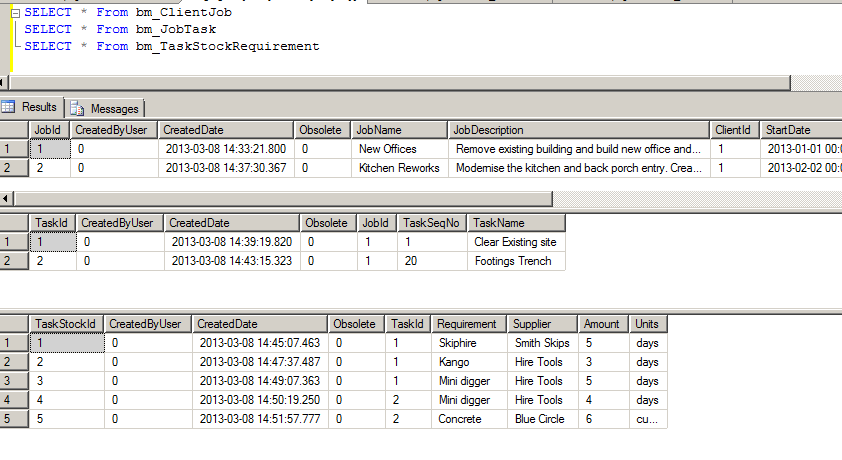

I have 3 levels
Top Level - Client Job
2nd Level - JobTask
3rd Level - TaskStockRequirments

The ClentId for the TopLevel is achieved through :-

Protected Sub SqlTopLevel_Clients_Selecting(sender As Object, e As System.Web.UI.WebControls.SqlDataSourceSelectingEventArgs) Handles SqlTopLevel_Clients.Selecting

If hdnClientId.Value = "" Then hdnClientId.Value = "1"

e.Command.CommandText = "SELECT * FROM bm_ClientJob Where ClientId = " & CStr(hdnClientId.Value)

End Sub

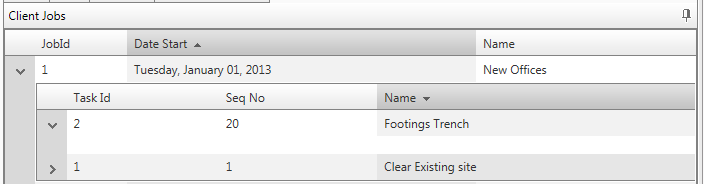

and this is ok and the Level 2 is displayed OK but I can't understand why Level 3 doesn't appear.

<%-- CLIENT JOBS HIERARCHICAL GRIDS --%>

<telerik:RadSlidingPane ID="rspClientJobs" Title="Client Jobs" runat="server" Height="650px">

<telerik:RadFormDecorator ID="QsfFromDecorator" runat="server" DecoratedControls="All" EnableRoundedCorners="false" />

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="grdClientJobs">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="grdClientJobs"></telerik:AjaxUpdatedControl>

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

<telerik:RadGrid ID="grdClientJobs" OnPreRender="grdClientJobs_PreRender" ShowStatusBar="True"

DataSourceID="SqlTopLevel_Clients" runat="server"

AutoGenerateColumns="False" PageSize="7"

AllowSorting="True" AllowPaging="True" GridLines="None" CellSpacing="0">

<PagerStyle Mode="NumericPages"></PagerStyle>

<MasterTableView DataSourceID="SqlTopLevel_Clients" DataKeyNames="JobId" AllowMultiColumnSorting="True" HierarchyLoadMode="Client" Width="100%">

<DetailTables>

<telerik:GridTableView DataKeyNames="JobId" DataSourceID="SqlLevel2_ClientJobs" Width="100%"

runat="server">

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="JobId" MasterKeyField="JobId">

</telerik:GridRelationFields>

</ParentTableRelation>

<%--LEVEL 3 GRID TABLE - JOBTASKS COLUMNS--%>

<DetailTables>

<telerik:GridTableView DataKeyNames="TaskId" DataSourceID="SqlLevel3_ClientJobTasks" Width="100%"

runat="server">

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="TaskId" MasterKeyField="TaskId"></telerik:GridRelationFields>

</ParentTableRelation>

<Columns>

<telerik:GridBoundColumn SortExpression="Requirement" HeaderText="Requirement" HeaderButtonType="TextButton"

DataField="Requirement" UniqueName="Requirement">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="Supplier" HeaderText="Supplier" HeaderButtonType="TextButton"

DataField="Supplier" UniqueName="Supplier">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="Amount" HeaderText="Amount" HeaderButtonType="TextButton"

DataField="Amount" UniqueName="Amount">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="Units" HeaderText="Units" HeaderButtonType="TextButton"

DataField="Units" UniqueName="Units">

</telerik:GridBoundColumn>

</Columns>

<SortExpressions>

<telerik:GridSortExpression FieldName="TaskName" SortOrder="Descending"></telerik:GridSortExpression>

</SortExpressions>

</telerik:GridTableView>

</DetailTables>

<%--LEVEL 2 GRID TABLE - CLIENT JOB COLUMNS--%>

<Columns>

<telerik:GridBoundColumn SortExpression="TaskId" HeaderText="Task Id" HeaderButtonType="TextButton"

DataField="TaskId" UniqueName="TaskId">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="TaskSeqNo" HeaderText="Seq No" HeaderButtonType="TextButton"

DataField="TaskSeqNo" UniqueName="TaskSeqNo">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="TaskName" HeaderText="Name" HeaderButtonType="TextButton"

DataField="TaskName" UniqueName="TaskName">

</telerik:GridBoundColumn>

</Columns>

<SortExpressions>

<telerik:GridSortExpression FieldName="TaskName" SortOrder="Descending"></telerik:GridSortExpression>

</SortExpressions>

</telerik:GridTableView>

</DetailTables>

<%--TOP LEVEL CLIENT COLUMNS--%>

<Columns>

<telerik:GridBoundColumn SortExpression="JobId" HeaderText="JobId" HeaderButtonType="TextButton"

DataField="JobId" UniqueName="JobId">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="StartDate" HeaderText="Date Start" HeaderButtonType="TextButton"

DataField="StartDate" UniqueName="StartDate" DataFormatString="{0:D}">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn SortExpression="JobName" HeaderText="Name" HeaderButtonType="TextButton"

DataField="JobName" UniqueName="JobName">

</telerik:GridBoundColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

<%--HIERARCHICAL GRIDS SQL DATA SOURCES--%>

<asp:SqlDataSource ID="SqlTopLevel_Clients" ConnectionString="<%$ ConnectionStrings:SiteSqlServer %>"

ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM bm_ClientJob Where ClientId = @ClientId"

runat="server">

</asp:SqlDataSource>

<asp:SqlDataSource ID="SqlLevel2_ClientJobs" ConnectionString="<%$ ConnectionStrings:SiteSqlServer %>"

ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM bm_JobTask where JobId = @JobId Order By TaskSeqNo"

runat="server">

<SelectParameters>

<asp:SessionParameter Name="JobId" SessionField="JobId" Type="Int32"></asp:SessionParameter>

</SelectParameters>

</asp:SqlDataSource>

<asp:SqlDataSource ID="SqlLevel3_ClientJobTasks" ConnectionString="<%$ ConnectionStrings:SiteSqlServer %>"

ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM bm_TaskStockRequirement where TaskId = @TaskId"

runat="server">

<SelectParameters>

<asp:SessionParameter Name="TaskId" SessionField="TaskId" Type="Int32"></asp:SessionParameter>

</SelectParameters>

</asp:SqlDataSource>

Any ideas please?

2 Answers, 1 is accepted

answered on 14 Mar 2013, 11:18 AM

Hello,

It is necessary to set "JobId" as a MasterKeyField to the ParentTableRelation settings of the third level. The key field should refer to parent GridTableView DataField which you want to use as relation. The MasterKeyField in the GridRelationFields should match the primary key of the parent table in the corresponding relation.

All the best,
Milena
the Telerik team
