[Solved] Hierarchical RadGrid Export to pdf

[Kalpna]

I have a problem to while exporting the data of Hierarchical RadGrid data in pdf form.

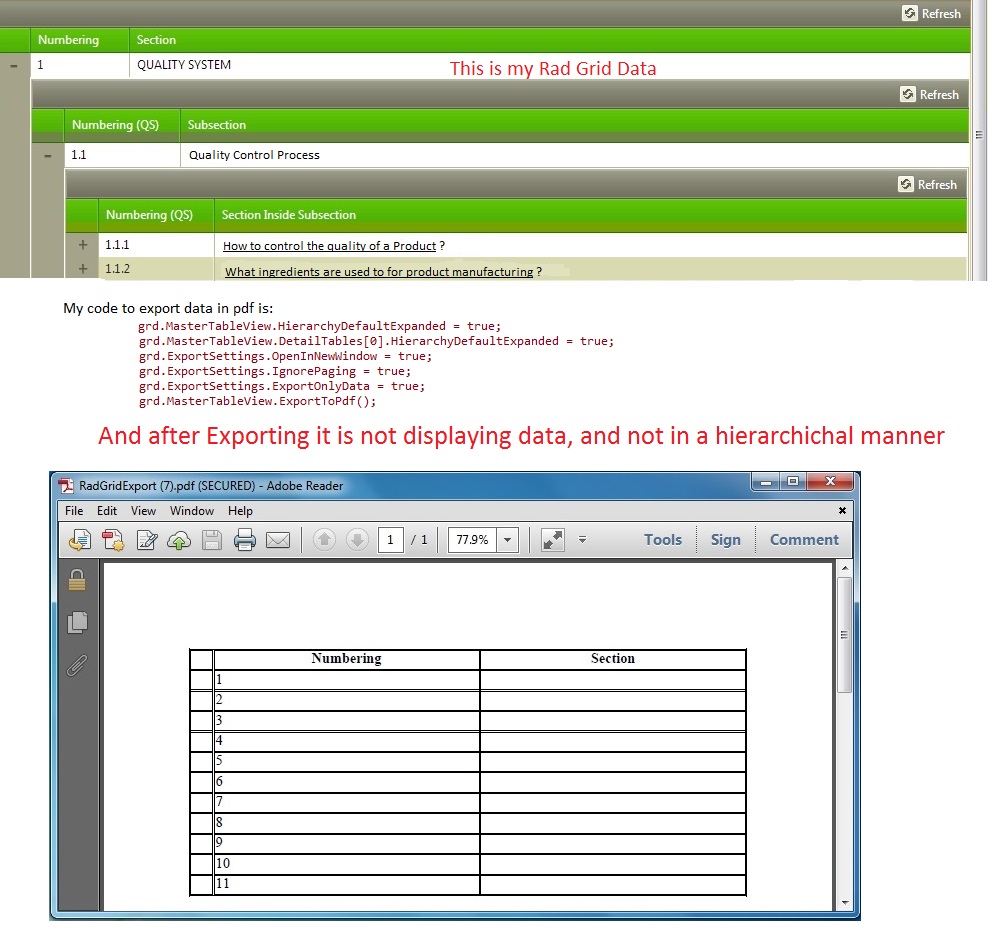

Please see the attached image.

It is not showing proper data. And i am writng the code to export the pdf of radgrid on a Simple Image Button Click.
Please help me. It is urgent for me. Thanks in advance.

[Daniel]

Hello Kalpna,

Please try enabling the RetainExpandStateOnRebind property.
Let me know whether this helps.

Regards,
Daniel
Telerik

[Kalpna]

Hello Daniel,
RadGrid is not showing this property 'RetainExpandStateOnRebind '.

And now i want to set the width of column of detail table view in export to pdf. But i am unable to set them. This is my pdf screen-shot which i got after export to pdf. Please help me to apply style on each column of detail table view.

Please help me. its urgent for me.

[Princy]

Hi Kalpna,

The RetainExpandStateOnRebind has been introduced in Q3 2013 BETA.
To set the width of the detail table on export to PDF please try the following code snippet.

C#:

protected void PDFExportbtn_Click(object sender, EventArgs e)
{
 RadGrid1.MasterTableView.HierarchyDefaultExpanded = true;
 if (RadGrid1.MasterTableView.HasDetailTables)
 {
  foreach (GridTableView gridTableView in RadGrid1.MasterTableView.DetailTables)
  {
   gridTableView.HierarchyDefaultExpanded = true;
   gridTableView.GetColumn("ColumnUniqueName").HeaderStyle.Width = Unit.Pixel(300);
  }
 }
 RadGrid1.Rebind();
 RadGrid1.MasterTableView.ExportToPdf();
}

Thanks,
Princy

[Kalpna]

Hello Princy,
I have already done this. But this is not working.

[Princy]

Hi Kalpna,

Please take a look at the sample code snippet it works fine at my end. Provide your code snippet if this doesn't help.

ASPX:

<asp:Button ID="PDFExportbtn" runat="server" Text="Export to PDF" OnClick="PDFExportbtn_Click" />
<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="False" RetainExpandStateOnRebind="true" AllowPaging="True" OnDetailTableDataBind="RadGrid1_DetailTableDataBind" OnNeedDataSource="RadGrid1_NeedDataSource" AllowSorting="true">
    <MasterTableView DataKeyNames="CustomerID" HierarchyLoadMode="Client" CommandItemDisplay="Top">
        <DetailTables>
            <telerik:GridTableView DataKeyNames="OrderID" Name="Orders" Width="100%" RetainExpandStateOnRebind="true" HierarchyLoadMode="Client"
                HierarchyDefaultExpanded="false">
                <DetailTables>
                    <telerik:GridTableView DataKeyNames="OrderID,UnitPrice" Name="OrderDetails">
                        <Columns>
                            <telerik:GridBoundColumn SortExpression="UnitPrice" HeaderText="Unit Price" DataField="UnitPrice">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn SortExpression="Quantity" HeaderText="Quantity" DataField="Quantity">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn SortExpression="Discount" HeaderText="Discount" DataField="Discount">
                            </telerik:GridBoundColumn>
                        </Columns>
                    </telerik:GridTableView>
                </DetailTables>
                <Columns>
                    <telerik:GridBoundColumn SortExpression="OrderID" HeaderText="OrderID" DataField="OrderID" >
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn SortExpression="OrderDate" HeaderText="Date Ordered" HeaderButtonType="TextButton"
                        DataField="OrderDate" UniqueName="OrderDate" DataFormatString="{0:D}">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn SortExpression="Freight" HeaderText="Freight" DataField="Freight" UniqueName="Freight">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn SortExpression="ShipCity" HeaderText="ShipCity" DataField="ShipCity" UniqueName="ShipCity">
                    </telerik:GridBoundColumn>
                </Columns>
            </telerik:GridTableView>
        </DetailTables>
        <Columns>
            <telerik:GridBoundColumn SortExpression="CustomerID" HeaderText="CustomerID" DataField="CustomerID">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="ContactName" HeaderText="Contact Name" DataField="ContactName">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="CompanyName" HeaderText="Company" DataField="CompanyName">
            </telerik:GridBoundColumn>
        </Columns>
    </MasterTableView>
</telerik:RadGrid>

C#:

protected void RadGrid1_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
{
    if (!e.IsFromDetailTable)
    {
        RadGrid1.DataSource = GetDataTable("Select * from Customers");
    }
}

protected void RadGrid1_DetailTableDataBind(object source, Telerik.Web.UI.GridDetailTableDataBindEventArgs e)
{
    GridDataItem dataItem = (GridDataItem)e.DetailTableView.ParentItem;
    switch (e.DetailTableView.Name)
    {
        case "Orders":
            {
                string CustomerID = dataItem.GetDataKeyValue("CustomerID").ToString();
                e.DetailTableView.DataSource = GetDataTable("SELECT * FROM Orders WHERE CustomerID = '" + CustomerID + "'");
                break;
            }
        case "OrderDetails":
            {
                string OrderID = dataItem.GetDataKeyValue("OrderID").ToString();
                e.DetailTableView.DataSource = GetDataTable("SELECT * FROM [Order Details] WHERE OrderID = " + OrderID);
                break;
            }
    }
}

   public DataTable GetDataTable(string query)
    {
        String ConnString = ConfigurationManager.ConnectionStrings["Northwind_newConnectionString3"].ConnectionString;
        SqlConnection conn = new SqlConnection(ConnString);
        SqlDataAdapter adapter = new SqlDataAdapter();
        adapter.SelectCommand = new SqlCommand(query, conn);

        DataTable myDataTable = new DataTable();

        conn.Open();
        try
        {
            adapter.Fill(myDataTable);
        }
        finally
        {
            conn.Close();
        }

        return myDataTable;
    }

protected void PDFExportbtn_Click(object sender, EventArgs e)
{
    RadGrid1.MasterTableView.HierarchyDefaultExpanded = true;
    if (RadGrid1.MasterTableView.HasDetailTables)
    {
        foreach (GridTableView gridTableView in RadGrid1.MasterTableView.DetailTables)
        {
            gridTableView.HierarchyDefaultExpanded = true;
            gridTableView.GetColumn("OrderID").HeaderStyle.Width = Unit.Pixel(300);
            if (gridTableView.HasDetailTables)
            {
                foreach (GridTableView gridTableViewinner in gridTableView.DetailTables)
                {
                    gridTableViewinner.GetColumn("UnitPrice").HeaderStyle.Width = Unit.Pixel(300);
                }
            }
        }
    }
    RadGrid1.Rebind();
    RadGrid1.MasterTableView.ExportToPdf();
}

Thanks,
Princy

[Srujan]

Hi Princy ,

I am using below code and when I export to PDF it shows as file corrupted , can  you please suggest to proceed further

RadGrid.MasterTableView.HierarchyDefaultExpanded = true;
if (RadGrid.MasterTableView.HasDetailTables)
{
foreach (GridTableView gridTableView in RadGrid.MasterTableView.DetailTables)
{
  gridTableView.HierarchyDefaultExpanded = true;
}
}
RadGrid.Rebind();
RadGrid.MasterTableView.ExportToPdf();

[Princy]

Hi Srujan,

I'm not aware of such an issue. I was not able to replicate it on my side. Try to upgrade to the latest version and check. Please provide your full code snippet to identify the issue. I have tried the sample code given above and it exports fine to PDF. Please take a look at this article on PDF Export for more information.

Thanks,
Princy
