Grid Foreign Key Column Not Showing

[Mehmet]

Hello,

I want to show, group and filter the Id field on one of the grid columns by connecting it to the Enum side.

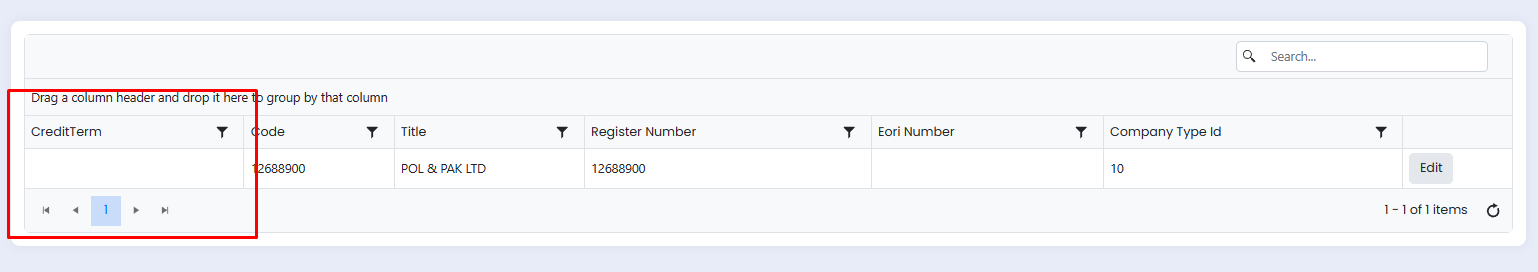

I used ForeignKey column but it doesn't show the data.

The request is being sent. data is returning. But it doesn't show.

Important Note: I don't use inline editing on the grid. It'll only show.

What's wrong?

Result SET

{
    "Data": [
        {
            "LogoUrl": "",
            "ParentCompany": null,
            "ParentCompanyId": 0,
            "CompanyType": 10,
            "CompanyTypeId": 10,
            "Title": "POL & PAK LTD",
            "Code": "12688900",
            "PostCode": "ST1 4NP",
            "Address": "10 Harcourt Street, Stoke-On-Trent, England, ST1 4NP",
            "ShortNotes": "12688900 - Incorporated on 22 June 2020",
            "VatNumber": null,
            "ExemptVat": false,
            "EoriNumber": null,
            "RegisterNumber": "12688900",
            "CreditLimit": 0.00000,
            "DiscountRate": 0.00000,
            "CreditTerm": null,
            "CreditTermId": 0,
            "Longitude": null,
            "Latitude": null,
            "Status": "Active",
            "StatusId": 10,
            "Id": 1
        }
    ],
    "Total": 1,
    "AggregateResults": null,
    "Errors": null
}

Column

 columns.ForeignKey(p => p.CreditTermId, ds => ds.Read(r => r.Action("GetCreditTerms", "ErpCommon")), "CreditTermId", "CreditTermName").Title("CreditTerm");

Endpoint

 public async Task<IActionResult> GetCreditTermsAsync()
 {
     var model = new List<ErpCreditTermViewModel>();

     var availibleCreditTerms = await _erpCreditTermService.GetCreditTermsAsync();
     foreach (var creditTerm in availibleCreditTerms)
     {
         var erpCreditTermViewModel = await _erpCreditTermModelFactory.PrepareCreditTermViewModelAsync(creditTerm);
         model.Add(erpCreditTermViewModel);
     }

     return Json(model);
 }

[Alexander]

Hi Mehmet,

I noticed that there is no active license associated with your account. Which limits our support service overall. In this regard, I would advise purchasing a new license, in order to get a hold of the latest bug fixes, enhancements, and support service. More information regarding the available purchase plans is available here:

• Support Plans

Regardless, I want to help you unravel this further. I have created a proof-of-concept sample for you to examine further. Here is how the different logical compartments are incorporated:

Grid Columns:

.Columns(columns =>
{
    columns.ForeignKey(o => o.CreditTermId, ds => ds.Read(r => r.Action("GetCreditTerms", "ErpCommon")), "CreditTermId", "CreditTermName");
})

Model:

public class Order
{
    public int OrderId { get; set; }
    public string OrderName { get; set; }
    public CreditTypes CreditTermId { get; set; } // Foreign Key
}

Enum:

public enum CreditTypes
{
    None,
    Some
}

GetCreditTermsAsync Method:

public async Task<List<ErpCreditTermViewModel>> GetCreditTermData()
{
    var data = Enumerable.Range(0, 2)
        .Select(i => new ErpCreditTermViewModel
        {
            CreditTermId = i,
            CreditTermName = "TermName" + i
        })
        .ToList();

    return Task.FromResult(data).GetAwaiter().GetResult();
}

public async Task<IActionResult> GetCreditTermsAsync()
{
    var model = await Task.Run(GetCreditTermData);

    return Json(model);
}

Attached is a runnable sample for you to examine further.

Kind Regards,
Alexander
Progress Telerik
