Grid export columns only contain System.Data.DataRowView

1 Answer 101 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Lynn
Top achievements
Rank 2
Lynn asked on 31 Aug 2014, 07:03 PM
I have a grid that works fine otherwise, but when I export it (regardless of Excel, CSV, PDF, etc.) their are two issues:

(1) The first issue is that hypercolumns are shown as blank in the exported file even the programmatic definition is "exportable = false";
(2) All of the columns that contain boundcolumn's only contain the value "System.Data.DataRowView" text instead of the values from the grid (
which display correctly).

I have read other forum entries that discuss this textual value, but they pretty much have to do with data column names not matching the grid column names -- and that is not the case.

I have attached:

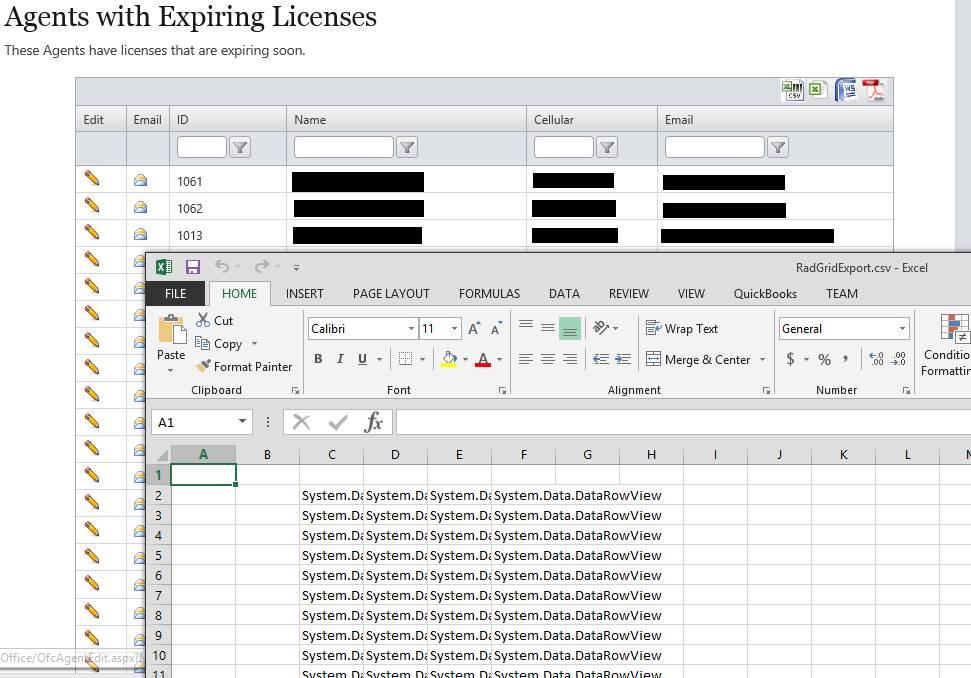

(1) a screen capture of the displayed grid with one of the export files superimposed showing the results.  Please remember that is does NOT matter which export file format I select.
(2) the .aspx display file source that I can distribute;
(3) the master file source that I can distribute; and,
(4) the code behind file source code that I can distribute.

Any help anyone can provide would be most appreciated!

Lynn

Source code follows:

the .aspx display file source that I can distribute:
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
        <h3>
        Agents with Expiring Licenses
    </h3>
    <p>
        These Agents have licenses that are expiring soon.
    </p>
<div class="container">
    <div class="row10">
        <div class="one column" >

        </div>
        <div class="fourteen columns" >
            <telerik:RadGrid ID="RadGrid1" runat="server" AllowSorting="True" OnNeedDataSource="RadGrid1_NeedDataSource" Width="99.7%"
                AutoGenerateColumns="false" AllowPaging="false" OnItemDataBound="RadGrid1_ItemDataBound"  AllowFilteringByColumn="True">
                <ExportSettings HideStructureColumns="true" Csv-ColumnDelimiter="Comma" IgnorePaging="true" OpenInNewWindow="true" ExportOnlyData="true" >
                </ExportSettings>
                <MasterTableView Width="100%" CommandItemDisplay="Top" EnableViewState="true">
                    <PagerStyle Mode="Slider"></PagerStyle>
                    <CommandItemTemplate>
                        <table class="rcCommandTable" width="100%">
                            <tr>
                            <td style="float: right; vertical-align:middle;" >
                                <asp:ImageButton runat="server" ID="btnCSVExport" ImageUrl="../Icons/csvdownload.jpg" CommandName="ExportToCSV" Height="24px" Width="24px" ToolTip="Export to CSV" />
                                <asp:ImageButton runat="server" ID="btnExcelExport" ImageUrl="../Icons/excel.png" CommandName="ExportToExcel" Height="24px" Width="24px" ToolTip="Export to Excel" />
                                <asp:ImageButton runat="server" ID="btnWordExport" ImageUrl="../Icons/ms_word_2.png" CommandName="ExportToWord" Height="24px" Width="24px" ToolTip="Export to Word" />
                                <asp:ImageButton runat="server" ID="btnPDFExport" ImageUrl="../Icons/Pdf.png" CommandName="ExportToPDF" Height="24px" Width="24px" ToolTip="Export to PDF" />

                            </td>
                            </tr>
                        </table>
                    </CommandItemTemplate>
                    <CommandItemSettings ShowExportToWordButton="true" ShowExportToExcelButton="true" ShowExportToCsvButton="true" ShowExportToPdfButton="true">
                    </CommandItemSettings>
                    <Columns>

                    </Columns>
                </MasterTableView>
            </telerik:RadGrid>
        </div>
        <div class="one column" >

        </div>
    </div>
</div>
<br />
<div class="container">
    <div class="row10">
        <div class="sixteen columns" style="text-align: center;" >
            <telerik:RadButton ID="CloseMe" runat="server" Text="Close Window" CausesValidation="False" ToolTip= "Closes this window." UseSubmitBehavior="False" OnClientClicked="closemenow" />
        </div>
    </div>
</div>
<div class="container">
    <div class="row10">
        <div class="sixteen columns" style="text-align: center;">
            <asp:Label ID="PageErrors" runat="server" Font-Bold="True" ForeColor="#C00000" Width="95%"></asp:Label>
        </div>
    </div>
</div>
</asp:Content>



the master file source that I can distribute:

<body id="page1">
    <telerik:RadFormDecorator Skin="Office2010Silver" Enabled="true" ID="QsfFormDecorator" DecorationZoneID="rfd-demo-zone" runat="server" DecoratedControls="All" EnableRoundedCorners="true" EnableEmbeddedSkins="true" />
    <telerik:RadSkinManager ID="RadSkinManager1" runat="server" ></telerik:RadSkinManager>
    <form id="form1" runat="server">
        <div id="rfd-demo-zone" >
            <telerik:RadScriptManager ID="RadScriptManager1" runat="server">

            </telerik:RadScriptManager>
            <div id="content">
                <div class="main">
                    <div class="xcontainer">
                        <div class="row-main-25" style="padding-bottom: 10px; ">
                            <!-- navbar start -->
                                <div class="sixteen columns ">
                                    <div class="menucontainer" >
                                        <section id="loginx">
                                            <asp:LoginView ID="LoginView1" runat="server" ViewStateMode="Disabled">
                                                <AnonymousTemplate>
                                                    <ul class="sessionnav" id="Ul1" runat="server" style="margin-bottom: 10px; padding-top: 4px; padding-bottom: 6px;">
                                                        <li><a id="A4" runat="server" onclick="doNothing();" title="If checked, the site will attempt to display pages by re-using the same window. If you are using a mobile device this will reduce the number of pages opened.">Reuse Windows</a><asp:CheckBox ID="ReuseWindow1" runat="server" onclick="doClick(this)" AutoPostBack="true" ToolTip="If checked, the site will attempt to display pages by re-using the same window. If you are using a mobile device this will reduce the number of pages opened by Broker+." /></li>
                                                        <li><a id="A3" runat="server" href="~/Account/Login.aspx">Log in</a></li>
                                                        <li><a id="A2" runat="server" href="~/Account/Register.aspx" >Register</a></li>
                                                    </ul>
                                                </AnonymousTemplate>
                                                <LoggedInTemplate>
                                                    <ul class="sessionnav" id="Ul2" runat="server" style="margin-bottom: 10px; padding-top: 4px; padding-bottom: 6px;">
                                                        <li><a id="A5" runat="server" onclick="doNothing();" title="If checked, the site will attempt to display pages by re-using the same window. If you are using a mobile device this will reduce the number of pages opened by Broker+.">Reuse Windows</a><asp:CheckBox ID="ReuseWindow2" runat="server" onclick="doClick(this)" AutoPostBack="true" ToolTip="If checked, the site will attempt to display pages by re-using the same window. If you are using a mobile device this will reduce the number of pages opened by Broker+." /></li>
                                                        <li><a id="A1" runat="server" class="username" href="~/Account/MyAccount.aspx" title="Manage your account"><asp:LoginName ID="LoginName1" runat="server" CssClass="username" /></a></li>
                                                        <li><asp:LoginStatus ID="LoginStatus1" runat="server" CssClass="username" LogoutAction="Redirect" LogoutText="Log off" LogoutPageUrl="~/logout.aspx" /></li>
                                                    </ul>
                                                    <div class="clear"></div>
                                                </LoggedInTemplate>
                                            </asp:LoginView>
                                        </section>
                                    </div>
                                </div>
                            <!-- navbar end -->
                            <!-- logo start -->
                            <div class="row10" style="height: 90px; " >
                                <div class="sixteen columns header-bg" style="height: 90px;">
                                    <div style="float: left; ">
                                        <img src="" />
                                    </div>
                                    <div class="zippy" style="margin-left: 0px; float: left; height: 90px; text-align: center; overflow: no-display;">
                                        <div class="slogan-line">
                                            <telerik:RadTicker AutoStart="true" runat="server" ID="Radticker1" loop="false" DataSourceID="SqlDataSource1" DataTextField="ScrollerText"  >
                                            </telerik:RadTicker>
                                        </div>
                                    </div>
                                    <div class="findus" style="float: right; height: 90px; text-align: center; background-color: black; ">
                                        <div class="header-icons-and-phone">
                                            <div class="header-icons-links">
                                                <img alt="youtube icon" src="<%=Page.ResolveUrl("~/Icons/youtube.png")%>" height="24" width="24" />

                                                <img alt="facebook icon" src="<%=Page.ResolveUrl("~/Icons/facebook.png")%>" height="24" width="24" />

                                                <img alt="twitter icon" src="<%=Page.ResolveUrl("~/Icons/twitter.png")%>" height="24" width="24" />
                                            </div>
                                            <div class="header-icons-links2">
                                                <asp:Label Text="Have questions?" ID="Label2" runat="server" Font-Bold="true" Font-Italic="true" Font-Names="Times New Roman" Font-Size="16px" ForeColor="#11bcf0"></asp:Label>
                                                <br />
                                                <asp:Label Text="" ID="Label3" runat="server" Font-Bold="true" Font-Size="16px" ForeColor="white"></asp:Label>
                                            </div>
                                        </div>
                                        <div class="clear"></div>
                                    </div>
                                    <div class="clear"></div>
                                </div>
                            </div>
                            <!-- logo end -->

                            <!-- menu start -->
                            <div class="row10" style="width: 100%; background-color: black; " >
                                <div class="sixteen columns " >
                                    <div class="menubar" >
                                        <THDi:BrokerPlusMenu ID="BrokerPlusMenu1" runat="server" MenuToLoad="Broker+ Office" ProfileName="Office" />
                                    </div>
                                </div>
                            </div>
                            <!-- menu end -->
                            <asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">

                            </asp:ContentPlaceHolder>
                        </div>



the code behind file source code that I can distribute:

        protected void Page_Init(object sender, System.EventArgs e)
        {
            if (!Page.IsPostBack)
            {
                sType = Request["T"];
                string sUserFormRules = Convert.ToString(Session["UserBrokerPlusFormsRules"]);
                string sRule = "";

                this.RadGrid1.AllowFilteringByColumn = true;
                GridHyperLinkColumn hypercolumn = null;
                GridBoundColumn boundcolumn = null;

                hypercolumn = new GridHyperLinkColumn();
                hypercolumn.HeaderText = "Edit";
                hypercolumn.UniqueName = "Agent";
                hypercolumn.Text = "<img border=\"0\" alt=\"View\" src=\"../Icons/pencil_16.png\" />";
                hypercolumn.DataNavigateUrlFields = new string[] { "Agent" };
                hypercolumn.DataNavigateUrlFormatString = "OfcAgentEdit.aspx?M=Y&T=" + sType + "K=" + "{" + "0" + "}";
                hypercolumn.AllowFiltering = false;
                hypercolumn.HeaderStyle.Width = Unit.Pixel(50);
                hypercolumn.Exportable = false;
                this.RadGrid1.MasterTableView.Columns.Add(hypercolumn);

                hypercolumn = new GridHyperLinkColumn();
                hypercolumn.HeaderText = "Email";
                hypercolumn.UniqueName = "SendAgentMail";
                hypercolumn.Text = "<img border=\"0\" alt=\"View\" src=\"../Icons/mailIcon.gif\" />";
                hypercolumn.DataNavigateUrlFields = new string[] { "AgentEmail" };
                hypercolumn.DataNavigateUrlFormatString = "mailto:" + "{" + "0" + "}";
                hypercolumn.HeaderStyle.Width = Unit.Pixel(30);
                hypercolumn.AllowFiltering = false;
                hypercolumn.Exportable = false;
                this.RadGrid1.MasterTableView.Columns.Add(hypercolumn);

                boundcolumn = new GridBoundColumn();
                boundcolumn.UniqueName = "AgentID";
                boundcolumn.DataField = "AgentID";
                boundcolumn.HeaderText = "ID";
                boundcolumn.FilterControlWidth = Unit.Pixel(50);
                boundcolumn.HeaderStyle.CssClass = "mediumgridcol";
                boundcolumn.ItemStyle.CssClass = "mediumgridcol";
                boundcolumn.FooterStyle.CssClass = "mediumgridcol";
                boundcolumn.Visible = true;
                boundcolumn.Exportable = true;
                this.RadGrid1.MasterTableView.Columns.Add(boundcolumn);

                boundcolumn = new GridBoundColumn();
                boundcolumn.UniqueName = "AgentFullName";
                boundcolumn.DataField = "AgentFullName";
                boundcolumn.HeaderText = "Name";
                boundcolumn.HeaderStyle.Width = Unit.Pixel(240);
                boundcolumn.FilterControlWidth = Unit.Pixel(100);
                boundcolumn.Visible = true;
                this.RadGrid1.MasterTableView.Columns.Add(boundcolumn);

                boundcolumn = new GridBoundColumn();
                boundcolumn.UniqueName = "AgentCellular";
                boundcolumn.DataField = "AgentCellular";
                boundcolumn.HeaderText = "Cellular";
                boundcolumn.FilterControlWidth = Unit.Pixel(60);
                boundcolumn.HeaderStyle.CssClass = "smallgridcol";
                boundcolumn.ItemStyle.CssClass = "smallgridcol";
                boundcolumn.FooterStyle.CssClass = "smallgridcol";
                boundcolumn.Visible = true;
                boundcolumn.Visible = true;
                this.RadGrid1.MasterTableView.Columns.Add(boundcolumn);

                boundcolumn = new GridBoundColumn();
                boundcolumn.UniqueName = "AgentEmail";
                boundcolumn.DataField = "AgentEmail";
                boundcolumn.HeaderText = "Email";
                boundcolumn.HeaderStyle.CssClass = "smallgridcol";
                boundcolumn.ItemStyle.CssClass = "smallgridcol";
                boundcolumn.FooterStyle.CssClass = "smallgridcol";
                boundcolumn.Visible = true;
                boundcolumn.Visible = true;
                boundcolumn.FilterControlWidth = Unit.Pixel(100);
                this.RadGrid1.MasterTableView.Columns.Add(boundcolumn);

                RadGrid1.AllowPaging = Convert.ToBoolean(Session["ShowListsWithPaging"]);
                RadGrid1.PageSize = 20;
            }
            else
            {
                sType = Request["T"];
            }
        }

        protected void RadGrid1_ItemDataBound(object sender, Telerik.Web.UI.GridItemEventArgs e)
        {
            //  this code is used to make filter columns visible/invisible as the grid grows/shrinks
            if (e.Item is GridFilteringItem)
            {
                GridFilteringItem Filter = (GridFilteringItem)e.Item;
                Filter["AgentID"].CssClass = "mediumgridcol";
                Filter["AgentCellular"].CssClass = "smallgridcol";
                Filter["AgentEmail"].CssClass = "smallgridcol";
            }
        }

        protected void CreateNew_Click(object sender, EventArgs e)
        {
            Response.Redirect("OfcAgentEdit.aspx?M=N&K=&T=" + sType);
        }

        public DataTable GetDataTable()
        {
            String ConnString = System.Configuration.ConfigurationManager.ConnectionStrings["BrokerPlus"].ConnectionString;
            DataTable dt = new DataTable();
            //string sStatusNeeded = "";
            DateTime dt1 = Convert.ToDateTime("9/1/2014");
            using (SqlConnection sqlcon = new SqlConnection(ConfigurationManager.ConnectionStrings["BrokerPlus"].ConnectionString))
            {
                using (SqlCommand cmd = new SqlCommand("[Agents_GetAllByAgent_ExpiringLicenses2]", sqlcon))
                {
                    cmd.CommandType = CommandType.StoredProcedure;
                    cmd.Parameters.Add(new SqlParameter("@Account", Convert.ToInt32(Session["UserAccount"])));
                    cmd.Parameters.Add(new SqlParameter("@Agent_Expire", dt1));
                    using (SqlDataAdapter da = new SqlDataAdapter(cmd))
                    {
                        da.Fill(dt);
                        return dt;
                    }
                }
            }
        }

        protected void RadGrid1_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
        {
            RadGrid1.DataSource = GetDataTable();
        }
    }
}


The sql code to the stored procedure being used:

CREATE PROCEDURE [dbo].[Agents_GetAllByAgent_ExpiringLicenses2]
(
    @Account            int,
    @Agent_Expire        date
)
AS
SELECT Agent, AgentEmail, AgentID, AgentFullName, AgentCellular, AgentLicenseExpires, Agent_Account FROM Agents
WHERE AgentLicenseExpires < @Agent_Expire AND Agent_Account = @Account



 the master file source that I can distribute


1 Answer, 1 is accepted

Sort by
0
Viktor Tachev
Telerik team
answered on 03 Sep 2014, 12:13 PM
Hi Lynn,

I have examined the provided code and noticed that the RadGrid is defined in the markup and its columns are generated in the Page_Init event. Also the RadGrid is created only on when the page is initially loaded.

When you are creating the RadGrid structure programmatically you need to follow one of the approaches described in this article.

If you would like to keep the RadGrid declared in the markup, then use Page_Load to define its structure like illustrated in the Dynamically Defining the Structure of a Statically-declared Grid section of the article above.

In case you would like to use Page_Init to create the RadGrid you need to recreate the structure on every page initialization. The approach is described in the Creating a RadGrid on Page_Init section.

Try using one of the approaches above and you should be able to achieve the functionality you are looking for.

Regards,
Viktor Tachev
Telerik
