Export to Excel Custom Header Issue

2 Answers 114 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Rob asked on 03 Jun 2013, 05:52 PM

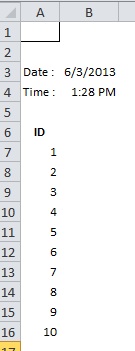

I'm using v2011.3.1305.40, VS2010, & IE8. I'm attempting to export a custom header above the grid. Everything is working fine except cell A1 had a border around it by default. Please see attatchment. I was able to reproduce the issue at the simplest level. How can I make this not happen?

<%@ Page Language="VB" AutoEventWireup="false" CodeFile="TestGrid.aspx.vb" Inherits="Pages_Business_TestGrid" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title></title>

</head>

<body>

<form id="form1" runat="server">

<div>

<telerik:RadScriptManager ID="RadScriptManager1" runat="server">

</telerik:RadScriptManager>

<telerik:RadGrid ID="dg" runat="server" AutoGenerateColumns="false">

<MasterTableView>

<Columns>

<telerik:GridBoundColumn HeaderText="ID" DataField="ID"></telerik:GridBoundColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

<asp:Button ID="btnExport" runat="server" Text="Export" />

</div>

</form>

</body>

</html>

Partial Class Pages_Business_TestGrid

Inherits System.Web.UI.Page

Protected Sub dg_NeedDataSource(sender As Object, e As Telerik.Web.UI.GridNeedDataSourceEventArgs) Handles dg.NeedDataSource

Dim dt As New DataTable

Dim r As DataRow

Dim col As New DataColumn("ID", GetType(Integer))

dt.Columns.Add(col)

For i As Integer = 1 To 10

r = dt.NewRow

r("ID") = i

dt.Rows.Add(r)

Next

dg.DataSource = dt

End Sub

Protected Sub btnExport_Click(sender As Object, e As System.EventArgs) Handles btnExport.Click

Dim sb As New StringBuilder

sb.Append("<table>")

sb.Append("<tr>")

sb.Append("<table >")

sb.Append("<tr>")

sb.Append("<td>Date : </td>")

sb.Append("<td>")

sb.Append(Now.ToShortDateString)

sb.Append("</td>")

sb.Append("</tr>")

sb.Append("<tr>")

sb.Append("<td>Time : </td>")

sb.Append("<td>")

sb.Append(Now.ToShortTimeString)

sb.Append("</td>")

sb.Append("</tr>")

sb.Append("<tr>")

sb.Append("<td> </td>")

sb.Append("<td></td>")

sb.Append("</tr>")

dg.MasterTableView.Caption = sb.ToString

dg.ExportSettings.OpenInNewWindow = True

dg.ExportSettings.ExportOnlyData = True

dg.ExportSettings.IgnorePaging = True

dg.ExportSettings.Excel.Format = Telerik.Web.UI.GridExcelExportFormat.Html

dg.MasterTableView.ExportToExcel()

sb.Append("</table>")

sb.Append("</tr>")

sb.Append("</table>")

End Sub

End Class

2 Answers, 1 is accepted

Accepted

answered on 06 Jun 2013, 10:07 AM

Hi Rob,

You could remove the border by setting GridLine to None. Check out the following code snippet.

<telerik:RadGrid ID="dg" runat="server" AutoGenerateColumns="false" OnGridExporting="dg_GridExporting" GridLines="None">

<MasterTableView>

<Columns>

<telerik:GridBoundColumn HeaderText="ID" DataField="ID"></telerik:GridBoundColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

Regards,
Kostadin
