Hello,
I try to use a hierarchical grid using entity-data. Viewing, updating both entities works fine but inserting doesn´t work. I get "Object reference not set to an instance of an object." in " System.Web.UI.WebControls.EntityDataSourceView.ConvertWCProperty(IDictionary values, Dictionary`2 convertedValues, List`1 visitedProperties, PropertyDescriptor pd, ParameterCollection referenceParameters, Dictionary`2& exceptions)"
Here is my code:
cs-file:
The last bit with insertParameters is only a guess from my side, seeing others having problems with this using sql but it might not apply to entitys?

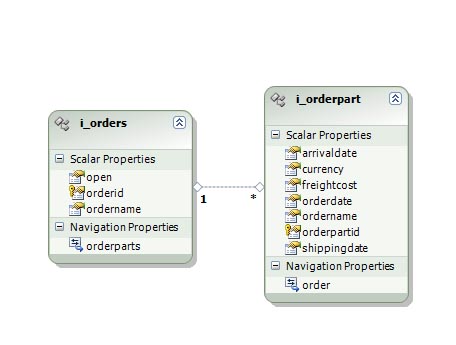

I also attached a screenshot of the relevant entities.
Im using asp.net 3.5 sp1 with a mysql-adapter.
Telerik.Web.UI 2009.3.1314.35
I try to use a hierarchical grid using entity-data. Viewing, updating both entities works fine but inserting doesn´t work. I get "Object reference not set to an instance of an object." in " System.Web.UI.WebControls.EntityDataSourceView.ConvertWCProperty(IDictionary values, Dictionary`2 convertedValues, List`1 visitedProperties, PropertyDescriptor pd, ParameterCollection referenceParameters, Dictionary`2& exceptions)"
Here is my code:
| <asp:EntityDataSource ID="ordersDS" runat="server" ConnectionString="name=oscEnties" |
| DefaultContainerName="oscEnties" EnableDelete="False" EnableInsert="True" EnableUpdate="True" |
| EntitySetName="i_orders" Include="orderparts"> |
| </asp:EntityDataSource> |
| <asp:EntityDataSource ID="orderpartDS" runat="server" ConnectionString="name=oscEnties" |
| DefaultContainerName="oscEnties" EnableDelete="false" EnableInsert="True" EnableUpdate="True" |
| EntitySetName="i_orderpart" Where="it.order.orderid==@orderid"> |
| <InsertParameters> |
| <asp:Parameter Name="order.orderid" Type="Int32" /> |
| </InsertParameters> |
| </asp:EntityDataSource> |
| <telerik:RadGrid ID="ordersGrid" runat="server" ShowGroupPanel="True" GridLines="None" |
| OnItemCommand="ordersGrid_ItemCommand" AllowAutomaticInserts="True" DataSourceID="ordersDS" |
| AllowFilteringByColumn="True" AllowAutomaticUpdates="true" AllowSorting="True" |
| AutoGenerateColumns="False"> |
| <HeaderContextMenu> |
| <CollapseAnimation Type="OutQuint" Duration="200"></CollapseAnimation> |
| </HeaderContextMenu> |
| <ClientSettings AllowKeyboardNavigation="true" EnablePostBackOnRowClick="true"> |
| <Selecting AllowRowSelect="true" /> |
| </ClientSettings> |
| <MasterTableView GroupLoadMode="client" AutoGenerateColumns="False" DataKeyNames="orderid" |
| CommandItemDisplay="Top"> |
| <DetailTables> |
| <telerik:GridTableView DataSourceID="orderpartDS" DataKeyNames="orderpartid" AutoGenerateColumns="false" |
| AllowAutomaticUpdates="true" AllowAutomaticInserts="true" CommandItemDisplay="Top" |
| AllowFilteringByColumn="false"> |
| <ParentTableRelation> |
| <telerik:GridRelationFields DetailKeyField="orderid" MasterKeyField="orderid" /> |
| </ParentTableRelation> |
| <NoRecordsTemplate> |
| Hittade inga orderdelar |
| </NoRecordsTemplate> |
| <Columns> |
| <telerik:GridBoundColumn DataField="orderpartid" DataType="System.Int32" HeaderText="ID" |
| ReadOnly="True" SortExpression="orderpartid" UniqueName="orderpartid"> |
| </telerik:GridBoundColumn> |
| <telerik:GridBoundColumn DataField="ordername" HeaderText="Namn" SortExpression="ordername" DataType="System.String" |
| UniqueName="ordername"> |
| </telerik:GridBoundColumn> |
| <telerik:GridDateTimeColumn DataField="orderdate" DataType="System.DateTime" DataFormatString="{0:d}" |
| HeaderText="Ankommande" UniqueName="orderdate" SortExpression="orderdate"> |
| </telerik:GridDateTimeColumn> |
| <telerik:GridDateTimeColumn DataField="shippingdate" DataType="System.DateTime" DataFormatString="{0:d}" |
| HeaderText="Ankommande" UniqueName="shippingdate" SortExpression="shippingdate"> |
| </telerik:GridDateTimeColumn> |
| <telerik:GridDateTimeColumn DataField="arrivaldate" DataType="System.DateTime" DataFormatString="{0:d}" |
| HeaderText="Ankommande" UniqueName="arrivaldate" SortExpression="arrivaldate"> |
| </telerik:GridDateTimeColumn> |
| <telerik:GridNumericColumn DataField="currency" DataType="System.Double" HeaderText="Växelkurs" |
| UniqueName="currency" SortExpression="currency" NumericType="Number" KeepNotRoundedValue="true"> |
| </telerik:GridNumericColumn> |
| <telerik:GridNumericColumn DataField="freightcost" DataType="System.Double" HeaderText="Fraktkostnad" |
| UniqueName="freightcost" SortExpression="freightcost" NumericType="Number" KeepNotRoundedValue="true"> |
| </telerik:GridNumericColumn> |
| <telerik:GridNumericColumn DataField="order.orderid" DataType="System.Int32" HeaderText="OrderId" |
| UniqueName="order.orderid" SortExpression="order.orderid" Visible="true" ReadOnly="false"> |
| </telerik:GridNumericColumn> |
| <telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn"> |
| <ItemStyle CssClass="MyImageButton" /> |
| </telerik:GridEditCommandColumn> |
| </Columns> |
| <EditFormSettings ColumnNumber="2" CaptionFormatString="Ändra orderdel"> |
| <FormTableItemStyle Wrap="False"></FormTableItemStyle> |
| <FormCaptionStyle CssClass="EditFormHeader"></FormCaptionStyle> |
| <FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="1" BackColor="White" |
| Width="100%" /> |
| <FormTableStyle CellSpacing="0" CellPadding="2" Height="60px" BackColor="White" /> |
| <FormTableAlternatingItemStyle Wrap="False"></FormTableAlternatingItemStyle> |
| <EditColumn ButtonType="ImageButton" InsertText="Lägg till" UpdateText="Uppdatera" |
| UniqueName="EditCommandColumn1" CancelText="Avbryt"> |
| </EditColumn> |
| </EditFormSettings> |
| </telerik:GridTableView> |
| </DetailTables> |
| <NoRecordsTemplate> |
| Hittade inga ordrar |
| </NoRecordsTemplate> |
| <Columns> |
| <telerik:GridBoundColumn DataField="orderid" DataType="System.Int32" HeaderText="ID" |
| ReadOnly="True" SortExpression="orderid" UniqueName="orderid"> |
| </telerik:GridBoundColumn> |
| <telerik:GridCheckBoxColumn DataField="open" DataType="System.SByte" HeaderText="Öppen för best." |
| SortExpression="open" UniqueName="open"> |
| </telerik:GridCheckBoxColumn> |
| <telerik:GridBoundColumn DataField="ordername" HeaderText="Namn" SortExpression="ordername" |
| UniqueName="ordername"> |
| </telerik:GridBoundColumn> |
| <telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn"> |
| <ItemStyle CssClass="MyImageButton" /> |
| </telerik:GridEditCommandColumn> |
| </Columns> |
| <EditFormSettings ColumnNumber="2" CaptionDataField="ordername" CaptionFormatString="Ändra på order: {0}"> |
| <FormTableItemStyle Wrap="False"></FormTableItemStyle> |
| <FormCaptionStyle CssClass="EditFormHeader"></FormCaptionStyle> |
| <FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="1" BackColor="White" |
| Width="100%" /> |
| <FormTableStyle CellSpacing="0" CellPadding="2" Height="60px" BackColor="White" /> |
| <FormTableAlternatingItemStyle Wrap="False"></FormTableAlternatingItemStyle> |
| <EditColumn ButtonType="ImageButton" InsertText="Lägg till" UpdateText="Uppdatera" |
| UniqueName="EditCommandColumn1" CancelText="Avbryt"> |
| </EditColumn> |
| </EditFormSettings> |
| </MasterTableView> |
| <ClientSettings AllowDragToGroup="True"> |
| </ClientSettings> |
| <FilterMenu> |
| <CollapseAnimation Type="OutQuint" Duration="200"></CollapseAnimation> |
| </FilterMenu> |
| </telerik:RadGrid> |
cs-file:
| public partial class Orders : System.Web.UI.Page |
| { |
| protected void Page_Load(object sender, EventArgs e) |
| { |
| if (!IsPostBack) |
| orderpartDS.WhereParameters.Add(new SessionParameter() { Name = "orderid", SessionField = "orderid", Type = TypeCode.Int32 }); |
| } |
| protected void ordersGrid_ItemCommand(object source, Telerik.Web.UI.GridCommandEventArgs e) |
| { |
| if (e.CommandName == RadGrid.PerformInsertCommandName) |
| { |
| if (e.Item.OwnerTableView.DataSourceID == "orderpartDS") |
| { |
| GridDataItem parentItem = (GridDataItem)(e.Item.OwnerTableView.ParentItem); |
| if (parentItem != null) |
| { |
| string orderId = parentItem.OwnerTableView.DataKeyValues[parentItem.ItemIndex]["orderid"].ToString(); |
| orderpartDS.InsertParameters["order.orderid"].DefaultValue = orderId; |
| } |
| } |
| } |
| } |
| } |
The last bit with insertParameters is only a guess from my side, seeing others having problems with this using sql but it might not apply to entitys?
I also attached a screenshot of the relevant entities.
Im using asp.net 3.5 sp1 with a mysql-adapter.
Telerik.Web.UI 2009.3.1314.35
1 Answer, 1 is accepted
0
Hello,
Try replacing RadGrid with a standard ASP.NET GridView control and see if you are able to insert successfully. The issues seems like the inserted object is not successfully created.
Also note the EntityDataSource control for the detail tables:
Specifically, shouldn't the insert parameter's name be orderid only? You are using this parameter in the Where part of the LINQ query as @orderid.
Kind regards,
Veli
the Telerik team
