Custom 2-Level Subtotals in RadGrid Header & Footer

2 Answers 147 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Matthew asked on 20 Apr 2010, 08:54 PM



Hello All,

I've been tasked with an interesting scenario from our business unit, and tried to address it with RadGrid, but after the work I've done so far, I'm not sure I'm going to walk away with a solution that is going to work.

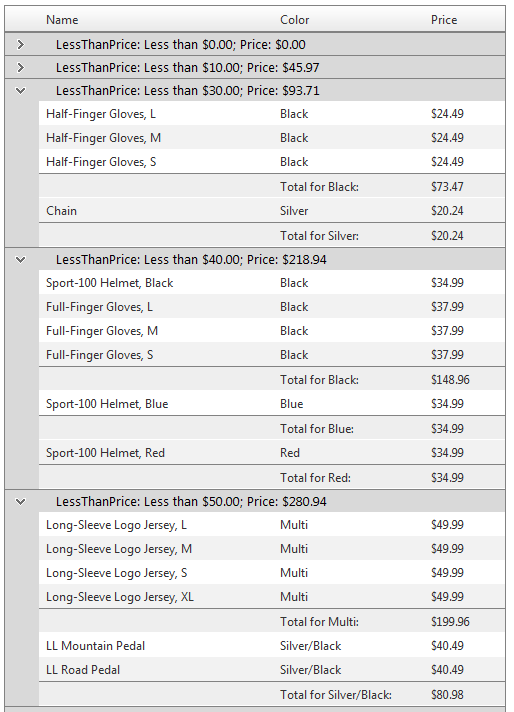

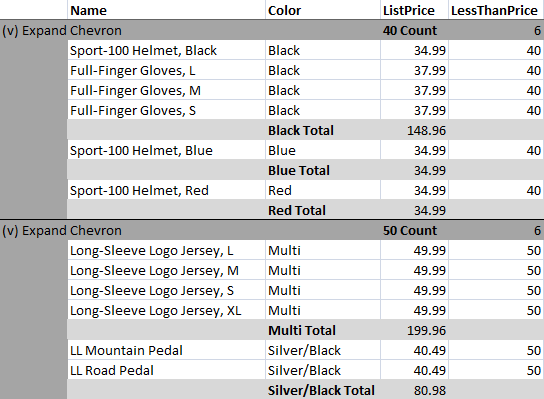

Basically, I need to make grid that looks like an excel mockup. Attached is the mockup.png file, and I've been testing with AdventureWorks, so this isn't the real data, but a pretty close idea. I need to subtotal and expand/collapse at one level, and display the subtotal above the details, and then inside of those details subtotal (but without expand/collapse), and display those subtotals below their details. I don't need subtotals both above and below for either levels. I started working on it, and the attached wip.png is a screenshot of what I have now, but the problem I have is the group header row is not really part of the table, it is inside of a <p> tag inside of a <td> with colspan=4.

I have the complete code, too, but I'm not allowed to upload .zip files. I'll put the code in another reply, but if you'd like the complete code to play with, please email me (mhowell at newportgroup dot com) or PM(?) me.

Thanks,

Matthew

2 Answers, 1 is accepted

answered on 20 Apr 2010, 08:55 PM


            <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

            <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

            <html xmlns="http://www.w3.org/1999/xhtml">

            <head id="Head1" runat="server">

                <title>Subtotal Radgrid Test</title>

                <script type="text/javascript" src="http://code.jquery.com/jquery-latest.js"></script>

                <script type="text/javascript">

                </script>

            </head>

            <body>

                <form id="form1" runat="server">

                <div>

                    <asp:ScriptManager ID="ScriptManager1" runat="server" />

                    <rad:RadGrid ID="rg" runat="server" DataSourceID="ds" Width="500px" OnItemDataBound="rg_ItemDataBound" OnPreRender="rg_PreRender"

                      GridLines="None" OnColumnCreated="rg_ColumnCreated">

                      <HeaderContextMenu EnableAutoScroll="True"></HeaderContextMenu>

                      <MasterTableView AutoGenerateColumns="false" ShowGroupFooter="true">

                        <Columns>

                          <rad:GridBoundColumn DataField="Name" HeaderText="Name" />

                          <rad:GridBoundColumn DataField="Color" HeaderText="Color" Aggregate="Max" FooterAggregateFormatString="Total for {0}:" />

                          <rad:GridBoundColumn DataField="ListPrice" HeaderText="Price" DataFormatString="{0:c}" Aggregate="Sum" FooterAggregateFormatString="{0:c}" />

                        </Columns>

                        <GroupByExpressions>

                          <rad:GridGroupByExpression>

                            <GroupByFields>

                              <rad:GridGroupByField FieldName="LessThanPrice" />

                            </GroupByFields>

                            <SelectFields>

                              <rad:GridGroupByField FieldName="LessThanPrice" FormatString="Less than {0:c}" />

                              <rad:GridGroupByField FieldName="ListPrice" FieldAlias="Price" FormatString="{0:c}" Aggregate="Sum" />

                            </SelectFields>

                          </rad:GridGroupByExpression>

                          <rad:GridGroupByExpression>

                            <GroupByFields>

                              <rad:GridGroupByField FieldName="Color" />

                            </GroupByFields>

                            <SelectFields>

                              <rad:GridGroupByField FieldName="Color" FormatString="{0}" FieldAlias="RemoveThisGroupbyRow" />

                              <rad:GridGroupByField FieldName="ListPrice" FieldAlias="Price" FormatString="{0:c}" Aggregate="Sum" />

                            </SelectFields>

                          </rad:GridGroupByExpression>

                        </GroupByExpressions>

                      </MasterTableView>

                    </rad:RadGrid>

                    <asp:SqlDataSource ID="ds" runat="server"

                      ConnectionString='<%$ ConnectionStrings:AdventureWorks %>'

                      ProviderName="System.Data.SqlClient"

                      SelectCommand="select ProductID, Name, Color, ListPrice, LessThanPrice = ceiling(ListPrice / 10) * 10 from Production.Product where Color is not null order by Color, ListPrice, Name"></asp:SqlDataSource>

                </div>

                <rad:RadAjaxManager runat="server">

                  <AjaxSettings>

                    <rad:AjaxSetting AjaxControlID="rg">

                      <UpdatedControls>

                        <rad:AjaxUpdatedControl ControlID="rg" />

                      </UpdatedControls>

                    </rad:AjaxSetting>

                  </AjaxSettings>

                </rad:RadAjaxManager>

                </form>

            </body>

            </html>


            using System.Diagnostics;

            using System;

            using System.Collections.Generic;

            using System.Linq;

            using System.Web;

            using System.Web.UI;

            using System.Web.UI.WebControls;

            using Telerik.Web.UI;

            public partial class _Default : System.Web.UI.Page

            {

                protected void Page_Load(object sender, EventArgs e)

                {

                }

                protected void rg_PreRender(object sender, EventArgs e)

                {

                    var rows = rg.MasterTableView.GetItems(GridItemType.GroupFooter, GridItemType.GroupHeader);

                    for(var i = 0; i < rows.Count(); i++)

                    {

                        if(rows[i] is GridGroupHeaderItem)

                        {

                            var hdr = rows[i] as GridGroupHeaderItem;

                            //Debug.WriteLine(hdr.DataCell.Text);

                            if(hdr.DataCell.Text.Contains("RemoveThisGroupbyRow:"))

                            {

                                hdr.Visible = false;

                                continue;

                            }

                            hdr.DataCell.ColumnSpan = 1;

                            //hdr.DataCell.Text = hdr.DataCell.Text.Replace("Color: ", "").Replace("Price: ", "");

                        }

                        else if(rows[i] is GridGroupFooterItem && rows[i - 1] is GridGroupFooterItem)

                        {

                            rows[i].Visible = false;

                        }

                    }

                }

                protected void rg_ItemDataBound(object sender, GridItemEventArgs e) { }

                bool swap = true;

                protected void rg_ColumnCreated(object sender, GridColumnCreatedEventArgs e)

                {

                    if(e.Column is GridGroupSplitterColumn)

                    {

                        e.Column.Visible = swap;

                        swap = !swap;

                    }

                }

            }

answered on 23 Apr 2010, 12:31 PM

Hello Matthew,

I have reviewed the code which you post. To achieve the desired functionality you could try hiding the expand collapse images for the inner groups. Please check out the following online documentation article which explains how to hide the expand/collapse images:
http://www.telerik.com/help/aspnet-ajax/grdpreventgroupsexpansion.html

I hope this helps.

All the best,
Radoslav
the Telerik team
