Chart X-Axis ToOADate Date Label Issue

Thread is closed for posting
2 posts, 0 answers
  1. Sir
    Sir avatar
    31 posts
    Member since:
    Mar 2008

    Posted 02 Nov 2009 Link to this post

    Hi, I have telerik ver 2009.02.0817.20

    I have an area chart where my x-axis labels are dates using .ToOADate().
    I found the code example on your site and it was working at one point early on.
    I can't figure out for the life of me now what is wrong.

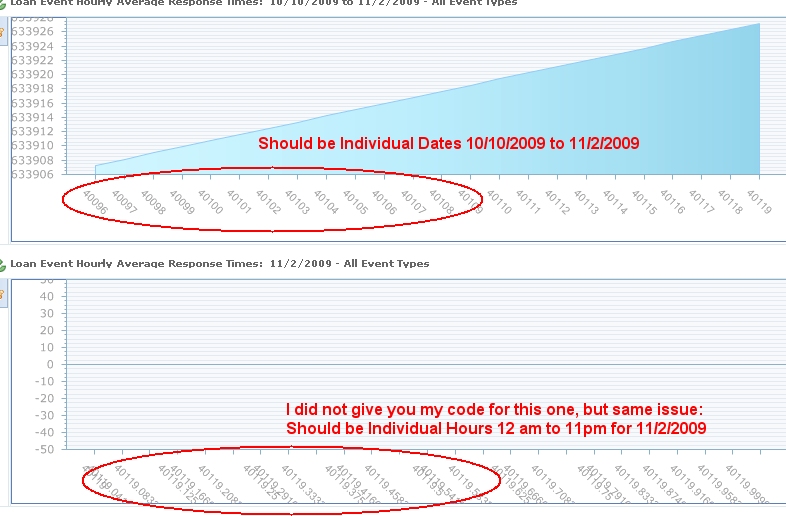

    No matter what I do, the x-axis date lables are all showing up as the .ToOADate():  i.e. the label is "40096" instead of "10/10/2009".
    The chartDay.Date, this.ChartStartDate, & this.ChartEndDate are all valid dates and all set to exactly midnight.
    Here is my code, where am I going wrong????

    <RadControl:RadChart ID="RadChartControl" SeriesOrientation="Vertical" runat="server" Skin="Web20" Height="225px" Width="777px" Visible="true" ChartTitle-Visible="false"></RadControl:RadChart>

            private void PlotChart(System.Collections.Generic.List<LoanEventResponseTimeChartItem> chartData)
            {
                this.RadChartControl.Appearance.TextQuality = Telerik.Charting.Styles.TextQuality.AntiAlias;
                this.RadChartControl.ChartTitle.TextBlock.Text = "Loan Event Average Response Time by Day";
                this.RadChartControl.Series.Clear();

                if (chartData != null && chartData.Count > 0)
                {
                    Telerik.Charting.ChartSeries chartSeries = new Telerik.Charting.ChartSeries();
                    chartSeries.Name = "Loan Event Average Response Time";
                    chartSeries.Type = Telerik.Charting.ChartSeriesType.Area;
                    chartSeries.Appearance.ShowLabels = true;
                    chartSeries.Appearance.TextAppearance.TextProperties.Color = System.Drawing.Color.Black;
                    chartSeries.Appearance.PointMark.Visible = true;// To enable tooltips
                    this.RadChartControl.Series.Add(chartSeries);

                    foreach (LoanEventResponseTimeChartItem chartDay in chartData)
                    {
                        Telerik.Charting.ChartSeriesItem chartItem = new Telerik.Charting.ChartSeriesItem();
                        chartItem.XValue = chartDay.Date.ToOADate();
                        chartItem.YValue = chartDay.AvgResponseTimeSecs;
                        if (chartDay.AvgResponseTimeSecs > 0)
                        {
                            chartItem.Label.TextBlock.Appearance.AutoTextWrap = Telerik.Charting.Styles.AutoTextWrap.True;
                            chartItem.Label.TextBlock.Appearance.Position.Auto = true;
                            chartItem.Label.TextBlock.Text = chartDay.AvgResponseTimeSecs.ToString();
                            // Tooltip
                            chartItem.PointAppearance.Visible = true;// To enable tooltips
                            chartItem.PointAppearance.Border.Width = (float)1;
                            chartItem.PointAppearance.Border.Color = System.Drawing.Color.White;
                            chartItem.PointAppearance.Dimensions.AutoSize = false;
                            chartItem.ActiveRegion.Tooltip = "Average of " + chartDay.TotalLoanEventCount.ToString("#,###,####,###") + " Loan Events";
                        }
                        else
                        {
                            chartItem.Label.TextBlock.Text = "";
                            chartItem.Label.Visible = false;
                            chartItem.PointAppearance.Visible = false;
                        }
                        this.RadChartControl.Series[0].Items.Add(chartItem);
                    }

                    this.RadChartControl.Series[0].Appearance.LegendDisplayMode = Telerik.Charting.ChartSeriesLegendDisplayMode.Nothing;

                    const double dayStep = 1;
                    //const double hourStep = 1 / 24.0;
                    //const double minuteStep = hourStep / 60;
                    //const double fiveMinuteStep = minuteStep * 5;
                    this.RadChartControl.PlotArea.XAxis.AddRange(this.ChartStartDate.ToOADate(), this.ChartEndDate.ToOADate(), dayStep);

                }

                this.RadChartControl.PlotArea.XAxis.LayoutMode = Telerik.Charting.Styles.ChartAxisLayoutMode.Inside;
                this.RadChartControl.PlotArea.XAxis.AutoScale = false;
                this.RadChartControl.PlotArea.XAxis.IsZeroBased = false;
                this.RadChartControl.PlotArea.XAxis.Appearance.ValueFormat = Telerik.Charting.Styles.ChartValueFormat.ShortDate;
                this.RadChartControl.PlotArea.XAxis.Appearance.CustomFormat = "MM/dd/yyyy";
                this.RadChartControl.PlotArea.XAxis.Appearance.MajorGridLines.Visible = false;
                this.RadChartControl.PlotArea.XAxis.Appearance.LabelAppearance.RotationAngle = (float)45;
                this.RadChartControl.PlotArea.XAxis.Appearance.LabelAppearance.Position.AlignedPosition = Telerik.Charting.Styles.AlignedPositions.Top;
                this.RadChartControl.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Font = new System.Drawing.Font("Ariel", 8);
                this.RadChartControl.PlotArea.YAxis.IsZeroBased = false;

                this.RadChartControl.PlotArea.EmptySeriesMessage.TextBlock.Text = "No data is available for the given criteria";
                this.RadChartControl.PlotArea.Appearance.Dimensions.Margins.Top = Telerik.Charting.Styles.Unit.Pixel(0);
                this.RadChartControl.PlotArea.Appearance.Dimensions.Margins.Bottom = Telerik.Charting.Styles.Unit.Pixel(68);
                this.RadChartControl.PlotArea.Appearance.Dimensions.Margins.Left = Telerik.Charting.Styles.Unit.Pixel(55);
                this.RadChartControl.PlotArea.Appearance.Dimensions.Margins.Right = Telerik.Charting.Styles.Unit.Pixel(0);

                if (chartData == null || chartData.Count < 1)
                {
                    this.RadChartControl.PlotArea.YAxis.AutoScale = false;
                    this.RadChartControl.PlotArea.YAxis.MaxValue = 0;
                    this.RadChartControl.PlotArea.YAxis.MinValue = 0;
                }

                this.RadChartControl.DataBind();
            }



    Thanks,
    Ray
  2. Sir
    Sir avatar
    31 posts
    Member since:
    Mar 2008

    Posted 02 Nov 2009 Link to this post

    Issue Solved...
    For some reason, the order of the code lines makes a big difference.
    I moved the .AddRange command under the other PlotArea.XAxis commands, and all is well in the world.


                this.RadChartControl.PlotArea.XAxis.LayoutMode = Telerik.Charting.Styles.ChartAxisLayoutMode.Inside;
                this.RadChartControl.PlotArea.XAxis.AutoScale = false;
                this.RadChartControl.PlotArea.XAxis.IsZeroBased = false;
                this.RadChartControl.PlotArea.XAxis.Appearance.ValueFormat = Telerik.Charting.Styles.ChartValueFormat.ShortDate;
                this.RadChartControl.PlotArea.XAxis.Appearance.CustomFormat = "MM/dd/yyyy";
                this.RadChartControl.PlotArea.XAxis.Appearance.MajorGridLines.Visible = false;
                this.RadChartControl.PlotArea.XAxis.Appearance.LabelAppearance.RotationAngle = (float)45;
                this.RadChartControl.PlotArea.XAxis.Appearance.LabelAppearance.Position.AlignedPosition = Telerik.Charting.Styles.AlignedPositions.Top;
                this.RadChartControl.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Font = new System.Drawing.Font("Ariel", 8);
                this.RadChartControl.PlotArea.YAxis.IsZeroBased = false;

                const double dayStep = 1;
                //const double hourStep = 1 / 24.0;
                //const double minuteStep = hourStep / 60;
                //const double fiveMinuteStep = minuteStep * 5;
                this.RadChartControl.PlotArea.XAxis.AddRange(this.ChartStartDate.ToOADate(), this.ChartEndDate.ToOADate(), dayStep);





    The above now works.
