Can you label each Chart Column Series in a group?

1 Answer 32 Views
Charts
Mark
Top achievements
Rank 3
Iron
Iron
Iron
Mark asked on 16 Oct 2023, 04:24 PM

With ChartCategoryAxes, is it possible to label the group and then each column within it? For example, https://blazorrepl.telerik.com/QdbaPgbU17q4epgO21:

  1. We have tried to use ChartCategoryAxisLabel templates. But without HTML to enable styling it is difficult to space the elements evenly.
  2. We have tried adding an invisible series at the top of the stacked series with a label, but on dark backgrounds the invisible series is revealed on hover. We can use brittle CSS selectors to hide the hover but ideally our label would be beneath the chart, within the axis.



1 Answer, 1 is accepted

Sort by
1
Accepted
Dimo
Telerik team
answered on 19 Oct 2023, 09:05 AM

Hi Mark,

Your approach is smart and it's suitable for a fixed-width Chart.

I can suggest you a series label template for the topmost series in each category:

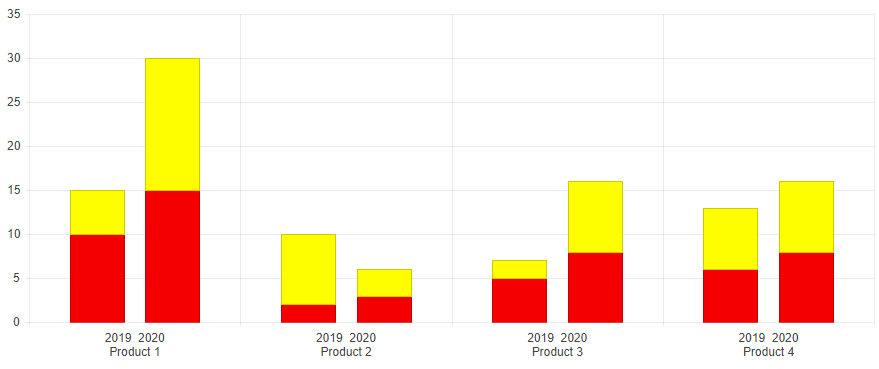

Blazor Chart stacked series with a category label

Regards,
Dimo
Progress Telerik

Stay tuned by visiting our public roadmap and feedback portal pages! Or perhaps, if you are new to our Telerik family, check out our getting started resources!
Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 19 Oct 2023, 12:18 PM

Hi Dimo,

Thank you for your answer. Do you know if there is any way I can get the group and column labels into the axis while being correctly aligned? I am able to achieve this in Kendo UI in this dojo Untitled | Kendo UI Dojo (telerik.com)

Thanks again

Mark

Dimo
Telerik team
commented on 19 Oct 2023, 01:00 PM | edited

(Post updated)

I revisited the Chart parameters and tags, and it turns out the Kendo UI jQuery approach is possible with the Blazor Chart too.

        <ChartSeries Type="ChartSeriesType.Column"
                     Data="@Series1Data"
                     Field="@nameof(SalesData.Revenue)"
                     CategoryField="@nameof(SalesData.TimePeriod)"
                     Name="Product 1">
            <ChartSeriesLabels Visible="true"
                               Rotation="-90" Position="@ChartSeriesLabelsPosition.InsideBase"
                               Template="seriesLabelTemplate">
                <ChartSeriesLabelsMargin Top="110" />
            </ChartSeriesLabels>
        </ChartSeries>



        <ChartCategoryAxis Type="@ChartCategoryAxisType.Date">
            <ChartCategoryAxisLabels>
                <ChartCategoryAxisLabelsMargin Top="110" />
            </ChartCategoryAxisLabels>
        </ChartCategoryAxis>
