Bug - EditMode Background Sprite Image

[McMins]

Hi,
why does this so called "sprite" images in EditMode? I think that this is a bug.
See picture attached. Is still fixed? What can I do now?

I use this Telerik version 2013.1.417.40.

Thanks,
Mins.

[Eyup]

Hello Mins,

I am afraid we are not able to replicate the issue locally. Can you replicate this behavior with any of our demos?
http://demos.telerik.com/aspnet-ajax/grid/examples/generalfeatures/columntypes/defaultcs.aspx

Please provide us the exact steps to reproduce the issue or open a support ticket send us a sample runnable application demonstrating the erratic behavior. Thus, we will be able to further analyze the problem and provide a proper solution.

Regards,
Eyup
Telerik

[McMins]

Hello,

thanks for the reply.

I tested your demo, with long text. As was ok.
But I tested with me, after I inserted the Skin Metro with CssClass in RadGrid Tag, the error was gone. But if I remove CssClass, the problem is then to see. When the error I then all my scripts / CSS disabled, jquery too. No change.

So here is my approach (I have made ​​new again in shorter version, and still found the error):
- New project in Visual Studio 2012 opened with your C # RadControls Web App (Default Skin left) - NET 4
- No added scripts / CSS etc
- RadGrid inserted, here is the code:

<telerik:RadGrid ID="RadGrid1" runat="server" DataSourceID="SqlDataSource1" Skin="Metro" PageSize="7" AllowSorting="True" AllowPaging="True" AllowAutomaticInserts="True" AllowAutomaticDeletes="True" AllowAutomaticUpdates="True" AutoGenerateColumns="False" OnItemDataBound="RadGrid1_ItemDataBound" CellSpacing="0" GridLines="None">
    <PagerStyle Mode="NextPrevAndNumeric" />
    <ClientSettings>
        <Selecting AllowRowSelect="True" />
    </ClientSettings>
    <MasterTableView HeaderStyle-CssClass="rgrid_header" CommandItemDisplay="Top" InsertItemDisplay="Top" DataSourceID="SqlDataSource1" DataKeyNames="contentId">
        <RowIndicatorColumn Visible="True" FilterControlAltText="Filter RowIndicator column"></RowIndicatorColumn>
        <ExpandCollapseColumn Visible="True" FilterControlAltText="Filter ExpandColumn column"></ExpandCollapseColumn>
        <Columns>
            <telerik:GridEditCommandColumn ButtonType="ImageButton" ItemStyle-VerticalAlign="Top" HeaderStyle-Width="10px" />
            <telerik:GridBoundColumn DataField="contentId" UniqueName="contentId" HeaderText="ID" HeaderStyle-Font-Bold="true" DataType="System.Int32" SortExpression="contentId" ReadOnly="True" ItemStyle-VerticalAlign="Top" Visible="false">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn DataField="content" FilterControlAltText="Filter content column" HeaderText="Inhalt" HeaderStyle-Font-Bold="true" SortExpression="content" UniqueName="content" ItemStyle-VerticalAlign="Top">
            </telerik:GridBoundColumn>
        </Columns>
        <EditFormSettings EditFormType="Template">
            <EditColumn UniqueName="EditCommandColumn1" FilterControlAltText="Filter EditCommandColumn1 column"></EditColumn>
            <FormTemplate>
                <div class="column1"><p>Inhalt</p></div>
                <div class="column2">
                    <telerik:RadEditor ID="RadEditor1" runat="server" Content='<%# Bind("content") %>' Skin="Metro" Width="100%">
                        <Content></Content>
                        <Tools>
                            <telerik:EditorToolGroup Tag="MainToolbar">
                                <telerik:EditorTool Name="Cut"></telerik:EditorTool>
                                <telerik:EditorTool Name="Copy"></telerik:EditorTool>
                                <telerik:EditorTool Name="Paste" ShortCut="CTRL+V"></telerik:EditorTool>
                                <telerik:EditorTool Name="PasteStrip" />
                            </telerik:EditorToolGroup>
                        </Tools>
                    </telerik:RadEditor><br />
                </div>
                <div class="clear"></div>
                <div class="column1"> </div>
                <div class="column2">
                    <div class="editbuttons">
                        <telerik:RadButton ID="btn_update" runat="server" OnClick="btn_update_Click" Text='<%# (Container is GridEditFormInsertItem) ? "Insert" : "Update" %>' CommandName='<%# (Container is GridEditFormInsertItem) ? "PerformInsert" : "Update" %>' ></telerik:RadButton>
                        <telerik:RadButton ID="btn_cancel" Text="Cancel" runat="server" CausesValidation="False" CommandName="Cancel" ></telerik:RadButton>
                    </div>
                </div>
                <div class="clear"></div>
            </FormTemplate>
        </EditFormSettings>
        <CommandItemSettings AddNewRecordText="Neuer Eintrag" AddNewRecordImageUrl="/edit/img/add.png" RefreshImageUrl="/edit/img/refresh.png"></CommandItemSettings>
        <PagerStyle PageSizeControlType="RadComboBox"></PagerStyle>
    </MasterTableView>
    <FilterMenu EnableImageSprites="False"></FilterMenu>
</telerik:RadGrid>

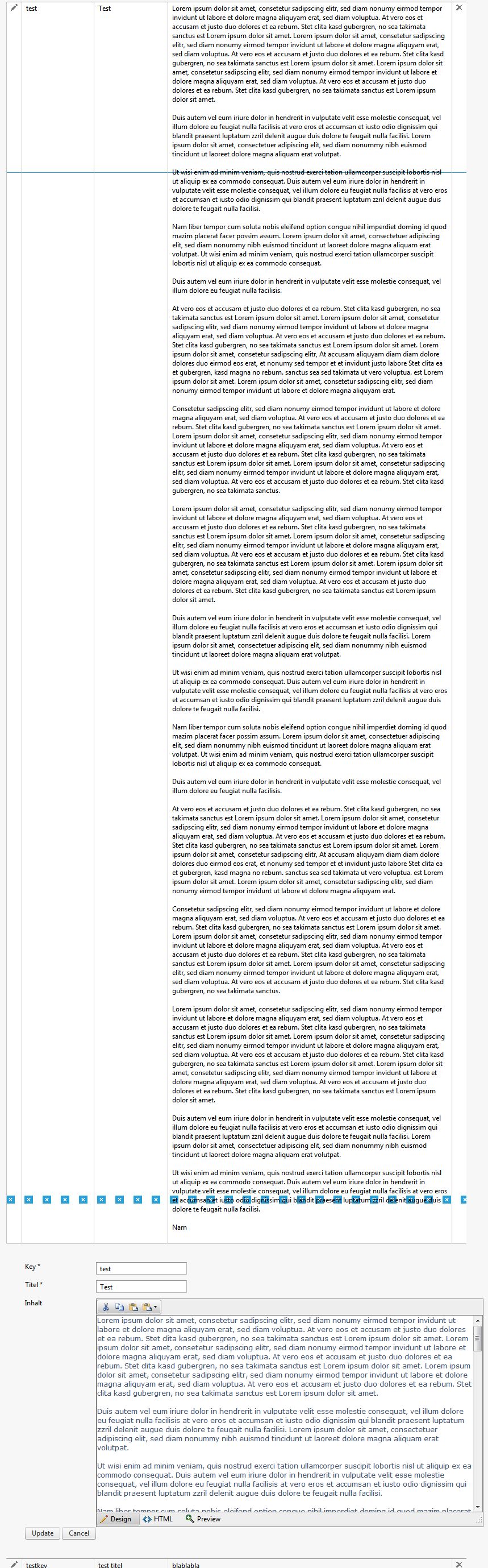

And the error is seen again with long text(!) in EditMode or a SelectedRow. See JPG, the blue graphics of Metro.

But in my version with proper CssClass in the RadGrid Tag is not to see the error. I would like to have changed with the addition of my skin metro and CSS style, so as Skin Metro with CssClass. Therefore that's ok like that.

In the short version: Without skin and without CssClass worked. But once the skin is in, the error is there.

[Eyup]

Hi Mins,

I have prepared a sample RadGrid web site using the provided code snippet  to test the described behavior. Please run the attached application and instruct us the exact steps to reproduce the issue.

Regards,
Eyup
Telerik
