hi,
i am using the 3 level grid i wrote same code for all three as follows
add button is appear in the first level and third level in the second level that is missing and one more thing is i didn't get get any image here why?
Thanks & Regards,
M.Koteswara Rao
i am using the 3 level grid i wrote same code for all three as follows
CommandItemDisplay="Bottom"
<MasterTableView EditMode="InPlace" Name="product" DataKeyNames="PKProductID" CommandItemDisplay="Bottom">
<Columns>
<telerik:GridBoundColumn DataField="PKProductID" HeaderText="PKProductID" Visible="false" />
<telerik:GridEditCommandColumn UniqueName="Edit" ButtonType="ImageButton" CancelText="cancel"
EditText="edit" InsertText="insert"></telerik:GridEditCommandColumn>
<telerik:GridTemplateColumn HeaderText="Style #">
<ItemTemplate>
<%#Eval("SourceID")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtProSourceId" Text='<%# Eval("SourceID") %>' runat="server"></asp:TextBox>
<asp:RequiredFieldValidator ID="rfvProductSourceId" ControlToValidate="txtProSourceId" ErrorMessage="Cannot be empty" Text="*"
runat="server" Display="Dynamic" ></asp:RequiredFieldValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="Title">
<ItemTemplate>
<%#Eval("Language1Title")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtProTitle" Text='<%#Eval("Language1Title") %>' runat="server"></asp:TextBox>
<asp:RequiredFieldValidator ID="rfvProductTitle" ControlToValidate="txtProTitle" ErrorMessage="Cannot be empty" Text="*"
runat="server" Display="Dynamic" ></asp:RequiredFieldValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridBoundColumn DataField="Language1SubTitle" HeaderText="Sub Title" />
<telerik:GridDropDownColumn HeaderText="Clearance" UniqueName="StyleClearance" DataSourceID="SourceCheck"
ListTextField="Text" ListValueField="Text" SortExpression="Text" DataField="ClearanceItem" />
<telerik:GridDropDownColumn HeaderText="Active" UniqueName="StyleActive" DataSourceID="SourceCheck"
ListTextField="Text" ListValueField="Text" SortExpression="Text" DataField="Active" />
<telerik:GridTemplateColumn HeaderText="Price">
<ItemTemplate>
<%#Eval("Price")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtProPrice" Text='<%#Eval("Price") %>' runat="server"></asp:TextBox>
<asp:RegularExpressionValidator ID="regprice" runat="server" ControlToValidate="txtProPrice" Display="Dynamic" ValidationExpression="^([0-9]*)(\.[0-9]{2})?$"></asp:RegularExpressionValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="SalePrice">
<ItemTemplate>
<%#Eval("SalePrice")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtProSalePrice" Text='<%#Eval("SalePrice") %>' runat="server"></asp:TextBox>
<asp:RegularExpressionValidator ID="regSalePrice" runat="server" Display="Dynamic" ControlToValidate="txtProSalePrice" ValidationExpression="^([0-9]*)(\.[0-9]{2})?$"></asp:RegularExpressionValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
</Columns>
<DetailTables>
<telerik:GridTableView DataMember="colors" CommandItemDisplay="Bottom" HierarchyLoadMode="ServerOnDemand" Name="Colors"
DataKeyNames="pkproductid" Width="300px" >
<Columns>
<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn1">
<HeaderStyle Width="80px" />
<ItemStyle CssClass="MyImageButton" />
</telerik:GridEditCommandColumn>
<telerik:GridBoundColumn DataField="PKProductid" HeaderText="PKProductid" Visible="false" />
<telerik:GridTemplateColumn HeaderText="Title">
<ItemTemplate>
<%#Eval("Language1Title")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtColorTitle" runat="server" Text='<%#Eval("Language1Title") %>' ReadOnly="true"></asp:TextBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="Color Id">
<ItemTemplate>
<%#Eval("SourceID")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtColorId" runat="server" Text='<%#Eval("SourceID") %>' ReadOnly="true"></asp:TextBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="colors">
<ItemTemplate>
<%#Eval("ScaleLanguage1Name") %></ItemTemplate>
<EditItemTemplate>
<asp:DropDownList ID="ddlColors" runat="server" DataSourceID="SourceColors" DataValueField="PKGroupScaleItemID" DataTextField="ScaleLanguage1Name"
OnSelectedIndexChanged="ddltemp_SelectedIndexChanged" SelectedValue='<%#Eval("PKGroupScaleItemID") %>' AutoPostBack="true"></asp:DropDownList>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridDropDownColumn HeaderText="Active" UniqueName="ColorActive" DataSourceID="SourceCheck"
ListTextField="Text" ListValueField="Text" SortExpression="Text" DataField="Active" />
</Columns>
<DetailTables>
<telerik:GridTableView DataMember="Sizes" HierarchyLoadMode="ServerOnDemand" Width="300px" CommandItemDisplay="Bottom"
Name="sizes" DataKeyNames="pkproductid">
<Columns>
<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn1">
<HeaderStyle Width="80px" />
<ItemStyle CssClass="MyImageButton" />
</telerik:GridEditCommandColumn>
<telerik:GridBoundColumn DataField="PKProductid" HeaderText="PKProductid" Visible="false" />
<telerik:GridTemplateColumn HeaderText="Title">
<ItemTemplate>
<%#Eval("Language1Title")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtSizeTitle" runat="server" Text='<%#Eval("Language1Title") %>' ReadOnly="true"></asp:TextBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="Size Id">
<ItemTemplate>
<%#Eval("SourceID")%>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtSizeId" runat="server" Text='<%#Eval("SourceID") %>' ReadOnly="true"></asp:TextBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<%-- <telerik:GridTemplateColumn HeaderText="Sizes">
<ItemTemplate>
<%#Eval("ScaleLanguage1Name") %></ItemTemplate>
<EditItemTemplate>
<asp:DropDownList ID="ddlSizes" runat="server" DataSourceID="SourceSizes" DataValueField="PKGroupScaleItemID" DataTextField="ScaleLanguage1Name"
OnSelectedIndexChanged="ddltemp_SelectedIndexChanged" SelectedValue='<%#Eval("PKGroupScaleItemID") %>' AutoPostBack="true"></asp:DropDownList>
</EditItemTemplate>
</telerik:GridTemplateColumn>--%>
<telerik:GridDropDownColumn UniqueName="SizeSourceID" DataSourceID="SourceSizes"
HeaderText="Sizes" DataField="pkgroupscaleitemid" SortExpression="ScaleLanguage1Name" ListTextField="ScaleLanguage1Name"
ListValueField="pkgroupscaleitemid" />
<telerik:GridTemplateColumn HeaderText="Back Order Days">
<ItemTemplate>
<%#Eval("BackOrderDays") %>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtbackorderdays" runat="server" Text='<%#Eval("BackOrderDays")%>'></asp:TextBox>
<asp:RegularExpressionValidator ID="regValidatordays" runat="server" ControlToValidate="txtbackorderdays" ValidationExpression="\d+" Text="*" ErrorMessage="Enter only numerics" Display="Dynamic" ></asp:RegularExpressionValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="SKU">
<ItemTemplate>
<%#Eval("SKU") %>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtsku" runat="server" Text='<%#Eval("SKU")%>'></asp:TextBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="QuantityAvailable">
<ItemTemplate>
<%#Eval("QuantityAvailable") %>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox ID="txtQuantityAvailable" runat="server" Text='<%#Eval("QuantityAvailable")%>'></asp:TextBox>
<asp:RegularExpressionValidator ID="regValidatorqty" runat="server" ControlToValidate="txtQuantityAvailable" ValidationExpression="\d+" Text="*" ErrorMessage="Enter only numerics" Display="Dynamic"></asp:RegularExpressionValidator>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridDropDownColumn HeaderText="Active" UniqueName="SizeActive" DataSourceID="SourceCheck"
ListTextField="Text" ListValueField="Text" SortExpression="Text" DataField="Active" />
</Columns>
</telerik:GridTableView>
</DetailTables>
</telerik:GridTableView>
</DetailTables> Thanks & Regards,
M.Koteswara Rao
2 Answers, 1 is accepted
0
Shinu
Top achievements
Rank 2
Rank 2
answered on 25 Jan 2012, 08:12 AM
Hello,

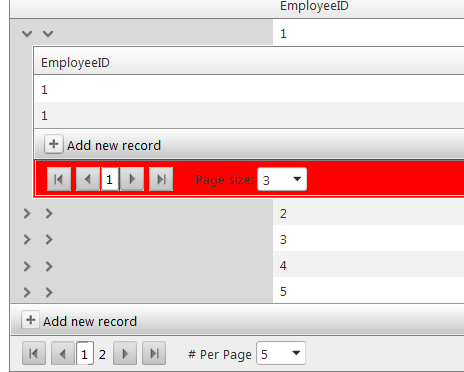

I tried the same scenario which worked as expected in my end. Attached is the screen shot. Also take a look at the following demo.
Grid / Update/Insert/Delete in Hierarchy.
-Shinu.
I tried the same scenario which worked as expected in my end. Attached is the screen shot. Also take a look at the following demo.
Grid / Update/Insert/Delete in Hierarchy.
-Shinu.
0
koteswararao
Top achievements
Rank 1
Rank 1
answered on 25 Jan 2012, 08:32 AM
can you please see in my image in the demo all are working /appearing fine

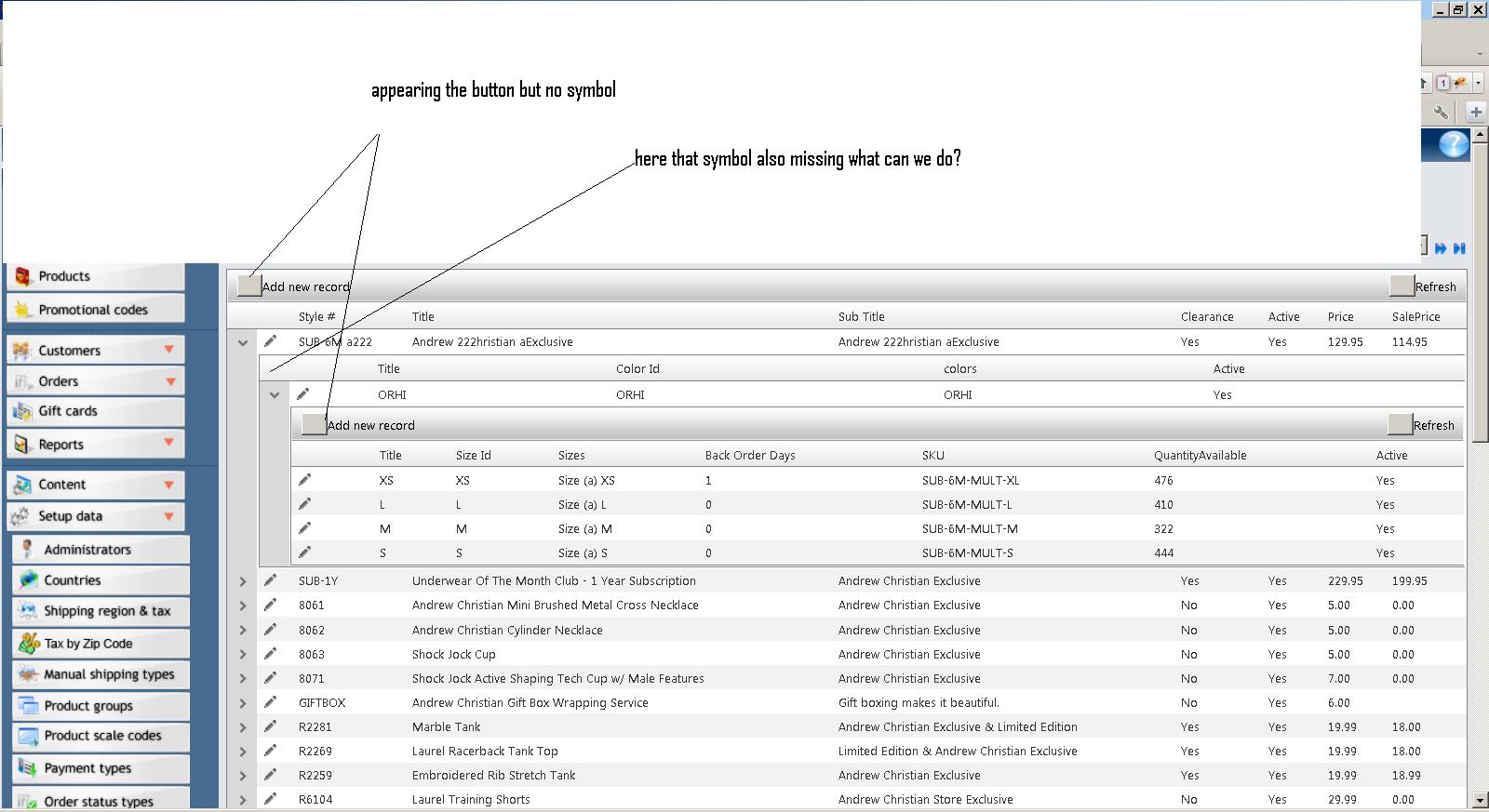

please look at the image addsymbol.jpg
one more problem is

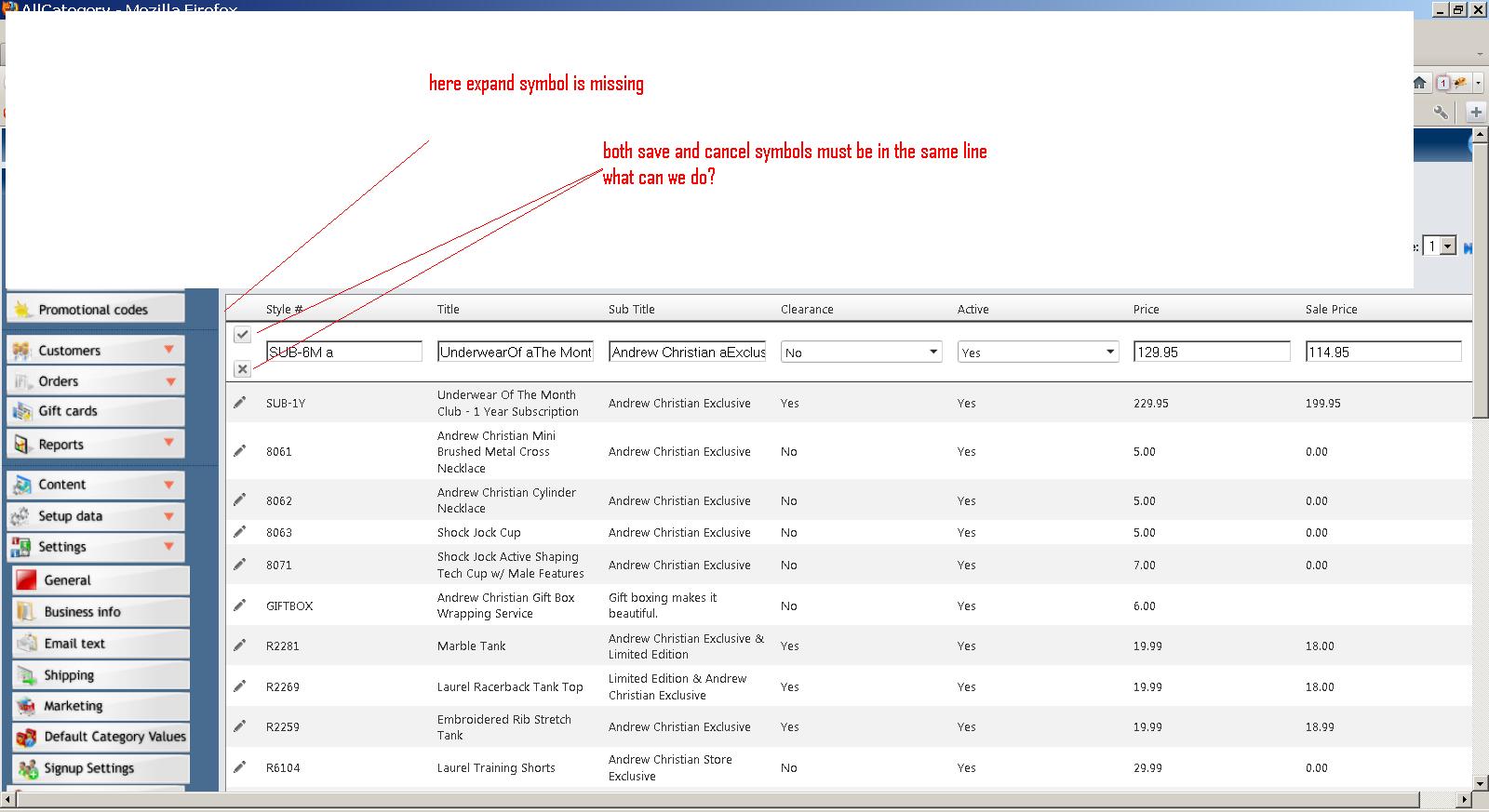

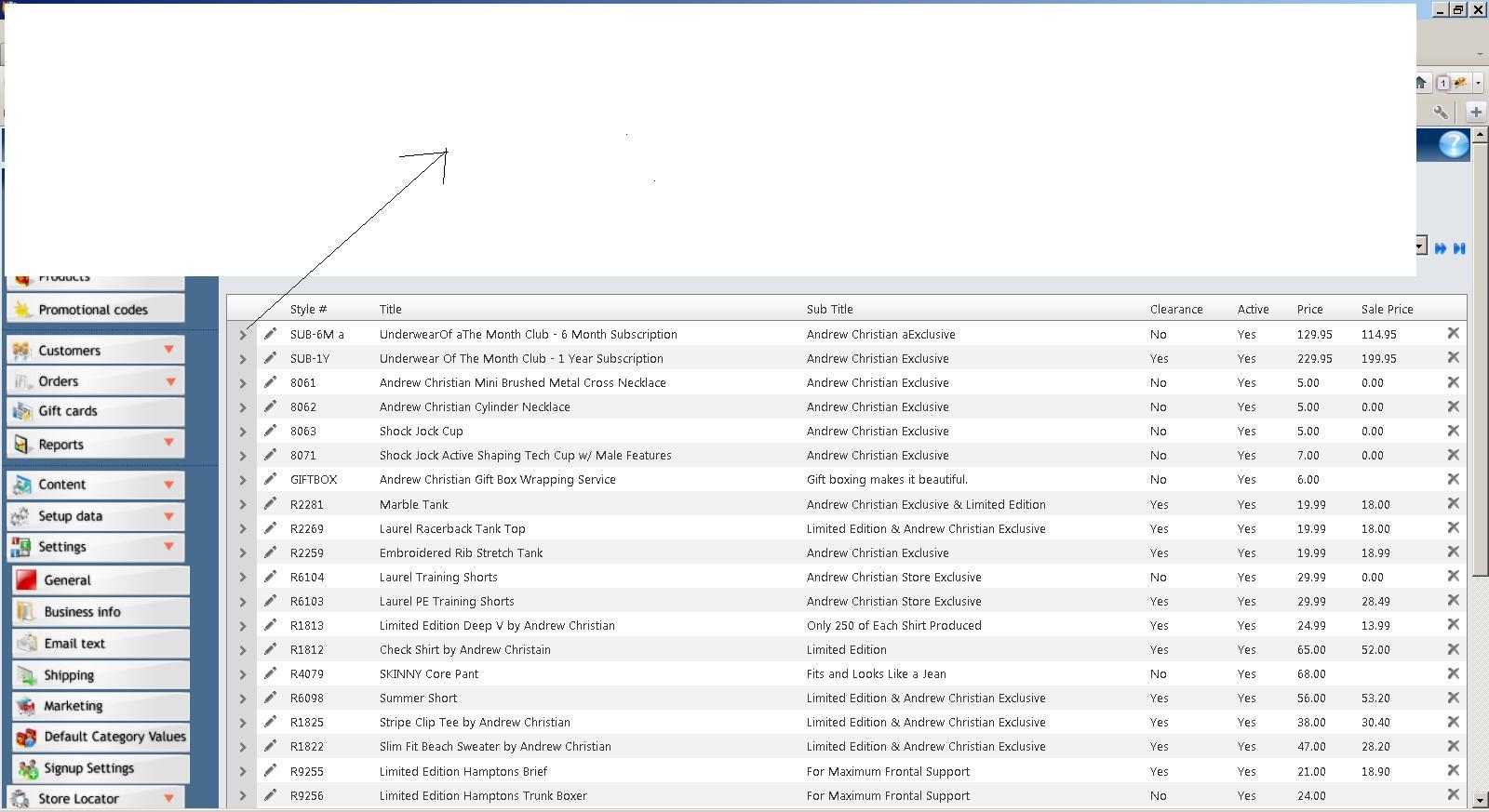

in the root grid when i click on edit the expand symbol is missing please see the next tow images
Note: i am using the latest q3 version
when i see the code in fire bu the rendered cod is have lot of difference with the demo code
my addnew button code in firebug:
<input type="submit" class="btnstyle" title="Add new record" id="ctl00_CP_dgProduct_ctl00_ctl02_ctl00_AddNewRecordButton" value=" " name="ctl00$CP$dgProduct$ctl00$ctl02$ctl00$AddNewRecordButton">
Demo addnew button code in firebug:
<input type="button" class="rgAdd" title="Add new record" id="RadGrid1_ctl00_ctl02_ctl00_AddNewRecordButton" onclick="javascript:__doPostBack('RadGrid1$ctl00$ctl02$ctl00$AddNewRecordButton','')" value=" " name="RadGrid1$ctl00$ctl02$ctl00$AddNewRecordButton">
please look at the image addsymbol.jpg
one more problem is
in the root grid when i click on edit the expand symbol is missing please see the next tow images
Note: i am using the latest q3 version
when i see the code in fire bu the rendered cod is have lot of difference with the demo code
my addnew button code in firebug:
<input type="submit" class="btnstyle" title="Add new record" id="ctl00_CP_dgProduct_ctl00_ctl02_ctl00_AddNewRecordButton" value=" " name="ctl00$CP$dgProduct$ctl00$ctl02$ctl00$AddNewRecordButton">
Demo addnew button code in firebug:
<input type="button" class="rgAdd" title="Add new record" id="RadGrid1_ctl00_ctl02_ctl00_AddNewRecordButton" onclick="javascript:__doPostBack('RadGrid1$ctl00$ctl02$ctl00$AddNewRecordButton','')" value=" " name="RadGrid1$ctl00$ctl02$ctl00$AddNewRecordButton">
