add auto number to radgrid

[CoolAggie]

How do i add autonumber to the RadGrid.
i can do in grid like this
<asp:TemplateField SortExpression="displayedname">
                    <HeaderTemplate>
                        Rec #</HeaderTemplate>
                    <ItemTemplate>
                        <%#Container.DataItemIndex+1%></ItemTemplate>
                </asp:TemplateField>

how do i add in radgrid.

[Shinu]

Hi Rajiv,

Go through the following help artcie which explains how to add row numbers in RadGrid.
Adding row numbers

Thanks
Shinu

[CoolAggie]

I am still not able to get the row number
 this is my code

Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load


        Dim clientid As Integer, programid As Integer
        clientid = Request.QueryString("clientid")
        programid = Request.QueryString("programid")

        Dim ReportingDataContext As New ReportingDataContext()


        radgrid1.DataSource = ReportingDataContext.spGetReports_new(programid, clientid)
        radgrid1.DataBind()
 End Sub

 Protected Sub RadGrid1_ItemDataBound(ByVal sender As Object, ByVal e As Telerik.Web.UI.GridItemEventArgs) Handles radgrid1.ItemDataBound
        Dim ReportingDataContext As New ReportingDataContext()
        If (TypeOf e.Item Is Telerik.Web.UI.GridDataItem AndAlso e.Item.OwnerTableView.DataSourceID = "ReportingDataContext") Then
            Dim lbl As Label = CType(e.Item.FindControl("numberLabel"), Label)
            lbl.Text = e.Item.ItemIndex + 1
        End If
    End Sub


  <telerik:RadGrid ID="radgrid1" runat="server" AllowPaging="True" AllowSorting="True"
            GridLines="None" AutoGenerateColumns="False">
            <MasterTableView>
                <RowIndicatorColumn>
                    <HeaderStyle Width="20px"></HeaderStyle>
                </RowIndicatorColumn>
                <ExpandCollapseColumn>
                    <HeaderStyle Width="20px"></HeaderStyle>
                </ExpandCollapseColumn>
                <Columns>
                    <telerik:GridTemplateColumn UniqueName="TemplateColumn" HeaderText="Rec">
                    <ItemTemplate>
                        <asp:Label ID="numberLabel" runat="server"  Width="30px" />
                    </ItemTemplate>

                    </telerik:GridTemplateColumn>
                    <telerik:GridBoundColumn DataField="displayedname" HeaderText="Report Name" SortExpression="displayedname"
                        UniqueName="displayedname" />
                    <telerik:GridHyperLinkColumn DataNavigateUrlFields="reportid" SortExpression="displayedname" HeaderText="Report Name"
                        UniqueName="displayedname" DataNavigateUrlFormatString="ShowGetReports.aspx?reportid={0}"
                        DataTextField="displayedname">
                    </telerik:GridHyperLinkColumn>

                    <telerik:GridImageColumn DataImageUrlFields="ReportType"
                        HeaderText="Report Type" ImageHeight="" ImageWidth="" UniqueName="column">
                    </telerik:GridImageColumn>



                </Columns>
            </MasterTableView>
        </telerik:RadGrid>

[Shinu]

Hi Rajeev,

I can't see that you attached the ItemDataBound event to RadGrid in ASPX. Add the ItemDataBound event to RadGrid and put a breakpoint to see whether the event fires correctly or not.

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" DataSourceID="SqlDataSource1" OnItemDataBound="RadGrid1_ItemDataBound">
      <MasterTableView DataSourceID="SqlDataSource1">
            <Columns>
              . . .
            </Columns>
      </MasterTableView>
</telerik:RadGrid>

-Shinu.

[CoolAggie]

I think i figured it out thanks

[Babuji]

Hi,

Try this one

<telerik:RadGrid ID="gvRequests" runat="server" DataSourceID="ObjectDataSource1" PageSize="20" GridLines="None" AllowPaging="True" AllowSorting="True" OnItemDataBound="gvRequests_ItemDataBound">
       <MasterTableView AutoGenerateColumns="False" DataSourceID="ObjectDataSource1" DataKeyNames="Id"
                                        CommandItemDisplay="TopAndBottom" OverrideDataSourceControlSorting="true">
               <Columns>
                    <telerik:GridTemplateColumn HeaderText="Sl.No" UniqueName="SlNo">
                                                <ItemTemplate>
                                                    <asp:Label ID="lblSn" runat="server" />
                                                </ItemTemplate>
                                            </telerik:GridTemplateColumn>
              </columns>
        </MasterTableView>
  </telerik:RadGrid>

Code Behind

protected void gvRequests_ItemDataBound(object sender, Telerik.Web.UI.GridItemEventArgs e)
    {
        if (e.Item is GridDataItem){
             int strIndex = gvRequests.MasterTableView.CurrentPageIndex;

            Label lbl = e.Item.FindControl("lblSn") as Label;
            lbl.Text = Convert.ToString((strIndex * gvRequests.PageCount) +  e.Item.ItemIndex + 1);
       }
}

[surya murthy]

 In Design..

            <telerik:RadGrid ID="RadGridViewJobs" runat="server" AllowPaging="True"
                        AllowSorting="true" PageSize="5" AutoGenerateColumns="False" GridLines="None" Width="640px" PagerStyle-AlwaysVisible="true"
                        Skin="Vista">

                        <MasterTableView  DataKeyNames ="C001_JRSId,C077_JRSType" >

                        <Columns>
                          <telerik:GridTemplateColumn HeaderText="Sl.No" UniqueName="SlNo">
                                                <ItemTemplate>
                                                    <asp:Label ID="lblSn" runat="server" />
                                                </ItemTemplate>
                                            </telerik:GridTemplateColumn>

                                   <telerik:GridTemplateColumn HeaderText="Category"  SortExpression = "C002_PositionTypeName" HeaderStyle-Width="160px">
                                    <ItemTemplate  >
                                     <asp:Label ID="lblverticalName" runat="server" Text='<%# Eval("C002_PositionTypeName") %>'></asp:Label>
                                    </ItemTemplate>
                                  <ItemStyle Width="160px"/>
                                </telerik:GridTemplateColumn>
                            </Columns>
                        </MasterTableView>
                        </telerik:RadGrid>

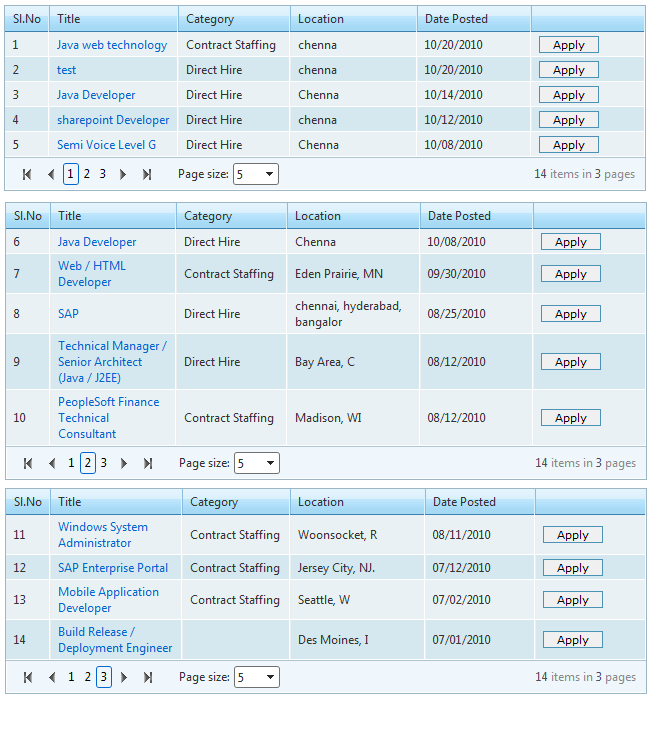

In coding..

Private Sub RadGridViewJobs_ItemDataBound(ByVal sender As Object, ByVal e As Telerik.Web.UI.GridItemEventArgs) Handles RadGridViewJobs.ItemDataBound
        Dim i As Integer
        If (TypeOf e.Item Is GridDataItem) Then
            Dim lbl As Label = CType(e.Item.FindControl("lblSn"), Label)
            If RadGridViewJobs.MasterTableView.CurrentPageIndex = 0 Then
                i = RadGridViewJobs.MasterTableView.PageSize * RadGridViewJobs.MasterTableView.CurrentPageIndex
                lbl.Text = (e.Item.ItemIndex + 1).ToString
            ElseIf RadGridViewJobs.MasterTableView.CurrentPageIndex > 0 Then
                i = RadGridViewJobs.MasterTableView.PageSize * RadGridViewJobs.MasterTableView.CurrentPageIndex
                lbl.Text = (e.Item.ItemIndex + 1 + i).ToString
            End If

        End If

    End Sub

Regards
Surya Murthy

[Elanchezhian]

You can simply add  <%# (Container.ItemIndex+1).ToString() %> into itemtemplate under grid column

<telerik:GridTemplateColumn UniqueName="RowNo" HeaderText="Row No.">
<ItemTemplate>

<%# (Container.ItemIndex+1).ToString() %>

</ItemTemplate>

<HeaderStyle Width="30px" />

</telerik:GridTemplateColumn>

[Phil]

I was faced with the same problem, to number all the rows as the user pages.  Using <%# (Container.ItemIndex+1).ToString() %>  will only provide row numbers on the current page and will not keep a running total, thus each page will be numbered 1-total rows on page.

Surya's solution seems to be the better way of providing a running row count as the user pages.

A slightly simplified codebehind seems to work well (C#)

<Columns>
                    <telerik:GridTemplateColumn UniqueName="RowNumber" FilterControlAltText="">
                    <HeaderStyle Width="25px" HorizontalAlign="Right" />
                    <ItemTemplate>
                        <asp:Label ID="RowNumber" runat="server" />
                </ItemTemplate>
 </Columns>

protected void RadGrid1_ItemDataBound(object sender, Telerik.Web.UI.GridItemEventArgs e)
{
    if (e.Item is GridDataItem)
    {
        int rowCounter = new int();
        Label lbl = e.Item.FindControl("RowNumber") as Label;
        rowCounter = RadGrid1.MasterTableView.PageSize * RadGrid1.MasterTableView.CurrentPageIndex;
        lbl.Text = (e.Item.ItemIndex + 1 + rowCounter).ToString();
    }
}

Regards,
Phil Hamsey

[Mohamad]

Place the below column in your telerik Grid,
Gridview1 is the name of your Gridview that you need to change, everything else is the same.

<telerik:GridTemplateColumn headertext=""  AllowFiltering="false" ItemStyle-Width="30px"   >
            <ItemTemplate>
                      <%# (Container.ItemIndex + (Gridview1.CurrentPageIndex * Gridview1.PageSize) + 1).ToString() %>
            </ItemTemplate>
</telerik:GridTemplateColumn>


Thanks,
Hamoui
