[Solved] Radgrid DetailTable not loading

[Sudhanva]

I am getting error "No child records to display." while trying to bind a Hierarchygrid

Here is the code, please help.

<telerik:RadGrid ID="RadGrid1" runat="server" OnDetailTableDataBind="RadGrid1_DetailTableDataBind">
            <MasterTableView DataKeyNames="PayerID">
                <DetailTables>
                    <telerik:GridTableView runat="server" Name="Plan" DataKeyNames="PlanID">
                        <ParentTableRelation>
                            <telerik:GridRelationFields DetailKeyField="PlanID" MasterKeyField="PayerID" />
                        </ParentTableRelation>
                    </telerik:GridTableView>
                </DetailTables>
            </MasterTableView>
        </telerik:RadGrid>

public partial class Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            RadGrid1.DataSource = GetPayer();
            RadGrid1.DataBind();
        }
    }

    DataTable GetPlans()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("PlanID", typeof(string));
        dt.Columns.Add("PayerID", typeof(string));
        dt.Columns.Add("PlanName", typeof(string));
        dt.Columns.Add("HQState", typeof(string));
        dt.Columns.Add("OPState", typeof(string));
        dt.Columns.Add("Status", typeof(string));
        dt.Rows.Add("0022", "0001", "Red One", "NJ", "NJ", "Open");
        dt.Rows.Add("0002", "0002", "Red One", "NJ", "NJ", "Open");

        return dt;
    }

    DataTable GetPayer()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("PayerID", typeof(string));
        dt.Columns.Add("PayerName", typeof(string));
        dt.Columns.Add("HQState", typeof(string));
        dt.Columns.Add("OPState", typeof(string));
        dt.Columns.Add("Status", typeof(string));
        dt.Rows.Add("0001", "Red One Payer", "NY", "NY", "Open");

        dt.Rows.Add("0002", "Red Two Payer", "NJ", "NJ", "Open");
        return dt;
    }
    protected void RadGrid1_DetailTableDataBind(object sender, GridDetailTableDataBindEventArgs e)
    {
        e.DetailTableView.DataSource = GetPlans();
    }
}

[Princy]

Hi Sudhanva,

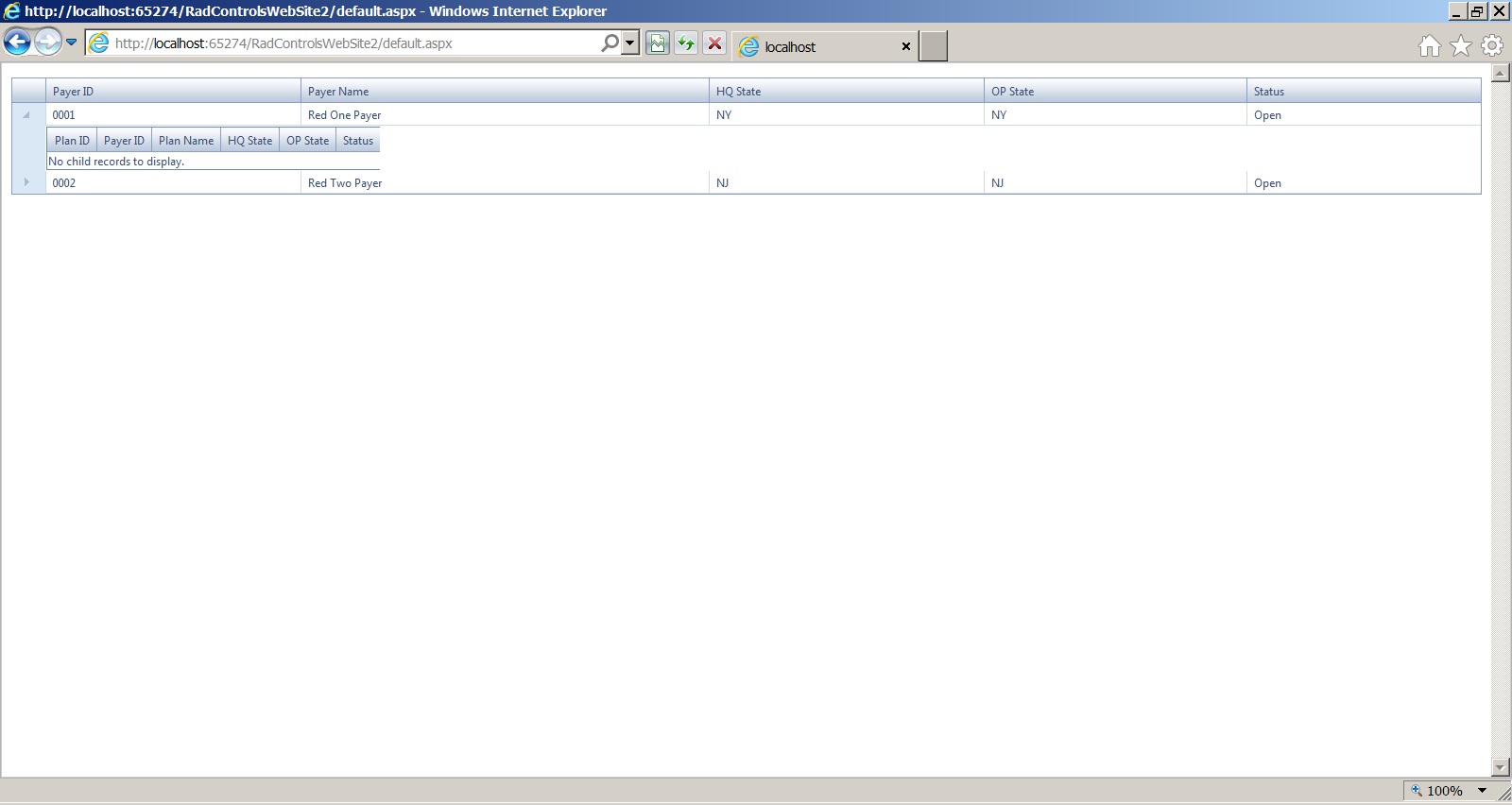

I tried your code and its working fine. The 'No child records to display' is not an error, it is showing on DetailTable expansion when there is no data in the detailTable matching with the MasterTable row. Data will be shown when the DetailKeyField and MasterKeyField relation matches. That is why 'No child records to display' is shown for the first row and data for the second.

Thanks,
Princy.
