Build a Mini Vue Task Scheduler with the Kendo UI Scheduler Component

by Christian Nwamba
May 21, 2019 Web, Vue 0 Comments
VueT Dark_870x220


Learn how to build your own task scheduler in Vue.js using the Kendo UI Scheduler component. We create a Vue project and implement the Kendo UI scheduler to demonstrate the setup process and explain how to build the scheduler in Vue.js.

On average, we embark on two or three unplanned events daily. It could be in the office, at home, even at coffee shops. A friend could easily bump into you, and before you know it, you guys are heading to a place you didn’t know you’d go five minutes ago.

This is why task schedulers are important to keep us focused on what we must do, even in the face of increasing distraction. With a task scheduler, all you need to do is open your schedule and see what your next task is and what time you have scheduled to get it done.

They help us schedule specific tasks, and set them to be completed at specific times. This is a good way to check ourselves and organize our tasks in a rather simple manner to increase efficiency and improve productivity. In this post, we will demonstrate how you can build one for yourself using Vue.js and the Kendo UI Scheduler component.

Set Up a Vue Project

First, we have to create a Vue.js project with which we can demonstrate the implementation of our task scheduler. Without further ado, open a terminal window on your preferred directory and run the command below:

$ vue create scheduler-demo

If you don’t have Vue CLI installed globally, please follow this guide to do so and come back to continue with this lesson afterward.

When you’re done bootstrapping your Vue application, change into the new Vue application directory and start the development server.

$ cd scheduler-demo
$ npm run serve

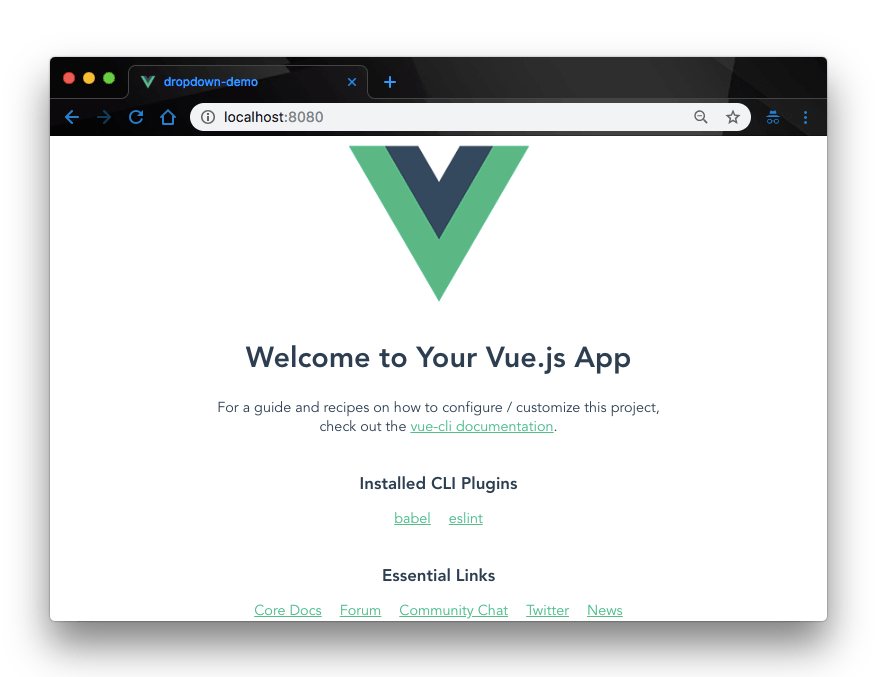

This will serve your Vue application on localhost:8080. Navigate to it on your browser and you will see your Vue application live.

vue-app

Add Kendo UI to the Project

Next, let’s add Kendo UI to our new Vue project. For the scope of this demonstration, we’ll need:

  1. The Kendo UI package
  2. The Kendo UI default theme package
  3. The Kendo UI Dropdown wrapper for Vue

To do that, open a terminal window in the project’s root directory and run the commands below:

  // Install Kendo UI vue package
$ npm install --save @progress/kendo-ui
  // Install Kendo UI dropdown wrapper for vue
$ npm install --save @progress/kendo-scheduler-vue-wrapper
  // Install Kendo UI default theme package
$ npm install --save @progress/kendo-theme-default
  1. Finally, we add the necessary Kendo UI packages from the CDN service. Open the index.html file in the public directory and add this snippet within the <head> tag:
<!-- public/index.html -->

<!--Load Kendo styles from the Kendo CDN service-->
<link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.913/styles/kendo.common.min.css"/>
<link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.913/styles/kendo.default.min.css"/>

<!--Load the required libraries - jQuery, Kendo, Babel and Vue-->
<script src="https://code.jquery.com/jquery-1.12.4.min.js"></script>
<script src="https://kendo.cdn.telerik.com/2017.3.913/js/kendo.all.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/babel-core/5.6.15/browser-polyfill.min.js"></script>
<script src="https://unpkg.com/vue/dist/vue.min.js"></script>

<!--Load the required Kendo Vue package(s)-->
<script src="https://unpkg.com/@progress/kendo-scheduler-vue-wrapper/dist/cdn/kendo-scheduler-vue-wrapper.js"></script>

Create the Scheduler Component

Now that we have all the Kendo UI packages we need for our scheduler app, let’s go ahead and modify our Vue app to render the scheduler. To do this, open the src/components/ folder. You should find an existing file HelloWorld.vue. Rename the file to Scheduler.vue and update it with the code below:

<!-- src/components/Scheduler.vue -->

<template>
  <div class="hello">
    <h1>{{ msg }}</h1>
        <div id="vueapp" class="vue-app">
    <div>
      <kendo-scheduler :data-source="localDataSource"
                     :date="date"
                     :height="600"
                     :timezone="'Etc/UTC'"
                     @add="onAdd"
                     @navigate="onNavigate"
      <kendo-scheduler-view :type="'day'"></kendo-scheduler-view>
      <kendo-scheduler-view :type="'workWeek'" :selected="true"></kendo-scheduler-view>
      <kendo-scheduler-view :type="'week'"></kendo-scheduler-view>
      <kendo-scheduler-view :type="'month'"></kendo-scheduler-view>
      <kendo-scheduler-view :type="'agenda'"></kendo-scheduler-view>
    </kendo-scheduler>
    </div>
        </div>
  </div>
</template>
<script>
export default {
  name: 'Scheduler',
    data: function() {
    return {
        date: new Date('2013/6/6'),
        localDataSource: [
            {
              id: 1,
              start: new Date("2019/2/18 08:00 AM"),
              end: new Date("2019/2/19 09:00 AM"),
              title: "Interview"
            }
         ]
    };
  },
    methods: {
        onAdd: function (ev) {
            console.log("Event :: add");
        },
        onNavigate: function (ev) {
            console.log("Event :: navigate");
        },
    },
  props: {
    msg: String
  }
}
</script>

Here, we have rendered the <kendo-scheduler> widget on the application’s template section. The scheduler comes with a lot of events like onChange, onNavigate, onAdd, etc. There are a lot more scheduler events you should totally check out here.

We also rendered the <kendo-scheduler-view> widgets with their respective types to provide the option to render scheduled events in different views – as a single day, a whole week, or month, or as a list of tasks which needs to be accomplished.

Next, we predefined a task in the localDataSource array to render it on the scheduler when we run our app. We have also set up two events on our Vue methods object to define the events on the scheduler widget.

Modify App Component

Next, let’s import this component in the App.vue file and render it to the screen. Open the App.vue file and update it with the code below:

<!-- src/App.vue -->
<template>
  <div id="app">
    <img alt="Vue logo" src="./assets/logo.png">
    <Scheduler msg="Welcome to your task scheduler"/>
  </div>
</template>
<script>
import Scheduler from './components/Scheduler.vue'
export default {
  name: 'app',
  components: {
    Scheduler
  }
}
</script>
<style>
#app {
  font-family: 'Avenir', Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
  margin-top: 60px;
}
</style>

Finally, we import the SchedulerInstaller in our main.js file. Then add it to our Vue instance to make it available everywhere in our app. Open the main.js file and update it with the code below:

<!-- src/main.js -->

import Vue from 'vue'
import App from './App.vue'
import { SchedulerInstaller } from '@progress/kendo-scheduler-vue-wrapper'
Vue.use(SchedulerInstaller)
Vue.config.productionTip = false
new Vue({
  render: h => h(App),
}).$mount('#app')

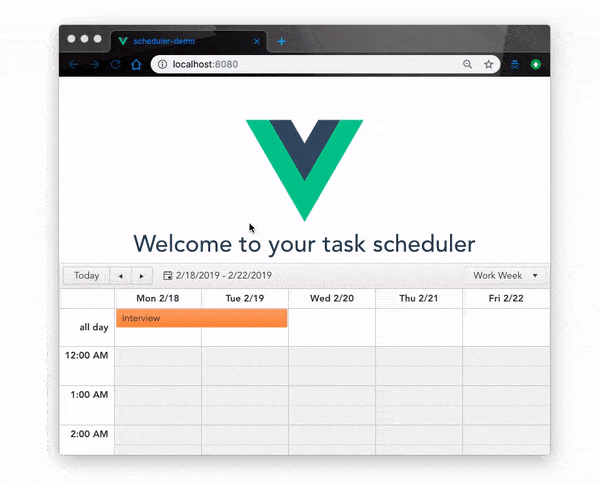

At this point, if you save the changes and check back on the browser, you should see the scheduler rendered like so:

scheduler



Great, we have our task scheduler working exactly as expected! We can see how the predefined task has been rendered on our scheduler and we can view it in the details on the Agenda tab.

Add a New Task

What if we wanted to add a new custom task to our scheduler – how do we go about it? Well, it’s straightforward. We open the Scheduler component and update our localDataSource array like so:

...
{
  id: 2,
  start: new Date("2019/2/22 1:00 PM"),
  end: new Date("2019/2/22 2:00 PM"),
  title: "Conference"
},

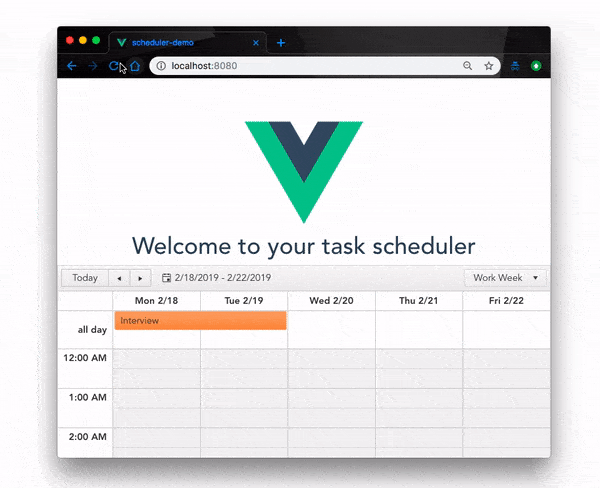

Here, we are creating another conference task on the 22nd of Feb, 2019. This conference will happen between 1 pm - 2 pm according to our schedule; however, it’ll be rendered 1hr early for us. If you save this change and reload the browser, you should see that our new task has been scheduled on our scheduler:

new-task-scheduled

Conclusion

In this post, we have demonstrated how to build your own task scheduler in Vue.js using Kendo UI Scheduler component. It is very simple and straightforward to implement. Feel free to learn more about this component on the official documentation page.
