Filter Template

Updated on Aug 28, 2026

The Filter Template lets you customize the appearance and logic of the built-in filters. It lets you step on the built-in filtering logic of the grid and implement your own design and logic for setting their values.

There are two different templates you can use depending on the Filter Mode that you chose:

• Filter Row Template
• Filter Menu Template
• Filter Menu Buttons Template

Filter Row Template

By default, the filter row puts an appropriate editor (like a numeric textbox for numbers) and its ValueChanged handler triggers grid filtering on every keystroke. There is also a button for the user to choose a filter operator, and a clear filter button when there is a value in the editor.

To customize the filter cell, use the <FilterCellTemplate> tag of the <GridColumn>. It receives a context of type FilterCellTemplateContext that provides the following members:

• FilterDescriptor - a CompositeFilterDescriptor object that describes the column filter. By default, its FilterDescriptors field contains two FilterDescriptor instances and its LogicalOperator is AND. You can populate the filter values in the existing FilterDescriptors and add more instances. You can change their filter operator and the LogicalOperator of the CompositeFilterDescriptor.

• FilterAsync() - an async method that invokes the built-in grid filtering logic (including a handler to OnRead if you use one) so you can call upon it easily from your template (e.g., when a value changes or a button is clicked).

• ClearFilterAsync() - an async method that invokes the built-in grid clear filtering logic (including a handler to OnRead if you use one) so you can call upon it easily from your template (e.g., when a value is cleared or a button is clicked).

You can store a reference to each column's context in a field in the view-model, so you can write the handlers in the standard C# code, instead of using lambdas in the markup. You can also pass the context as a Parameter to your own separate filter component to reduce clutter in the main grid markup and code.

Examples

The example below shows a custom filter that:

• Implements a min-max filter in the filter cell through two numeric textboxes.
• Filters in the OnChange event (only when the user presses Enter or blurs the input) to reduce database calls.
• Shows how you can store a reference to the context or use it inline in the template.
• Showcases building a filter descriptor with two filters and sample logic that always filters the data even if one of the inputs is empty.

You can find more examples in the Live Demo: Custom Filter Row that is available in your local installation under the demos folder. Also check How to implement a filter operator dropdown list in a Filter Row Template in order to mimic the default filter row UI.

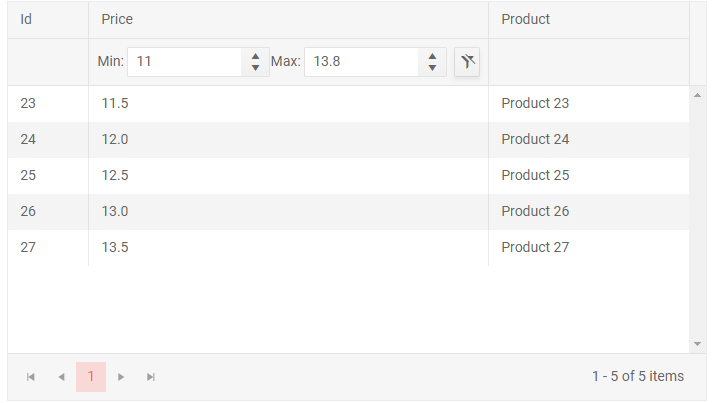

Custom Filter Row Template - Min and Max filters on OnChange

Loading ...

Filter Menu Template

By default, the filter menu contains two filter values that are tied with a logical operator - OR or AND, with filtering being triggered through a dedicated Filter button and a Clear button removes the filter.

To customize the filter menu, use the <FilterMenuTemplate> tag of the <GridColumn>. The Filter and Clear buttons are still available below the template.

The template receives a context of type FilterMenuTemplateContext that provides the following members:

• FilterDescriptor - the object that describes the column filter. By default it has two filters with the type and name of the field, and you can add more to its FilterDescriptors collection, or change its LogicalOperator from the default AND.
• FilterAsync - applies the defined filters in the Filter Menu to the Grid component.
• ClearFilterAsync - clears the applied filters.

You can store a reference to each column's context in a field in the view-model, so you can reference it from event handlers in the standard C# code, instead of passing it as an argument to lambdas in the markup only. You can also pass the context as a Parameter to your own separate filter component to reduce clutter in the main grid markup and code.

Examples

The example below shows a custom filter that:

• Implements a multi checkbox filter that lets the user choose several values from the data source.
  • Shows how you can handle null filters now that the user cannot choose a filter operator on their own.
• Shows how you can store a reference to the context or use it inline in the template.
• Showcases building multiple filter descriptors for each value the user chooses.

You can find more examples in the Live Demo: Custom Filter Menu that is available in your local installation under the demos folder.

For an example with the CheckboxList Filter, see the Custom Data section in its article.

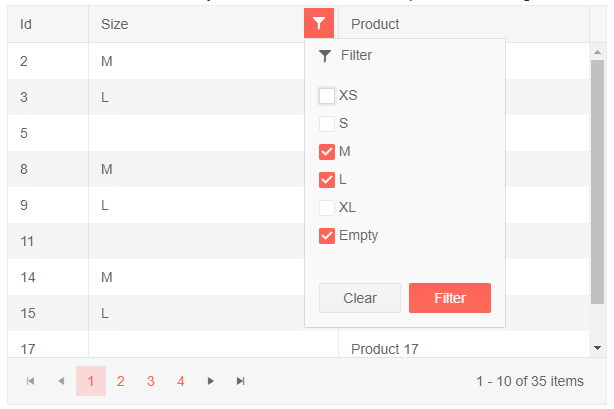

Custom Filter Menu Template - Multiple Checkboxes

The grid can create a checkbox filter for you, see the CheckBoxList Filtering article.

Loading ...

Filter Menu Buttons Template

By default, the Filter Menu renders Filter and Clear buttons. You can customize or remove them entirely by using the FilterMenuButtonsTemplate tag.

The template receives a context of type FilterMenuTemplateContext that provides the following members:

• FilterDescriptor—the object that describes the column filter. By default, the column filter has two filters: one for the type and another for the name of the field. You can modify the column filter by:
  • Adding more filters to the FilterDescriptors collection.
  • Changing the LogicalOperator (AND by default).
  • Using the FilterDescriptor to create a custom button that applies a predefined filter.
• FilterAsync—applies the filters defined in the Filter Menu to the Grid component.
• ClearFilterAsync—clears the applied filters.

Using custom filter menu buttons

Loading ...

See Also

• Live Demo: Grid Custom Filter Row
• Live Demo: Grid Custom Filter Menu
• KB: Use Filter Operator DropDown List in Filter Row Template
• KB: Use Custom DateTime Filters in a Filter Template
• Blazor Grid
