CheckBox Indeterminate State
In addition to the basic checked and unchecked states, the Telerik CheckBox has a third indeterminate state. From UX perspective, the indeterminate state means that the CheckBox is neither checked, nor unchecked.
Basics
To put a CheckBox in the indeterminate state, set its Indeterminate parameter to true. You can use two-way binding for the parameter or the IndeterminateChanged event. A Value change by the user clears that state and the user cannot restore it on their own. A true indeterminate state is only set by the application logic.
The Indeterminate parameter controls the indeterminate property of the standard HTML <input type="checkbox" />.
You can set the Indeterminate parameter to true, no matter if:
- The component
Valuetype isboolor nullablebool?. - The current component
Valueistrue,false,ornull. Depending on the Telerik CSS theme and currentValue, the CheckBox indeterminate state may look different.
Using the CheckBox Indeterminate parameter
<p>
<label class="k-checkbox-label">
<TelerikCheckBox @bind-Value="@CheckBoxValue1"
@bind-Indeterminate="@CheckBoxIndeterminate1" />
<span>Toggle from @CheckBoxValue1 to @(!CheckBoxValue1)</span>
</label>
</p>
<p>
<label class="k-checkbox-label">
<TelerikCheckBox @bind-Value="@CheckBoxValue2"
@bind-Indeterminate="@CheckBoxIndeterminate2" />
<span>Toggle from @CheckBoxValue2 to @(!CheckBoxValue2)</span>
</label>
</p>
<p>
<TelerikButton Enabled="@(!CheckBoxIndeterminate1 || !CheckBoxIndeterminate2)"
OnClick="@OnButtonClick">Set Indeterminate</TelerikButton>
</p>
@code {
private bool CheckBoxValue1 { get; set; } = true;
private bool CheckBoxValue2 { get; set; } = false;
private bool CheckBoxIndeterminate1 { get; set; } = true;
private bool CheckBoxIndeterminate2 { get; set; } = true;
private void OnButtonClick() {
CheckBoxIndeterminate1 = true;
CheckBoxIndeterminate2 = true;
}
}
Examples
Possible use cases for the indeterminate CheckBox state are:
- A CheckBox is bound to a nullable boolean property and the current
Valueisnull. - A "parent" CheckBox is related to multiple "child" CheckBoxes that have different values. Another example for such a built-in behavior is a TreeView with CheckBoxes.
Null Value
The following sample shows how to:
- Set the
Indeterminateparameter totrueautomatically when the CheckBoxValueisnull. - Use the CheckBox
ValueChangedevent Enable users to toggle between all three possible CheckBox values:true,false, andnull.
Using CheckBox Indeterminate when the Value is null
<p><label class="k-checkbox-label">
<TelerikCheckBox Value="@CheckBoxValue"
ValueChanged="@((bool? newVal) => CheckBoxValueChanged(newVal))"
Indeterminate="@(CheckBoxValue == null)" />
<span>Toggle between <code>null</code>, <code>true</code>, and <code>false</code></span>
</label></p>
@code {
private bool? CheckBoxValue { get; set; }
private void CheckBoxValueChanged(bool? newValue) {
CheckBoxValue = CheckBoxValue == true ? false : (CheckBoxValue == false ? null : true);
}
}
Related CheckBoxes

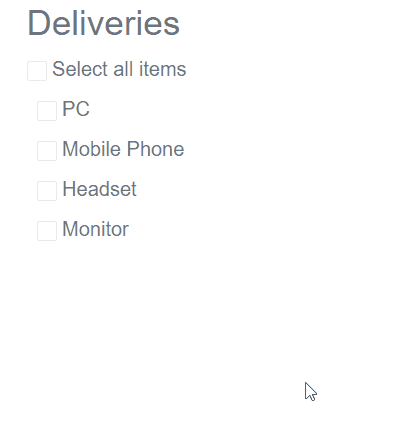

The following sample shows how to set the Indeterminate parameter of a "parent" CheckBox, depending on the Value of several "child" CheckBoxes.
Using CheckBox Indeterminate with related CheckBoxes
<ul>
<li>
<label class="k-checkbox-label">
<TelerikCheckBox Value="@Devices"
ValueChanged="@((bool newVal) => ParentChanged(newVal))"
Indeterminate="@DevicesIndeterminate" />
<span>Devices</span>
</label>
<ul>
@foreach (KeyValuePair<string, bool> device in ChildDevices) {
<li>
<label class="k-checkbox-label">
<TelerikCheckBox Value="@ChildDevices[device.Key]"
ValueChanged="@((bool newVal) => ChildChanged(device.Key, newVal))" />
<span>@device.Key</span>
</label>
</li>
}
</ul>
</li>
</ul>
@code {
private bool Devices { get; set; }
private Dictionary<string, bool> ChildDevices { get; set; } = new Dictionary<string, bool>
{
{ "Laptops", false },
{ "Tablets", false },
{ "Phones", false }
};
private bool DevicesIndeterminate => !ChildDevices.Values.All(v => v) && !ChildDevices.Values.All(v => !v);
private void ParentChanged(bool newValue) {
Devices = newValue;
foreach (string key in ChildDevices.Keys.ToList()) {
ChildDevices[key] = newValue;
}
}
private void ChildChanged(string key, bool newValue) {
ChildDevices[key] = newValue;
Devices = ChildDevices.Values.All(v => v);
}
}
