Group Templates

Updated on Sep 29, 2026

Group rows help organize data rows into a tree structure when data grouping is applied.

For runnable examples, refer to the demos on templates in the Grid.

A group row contains an expanding and collapsing group icon that enables end-users to expand and collapse a group row, and thus show or hide its child rows. One of the main features of group rows is to display group summary values. The Grid provides three different templates that can be used to customize the appearance of the group rows:

• ClientGroupHeaderTemplate—Renders a template that will be displayed for the entire group row. Usually the main objective is to show an information about the entire group. By default if no template is defined the name of the field and the current group value is displayed.
• ClientGroupHeaderColumnTemplate—Renders a template in the group row aligned to the column itself. Usually it is used to show an aggregate value for a specific column in the context of the current group. Visually the template content is displayed aligned to the column itself. This functionality is introduced in R3 2018 release.
• ClientGroupFooterTemplate—Renders a template in the group footer row aligned to the column. Pretty much it works in the same way as the ClientGroupHeaderColumnTemplate for the group footer row.

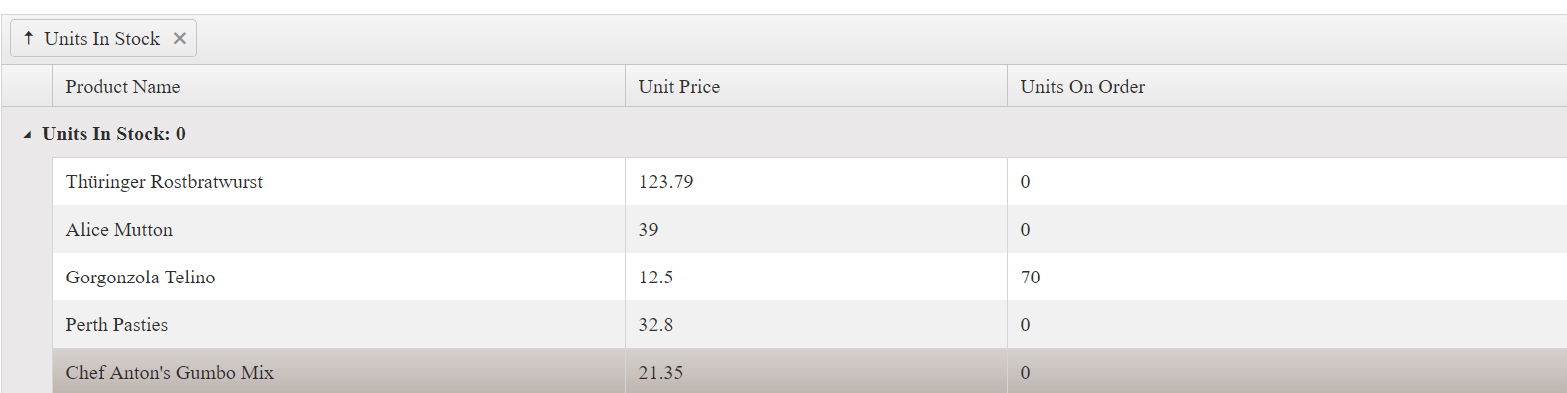

If no template is defined, the name of the field and the current group are displayed in the following way.

The only difference in the use of ClientGroupHeaderTemplate is that the template content is compiled and displayed instead of the field and current group value.

TypeScript Type for the Handler Argument

The TypeScript definition for groupHeaderTemplate is string | Function; it does not provide a dedicated type for the argument of a ClientGroupHeaderTemplateHandler function. At runtime, the handler receives an object with the field, value, items, and aggregates properties.

Define a local interface for the handler argument when you need type checking:

TypeScript

interface GridGroupHeaderTemplateData {
    field: string;
    value: unknown;
    items: kendo.data.DataSourceItemOrGroup[];
    aggregates: Record<string, unknown>;
}

function myGroupHeaderTemplate(data: GridGroupHeaderTemplateData): string {
    return `<strong>Group: ${String(data.value)}</strong>`;
}

The kendo.data.DataSourceGroup interface is the closest built-in type, but it is not an exact match because it also requires the hasSubgroups property.

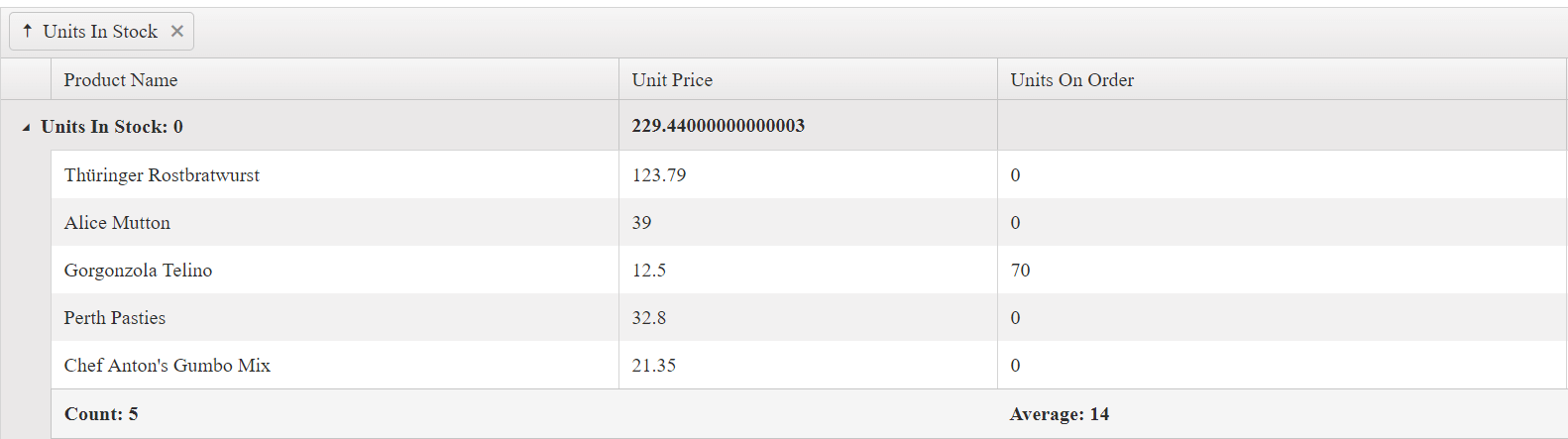

Both ClientGroupHeaderColumnTemplate and ClientGroupFooterTemplate work in a similar way. ClientGroupHeaderColumnTemplate displays the content as aligned to the column in the group row. ClientGroupFooterTemplate displays the content as aligned to the column in the group footer row. Their content is displayed as aligned to the column as shown in the following way.

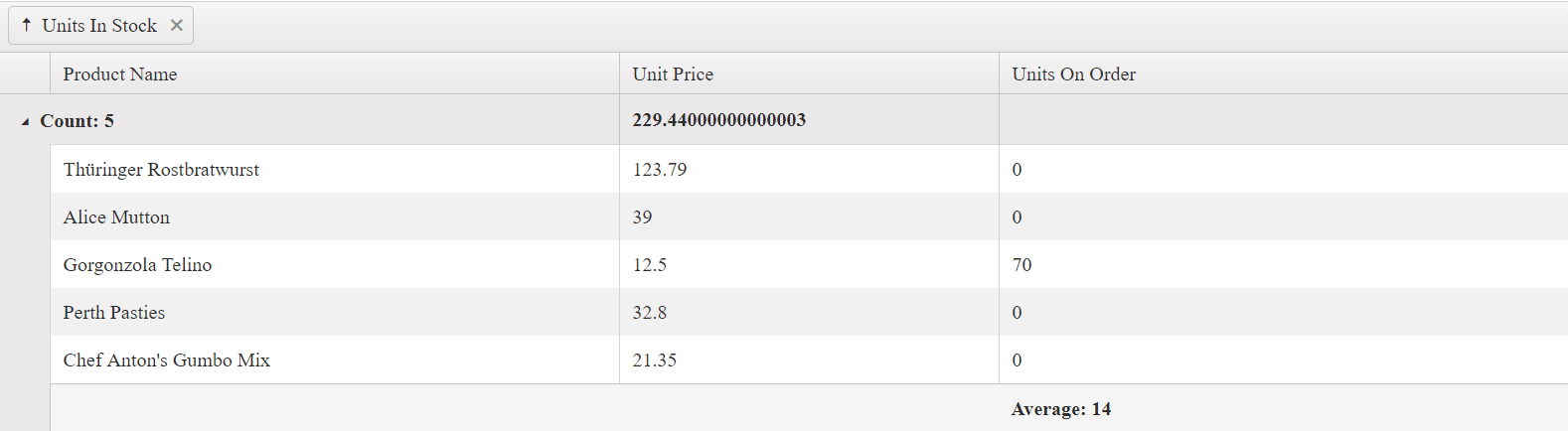

Due to the fact that ClientGroupHeaderTemplate is displayed next to the expanding icon of the group row, it takes precedence over the ClientGroupHeaderColumnTemplate of the first visible column. If you want to show the ClientGroupHeaderColumnTemplate content for the first column of the Grid, do not set the ClientGroupHeaderTemplate for the group column. The following Grid configuration shows that commenting the ClientGroupHeaderTemplate for the Units In Stock column shows the ClientGroupHeaderColumnTemplate for the Product Name column.

Razor

@(Html.Kendo().Grid<Kendo.Mvc.Examples.Models.ProductViewModel>()
    .Name("Grid")
    .Columns(columns =>
    {
        columns.Bound(p => p.ProductName)
            .ClientGroupHeaderColumnTemplate("Count: #=count#");
        columns.Bound(p => p.UnitPrice).Format("{0:C}");
        columns.Bound(p => p.UnitsOnOrder);
        columns.Bound(p => p.UnitsInStock);
            //.ClientGroupHeaderTemplate("Min: #= min #");
    })
    .Pageable()
    .Sortable()
    .DataSource(dataSource => dataSource
        .Ajax()
        .Aggregates(aggregates =>
        {
            aggregates.Add(p => p.UnitsInStock).Min();
            aggregates.Add(p => p.ProductName).Count();
        })
        .Group(groups => groups.Add(p => p.UnitsInStock))
        .Read(read => read.Action("Aggregates_Read", "Grid"))
    )
)

Using an external DataSource

When the DataSource is part of the Grid definition, as in the example above, the Grid will infer the aggregates per column field from the DataSource definition. When using an external DataSource and passing it to the Grid via the DataSourceId method, the aggregates per column need to be defined manually via the column's Aggregates method, so the aggregates will be accessible in the group templates:

Razor

    @(Html.Kendo().DataSource<Kendo.Mvc.Examples.Models.OrderViewModel>()
        .Name("dataSource1")
        .Custom(x => x
            .Type("odata-v4")
            .Transport(transport =>
            {
                transport.Read(read => read.Url("https://demos.telerik.com/service/v2/odata/Orders"));
            })
            .PageSize(20)
            .Aggregates(aggregates =>
            {
                aggregates.Add(p => p.Freight).Sum();
            })
        )
    )

    @(Html.Kendo().Grid<Kendo.Mvc.Examples.Models.OrderViewModel>()
        .Name("grid")
        .Columns(columns =>
        {
            columns.Bound(e => e.OrderID).Filterable(false);
            columns.Bound(e => e.Freight).Aggregates(new string[]{"sum"}).ClientGroupFooterTemplate("Sum: #=sum#");
            columns.Bound(e => e.ShipCity).Width(150);
        })
        .DataSource("dataSource1")
        .Groupable()
        .Pageable()
        .Sortable()
        .Filterable()
    )

Limitations

The Grid for Core is not rendered on the server. Therefore, it is not possible to define server-side templates which makes the usage of .ServerOperations(true) in this case incompatible.
