Commands

Updated over 6 months ago

RadDiagram provides a powerful set of RoutedUICommands that help you work with your RadDiagram and its items easily and build better MVVM applications.

RadDiagram Commands

The static DiagramCommands class defines the following RoutedUICommands:

• Align- Aligns the selected shapes.

• Snap- Snaps the selected shapes.

• Layout- Organizes the diagram automatically.

• Copy- Copies selected diagram items.

• Paste- Pastes selected diagram items.

• Delete- Deletes selected diagram items.

• Cut- Cut selected diagram items.

• Duplicate- Duplicates selected item/s.

• Undo- Undoes the last action.

• Redo- Redoes the last action.

• BringToFront- Brings to front selected diagram items.

• BringForward- Brings forward selected diagram items.

• SendToBack- Sends to back selected diagram items.

• SendBackward- Sends backward selected diagram items.

• Clear- Clears the diagram.

• BeginEdit- Begins editing diagram item.

• CommitEdit- Commits the edited changes.

• CancelEdit- Cancels the edited changes.

• SelectAll- Selects all shapes in the diagram.

• Nudge- Moves selected item/s in a specific direction. You can pass more specifics about the nudge operation through the CommandParameter. This parameter can be a single string representing the direction of the nudge:

  • Left

  • Right

  • Up

  • Down - it can also be a string in the form of "direction; amount", the 'direction' being a value from the above list of direction strings. The 'amount' options are:

    • Small - if the RadDiagram.IsSnapToGridEnabled property is set to true then this amount would mean that the nudge should happen once to the appointed direction using the SnapX/Y value as a step. The snap settings can be applied in the RadDiagram definition. If the RadDiagram.IsSnapToGridEnabled property is false, a "Small" amount indicates a step of 5 pixels;

    • Large - if the RadDiagram.IsSnapToGridEnabled property is set to true then this amount would mean that the nudge should happen once to the appointed direction using 5*SnapX/Y value as a step. The snap settings can be applied in the RadDiagram definition. If the RadDiagram.IsSnapToGridEnabled property is false, a "Large" amount indicates a step of 10 pixels;

    • any number - if you provide a number in the CommandParameter, this number would indicate the number of pixels to be used as a step for the Nudge command.

• Group- Groups the selected items.

• Ungroup- Ungroups the selected groups.

Using Diagram Commands

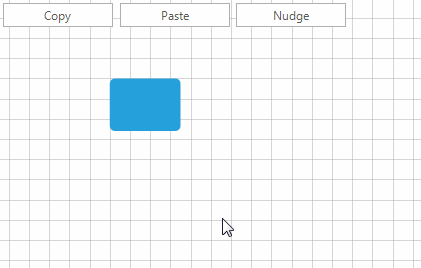

Below is shown a sample code snippet how you can use some of the Diagram Commands in an application by using the DiagramElement.TryExecuteCommand method:

C#


private void radButton1_Click(object sender, EventArgs e)
{
    this.radDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Copy);
}

private void radButton2_Click(object sender, EventArgs e)
{
    this.radDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Paste);
}
private void radButton3_Click(object sender, EventArgs e)
{
    this.radDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Nudge, "Left");
}

VB.NET

Private Sub RadButton1_Click(sender As Object, e As EventArgs) Handles RadButton1.Click
    Me.RadDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Copy)
End Sub
Private Sub RadButton2_Click(sender As Object, e As EventArgs) Handles RadButton2.Click
    Me.RadDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Paste)
End Sub
Private Sub RadButton3_Click(sender As Object, e As EventArgs) Handles RadButton3.Click
    Me.RadDiagram1.DiagramElement.TryExecuteCommand(Telerik.WinControls.UI.Diagrams.DiagramCommands.Nudge, "Left")
End Sub
