Windows Forms Application Overview

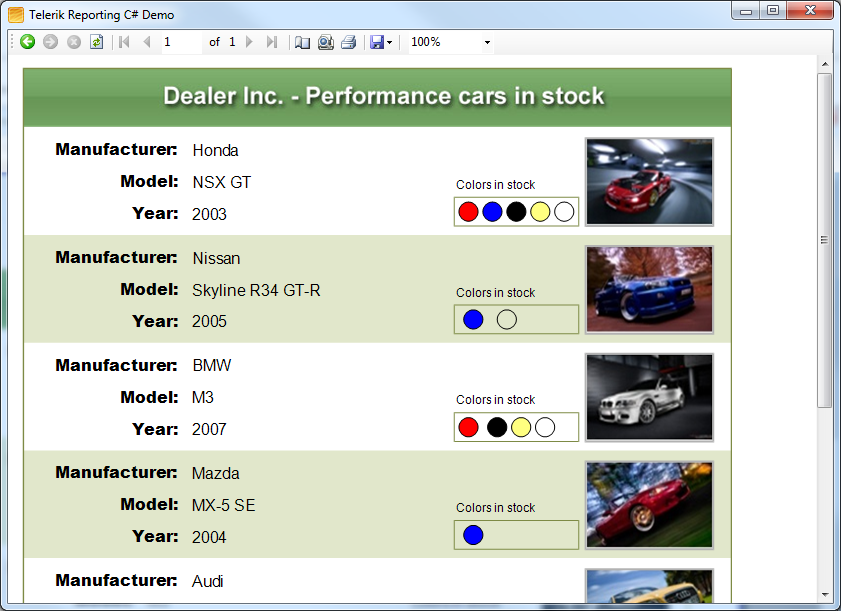

The Windows Forms Report Viewer control displays report documents that are generated by the report engine in WinForms applications and allows the end user to interact with it.

The Windows Forms Report Viewer renders buttons and inputs in the dedicated toolbar to allow the following interactions with the currently loaded report:

Button or Input	Action
Navigate back in history	Navigates to a previous report after the Navigate to report interactive action was triggered.
Navigate forward in history	Navigates to a forward report after the Navigate back was used.
Stop	Cancels the loading of the current report if the chosen parameters make it too heavy.
Refresh	Updates the current report with fresh data.
First page	Displays the respective page of the current report.
Previous page	Displays the respective page of the current report.
Current page	Input allows tracking the number of the displayed page and also displaying a particular page by entering its number.
Total pages	Shows the number of pages of the current report.
Next page	Displays the respective page of the current report.
Last page	Displays the respective page of the current report.
Page Setup...	Opens a dialog to set up the paper size, orientation, and margins of the current report. On closing, the dialog refreshes the report to match the preferences.
Switch to Print Preview	Switches the report view between the Logical and Physical. Logical provides a convenient on-screen preview experience. Physical provides an exact preview of the eventual print operation.
Print	Initiates printing of the current report.
Export	Initiates an export operation. For more information, refer to the article on export formats.
Zoom	Allows the user to view and change the zoom level of the report content.
Show/Hide parameters area	Allows the user to hide the report parameter inputs if any.
Show/Hide document map	Allows the user to hide the document map tree if map nodes were defined in the report.

System Requirements

• Visual Studio 2012 or later.
• .NET Framework 4 or above (.NET Framework 4 Client Profile is not supported)
• .NET 8+

How It Works

The Windows Forms Report Viewer control requires an implementation as a composite of standard Windows Forms controls.

The toolbar of the Windows Forms Report Viewer is not customizable. To introduce custom commands or strip existing commands, hide the built-in toolbar and use the API to add a custom UI that triggers the commands on the Viewer.

Depending on the configuration of the Viewer, the report generates its pages through the Telerik Reporting Image Rendering as vector or raster images.

To process and render the report, use any of the following locations:

• On the client machine with the report generation engine embedded in the desktop application.
• On a server machine with the report generation engine embedded in a web application and exposed as Telerik Reporting REST Service.
• On a Telerik Report Server instance.

Declaring the Application as DPI-Aware

When using Windows Forms Report Viewer on a machine with the Windows Vista (and later) operating system, and with a DPI scale factor higher than 96, the form content (labels, buttons, rendered report image, and so on) may render fuzzy, pixelated, or other types of visual artifacts. The reason for this behavior is that the application in which you are using the Windows Forms Report Viewer is not declared as DPI-aware.

It is recommended that you declare a DPI-aware application by adding a dpiAware element to its application manifest:

XML

<assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0" xmlns:asmv3="urn:schemas-microsoft-com:asm.v3" >
	<asmv3:application>
	<asmv3:windowsSettings xmlns="http://schemas.microsoft.com/SMI/2005/WindowsSettings">
		<dpiAware>True</dpiAware>
	</asmv3:windowsSettings>
	</asmv3:application>
</assembly>

For .NET applications, you need to ensure Windows 10 compatibility in the manifest file, as elaborated in the Microsoft article High DPI support in Windows Forms:

XML

<compatibility xmlns="urn:schemas-microsoft-com:compatibility.v1">
	<application>
		<!-- Other Windows distributions may be added -->

		<!-- Windows 10 -->
		<supportedOS Id="{8e0f7a12-bfb3-4fe8-b9a5-48fd50a15a9a}" />
	</application>
</compatibility>

As of Windows 10 Anniversary Update, the Windows runtime has improved the UX for Windows Forms applications that are not DPI-aware. However, this behavior may lead to incorrect calculations of the interactive item positions and it is recommended that you always declare the Windows Forms application as DPI-aware. For more information about DPI-aware desktop applications, refer to the High DPI Desktop Application Development on Windows MSDN article.

Keyboard Shortcuts

The Windows Forms Report Viewer supports the following keyboard and mouse commands, which use the CTRL key as a modifier that changes the applied action.

Mouse or key event	Action	Action with the applied CTRL modifier
Mouse wheel	Scrolls up or down the document.	Zooms in or out.
Up	Scrolls the view one row up.	n/a
Down	Scrolls the view one row down.	n/a
Left	Scrolls the view one row left.	n/a
Right	Scrolls the view one row right.	n/a
Page up	Scrolls the view up.	Scrolls the view to the top of the current page and then to the previous page.
Page down	Scrolls the view down.	Scrolls the view to the bottom of the current page and then to the next page.
Home	Scrolls the view to the left.	Scrolls the view to the previous page.
End	Scrolls the view to the right.	Scrolls the view to the next page.
+ (Plus)	n/a	Zooms in.
- (Minus)	n/a	Zooms out.
F	n/a	Opens the Search dialog.
