RadTreeMap Drill Down

Environment

ProductRadTreeMap for ASP.NET AJAX

Description

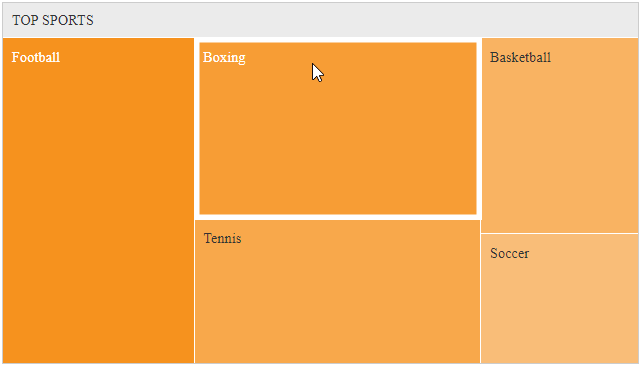

In this article we are demonstrating a possible way to achieve drill-down functionality with RadTreeMap, utilizing the API of the control and the RadAjaxManager functionality. You can implement that by following the steps below:

  1. Handle the client-side Load event of the TreeMap and attach a handler to the tile's element click event there.
  2. Initialize a manual ajax request by pass the text of the clicked item to the AjaxManager (use the ajaxRequest() method)
  3. Handle the AjaxManager's OnAjaxRequest event
  4. Change the DataSource of the TreeMap depending on the argument passed to the server-side AjaxRequest Handler.

Solution

ASP.NET
        <telerik:RadCodeBlock runat="server">
            <script>
                var $ = $ || $telerik.$;
                var treeMap;

                function attachClickhandler(sender, args) {
                    treeMap = sender;

                    $(treeMap.get_element()).on("click", ".k-treemap-tile .k-leaf", function (e) {
                        e.stopPropagation();
                        var ajaxManager = $find("<%=RadAjaxManager1.ClientID%>");
                        var kendoWidget = treeMap.get_kendoWidget();
                        var tile = $(this);
                        var uid = tile.data().uid;

                        var tileObj = kendoWidget._getByUid(uid);
                        var dataItem = tileObj.dataItem;

                        if (kendoWidget._root.text == "TOP SPORTS") {
                            ajaxManager.ajaxRequest(dataItem.text);
                        }
                    });
                }
            </script>
        </telerik:RadCodeBlock>

        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server" OnAjaxRequest="RadAjaxManager1_AjaxRequest">
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="RadAjaxManager1">
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="RadTreeMap1" LoadingPanelID="LoadingPanel1"></telerik:AjaxUpdatedControl>
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>
        <telerik:RadAjaxLoadingPanel ID="LoadingPanel1" Height="77px" Width="113px" runat="server">
        </telerik:RadAjaxLoadingPanel>

        <telerik:RadTreeMap RenderMode="Lightweight" runat="server" ID="RadTreeMap1"
            OnClientLoad="attachClickhandler">
        </telerik:RadTreeMap>
C#
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            RadTreeMap1.DataFieldID = "ID";
            RadTreeMap1.DataFieldParentID = "ParentID";
            RadTreeMap1.DataTextField = "Sport";
            RadTreeMap1.DataValueField = "ID";
            RadTreeMap1.DataSource = GetSports();
            RadTreeMap1.DataBind();
        }
    }

    protected void RadAjaxManager1_AjaxRequest(object sender, Telerik.Web.UI.AjaxRequestEventArgs e)
    {
        string sport = e.Argument;
        RadTreeMap1.DataFieldID = "ID";
        RadTreeMap1.DataFieldParentID = "ParentID";
        RadTreeMap1.DataTextField = "Name";
        RadTreeMap1.DataValueField = "ID";
        DataTable result = GetPlayers().Select(string.Format("Sport = '{0}'", sport)).CopyToDataTable();

        RadTreeMap1.DataSource = result;
        RadTreeMap1.DataBind();
    }

    public static DataTable GetSports()
    {
        DataTable table = new DataTable();
        table.Columns.Add("ID");
        table.Columns.Add("ParentID");
        table.Columns.Add("Sport");

        table.Rows.Add(1, null, "TOP SPORTS");
        table.Rows.Add(2, 1, "Soccer");
        table.Rows.Add(3, 1, "Basketball");
        table.Rows.Add(4, 1, "Tennis");
        table.Rows.Add(5, 1, "Boxing");
        table.Rows.Add(6, 1, "Football");

        return table;
    }

    public static DataTable GetPlayers()
    {
        DataTable table = new DataTable();
        table.Columns.Add("ID");
        table.Columns.Add("ParentID");
        table.Columns.Add("Sport");
        table.Columns.Add("Name");

        table.Rows.Add(1, null, "Soccer", "Soccer");
        table.Rows.Add(2, 1, "Soccer", "Cristiano Ronaldo");
        table.Rows.Add(3, 1, "Soccer", "Lionel Messi");

        table.Rows.Add(4, null, "Basketball", "Basketball");
        table.Rows.Add(5, 4, "Basketball", "LeBron James");
        table.Rows.Add(6, 4, "Basketball", "Kobe Bryant");

        table.Rows.Add(7, null, "Tennis", "Tennis");
        table.Rows.Add(8, 7, "Tennis", "Roger Federer");
        table.Rows.Add(9, 7, "Tennis", "Rafael Nadal");

        table.Rows.Add(10, null, "Boxing", "Boxing");
        table.Rows.Add(11, 10, "Boxing", "Floyd Mayweather");
        table.Rows.Add(12, 10, "Boxing", "Manny Pacquiao");

        table.Rows.Add(13, null, "Football", "Football");
        table.Rows.Add(14, 13, "Football", "Matt Ryan");
        table.Rows.Add(15, 13, "Football", "Matthew Stafford");

        return table;
    }
