Integrating RadEditor in the advanced form of RadScheduler

HOW-TO

Integrate RadEditor in the advanced form of RadScheduler

DESCRIPTION

RadEditor replaces the Description field of the advanced form. It's content is saved in the Description field and the stripped down plain text of the content (no formatting) is saved in a custom attribute - DescriptionPlainText. The DescriptionPlainText custom attribute is used for description in the AppointmentTemplate.

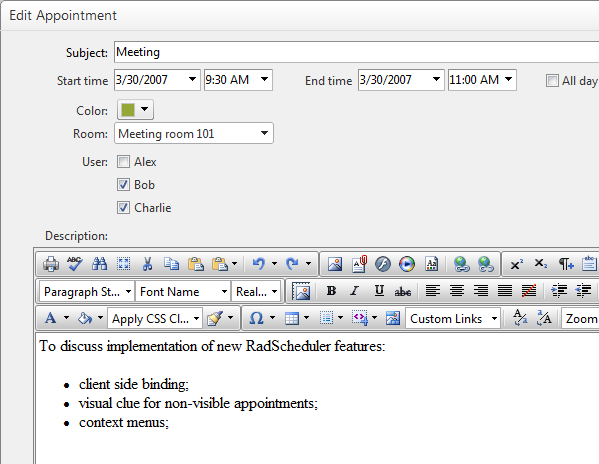

Advanced form:

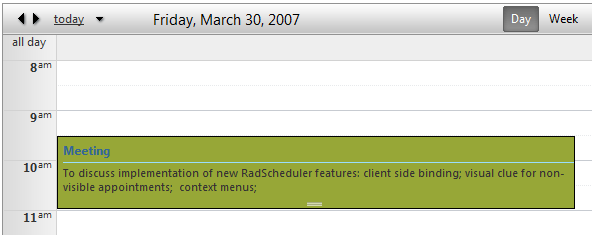

Appointment template:

SOLUTION

Download a working sample from here (SchedulerCustomAdvancedFormQ3_SP1_2009.zip). Then edit AdvancedForm.ascx to comment the description RadTextBox and add a RadEditor control and a description label like this:

ASP.NET

<%-- <telerik:RadTextBox runat="server" ID="DescriptionText" TextMode="MultiLine" Columns="50"
                  Rows="5" Width="100%" Label='<%# Owner.Localization.AdvancedDescription + ":" %>'
                  Text='<%# Eval("Description") %>' />--%>

<label>
 <%= Owner.Localization.AdvancedDescription%>:
</label>
<telerik:RadEditor ID="DescriptionText" runat="server">
</telerik:RadEditor>

In code-behind of AdvancedForm.ascx modify the Description property and expose a new one - DescriptionPlainText as follows:

C#

[Bindable(BindableSupport.Yes, BindingDirection.TwoWay)]
public string Description
{
   get
   {
       return DescriptionText.Content;
   }

   set
   {
       DescriptionText.Content = value;
   }
}
[Bindable(BindableSupport.Yes, BindingDirection.OneWay)]
public string DescriptionPlainText
{
   get
   {
       return DescriptionText.Text;
   }
}

VB

<Bindable(BindableSupport.Yes, BindingDirection.TwoWay)> _
Public Property Description() As String
   Get
       Return DescriptionText.Content
   End Get

   Set
       DescriptionText.Content = value
   End Set
End Property
<Bindable(BindableSupport.Yes, BindingDirection.OneWay)> _
Public ReadOnly Property DescriptionPlainText() As String
   Get
       Return DescriptionText.Text
   End Get
End Property

In Default.aspx make the following changes:

ASP.NET

<telerik:RadScheduler runat="server" ID="RadScheduler1" Width="650px"
    SelectedDate="2007-03-30" TimeZoneOffset="03:00:00"
    OnDataBound="RadScheduler1_DataBound"
    OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"
    OnClientFormCreated="schedulerFormCreated"
    CustomAttributeNames="AppointmentColor, DescriptionPlainText"
    EnableDescriptionField="true">
    <AdvancedForm Modal="true" />
    <AppointmentTemplate>
        <div class="rsAptSubject">
            <%# Eval("Subject") %>
        </div>
        <%# Eval("DescriptionPlainText")%>
    </AppointmentTemplate>
    <AdvancedEditTemplate>
        <scheduler:AdvancedForm runat="server" ID="AdvancedEditForm1" Mode="Edit"
            Subject='<%# Bind("Subject") %>'
            Description='<%# Bind("Description") %>'
            DescriptionPlainText='<%# Bind("DescriptionPlainText") %>'
            Start='<%# Bind("Start") %>'
            End='<%# Bind("End") %>'
            RecurrenceRuleText='<%# Bind("RecurrenceRule") %>'
            AppointmentColor='<%# Bind("AppointmentColor") %>'
            UserID='<%# Bind("User") %>'
            RoomID='<%# Bind("Room") %>' />
    </AdvancedEditTemplate>
    <AdvancedInsertTemplate>
        <scheduler:AdvancedForm runat="server" ID="AdvancedInsertForm1" Mode="Insert"
            Subject='<%# Bind("Subject") %>'
            Start='<%# Bind("Start") %>'
            End='<%# Bind("End") %>'
            Description='<%# Bind("Description") %>'
            DescriptionPlainText='<%# Bind("DescriptionPlainText") %>'
            RecurrenceRuleText='<%# Bind("RecurrenceRule") %>'
            AppointmentColor='<%# Bind("AppointmentColor") %>'
            UserID='<%# Bind("User") %>'
            RoomID='<%# Bind("Room") %>' />
    </AdvancedInsertTemplate>
    <TimelineView UserSelectable="false" />
    <TimeSlotContextMenuSettings EnableDefault="true" />
    <AppointmentContextMenuSettings EnableDefault="true" />
</telerik:RadScheduler>

You can download a sample project from here.
