Images

RadTimeline can render an <img /> tag for the first item of its images collection in the data source.

Its Src property of the TimelineItemImage object will be set to the value of the src field of the image literal if RadTimeline is bound.

To show more than one image, customize the template of the RadTimeline.

The following example demonstrates how to configure RadTimeline declaratively, having different images insisde each TimelineItem.

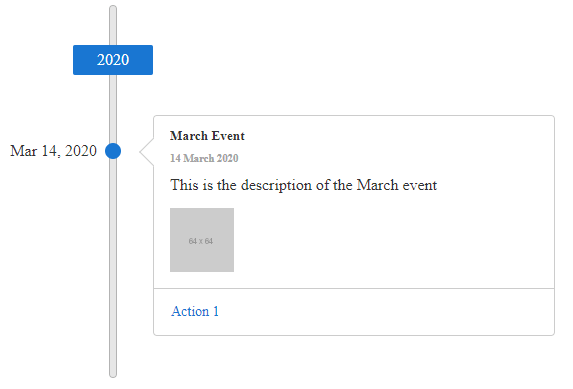

Figure 1: RadTimeline with an image inside the item

timeline-image

ASPNET
<telerik:RadTimeline runat="server" ID="RadTimeline2" Froemds="asd">
    <Items>
        <telerik:TimelineItem Date="2020/3/14" Title="March Event" Subtitle="14 March 2020" Description="This is the description of the March event">
            <Actions>
                <telerik:TimelineItemAction Text="Action 1" Url="https://google.com/search?q=action1" />
            </Actions>
            <Images>
                <telerik:TimelineItemImage Src="https://via.placeholder.com/64" />
            </Images>
        </telerik:TimelineItem>
        <telerik:TimelineItem Date="2020/3/15" Title="March Event" Subtitle="14 March 2020" Visible="false"
            Description="This is the description of the March event">
            <Actions>
                <telerik:TimelineItemAction Text="Action 1" Url="https://google.com/search?q=action1" />
            </Actions>
            <Images>
                <telerik:TimelineItemImage Src="https://via.placeholder.com/34" />
            </Images>
        </telerik:TimelineItem>
    </Items>
</telerik:RadTimeline>
