Custom CDN Provider
A custom (especially local) CDN provider is useful in cases where the application runs on an Intranet or the client machines are otherwise restricted from reaching the cloud where the Telerik CDN is hosted.
In case you want to use your own CDN provider for hosting the Telerik UI for ASP.NET AJAX script / css files you need to follow the steps below.
-
Obtain the CDN resource package for your controls version. For example, Telerik_UI_for_ASP.NET_AJAX_2015_2_826_CDN_Resources.zip.
This file is available in your account and can be found in the Downloads section where all product files for the UI for for ASP.NET AJAX product are located. The location may vary slightly depending on your subscription.
-
Extract the archive. The file structure will look like this:
- Scripts
- ajax/[version]
- ajaxz/[version]
- Skins
- ajax/[version]
- ajaxz/[version]
- ReadMe
The Scripts/ajaxz folder contains the compressed (gzipped) JavaScript files. The Scripts/ajax folder contains the uncompressed JavaScript files for compatibility with older browsers.
- Scripts
-
Copy the content of the Scripts / Skins folder to your CDN host:
- CDN
- ajax/[version]
- ajaxz[version]

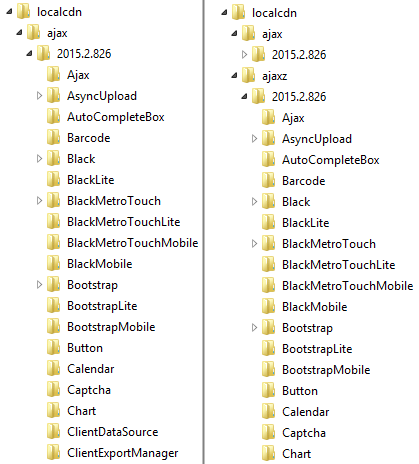

Example:
- CDN
-
Using Uncompressed Resources in IIS
-
Enable Dynamic and Static Compression
-
Configure RadScriptManager and RadStyleSheetManager:
ASP.NET<telerik:RadStyleSheetManager ID="RadStyleSheetManager1" runat="server" OutputCompression="Disabled"> <CdnSettings BaseUrl="http://my.favorite.cdn" BaseSecureUrl="http://my.favorite.cdn" TelerikCdn="Enabled" /> </telerik:RadStyleSheetManager> <telerik:RadScriptManager ID="RadScriptManager1" runat="server" OutputCompression="Disabled"> <CdnSettings BaseUrl="http://my.favorite.cdn" BaseSecureUrl="https://my.favorite.cdn" TelerikCdn="Enabled" /> </telerik:RadScriptManager>
-
-
Using Compressed Resources in IIS
-
Disable Dynamic and Static compression
-
Set HTTP headers
- Cache-Control: public, max-age=31536000
- Expires - 1 year from the date of the request, if set dynamically. Far-future date (10 years) if set statically.
- For all files in the Scripts/ajaxz folder: Content-Encoding: gzip
- For .css files in the Skins/ajaxz folder: Content-Encoding: gzip
-
Set the BaseUrl attribute of the CdnSettings property to the domain name of your CDN and TelerikCdn="Enabled":
ASP.NET<telerik:RadStyleSheetManager ID="RadStyleSheetManager1" runat="server"> <CdnSettings BaseUrl="http://my.favorite.cdn" BaseSecureUrl="https://my.favorite.cdn" TelerikCdn="Enabled" /> </telerik:RadStyleSheetManager> <telerik:RadScriptManager ID="RadScriptManager1" runat="server"> <CdnSettings BaseUrl="http://my.favorite.cdn" BaseSecureUrl="https://my.favorite.cdn" TelerikCdn="Enabled" /> </telerik:RadScriptManager>
You can also do it from web.config:
<appsettings> <add key="Telerik.ScriptManager.TelerikCdn.BaseUrl" value="http://my.favorite.cdn " /> <add key="Telerik.ScriptManager.TelerikCdn.BaseSecureUrl" value="https://my.favorite.cdn " /> </appsettings>
Final web.config file:
<?xml version="1.0" encoding="UTF-8"?> <configuration> <system.webServer> <rewrite> <outboundRules> <rule name="Set Content Encoding header"> <match serverVariable="RESPONSE_CONTENT_ENCODING" pattern=".*" /> <conditions> <add input="{REQUEST_URI}" pattern="\.(css|js)$" /> </conditions> <action type="Rewrite" value="gzip" /> </rule> </outboundRules> </rewrite> <staticContent> <clientCache cacheControlMode="UseMaxAge" cacheControlMaxAge="00:10:15" /> </staticContent> <urlCompression doStaticCompression="false" doDynamicCompression="false" /> </system.webServer> </configuration>
-
Now the HTML output of the scripts tag will be like this:
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Common/Core.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Common/jQuery.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Common/jQueryPlugins.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Common/Scrolling/ScrollingScripts.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Common/Navigation/NavigationScripts.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/Menu/RadMenuScripts.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/TabStrip/RadTabStripScripts.js" type="text/javascript"></script>
<script src="http://my.favorite.cdn/ajaxz/2015.2.826/ListBox/RadListBoxScripts.js" type="text/javascript"></script>
Custom Local CDN Provider
The solution described in the section above is fully applicable also for creating a local CDN. Just copy the Scripts
and Skins
folders inside a folder in the root of your application and configure the BaseUrl and BaseSecureUrl to point to the resources folder.
For more detailed instructions check out the Configure Local CDN for Telerik UI for ASP.NET AJAX video:
If you are using non-IIS CDN hosting service configuration might be different.
