Templates
RadScheduler lets you change the appearance of appointments and of the in-line editor using templates. The RadScheduler templates are powerful enough to accommodate any content you want to embed, including HTML markup, ASP.NET server controls, and other third-party controls.
When the advanced form is modal (AdvancedForm Modal="true"), it relies on a special CSS class to be displayed properly - rsAdvancedEdit . When using the advanced templates, you need to make sure that you wrap your content within a container which has this class. You can find an example here.
There are five types of templates that can be used with RadScheduler:
-
AppointmentTemplate - determines how appointments are rendered within the scheduler's view.
-
InlineInsertTemplate - determines how the in-line editor appears for inserting a new appointment.
-
InlineEditTemplate - determines how the in-line editor appears for editing an existing appointment.
-
AdvancedInsertTemplate - determines how the advanced edit form appears for inserting a new appointment.
-
AdvancedEditTemplate - determines how the advanced edit form appears for editing an existing appointment.

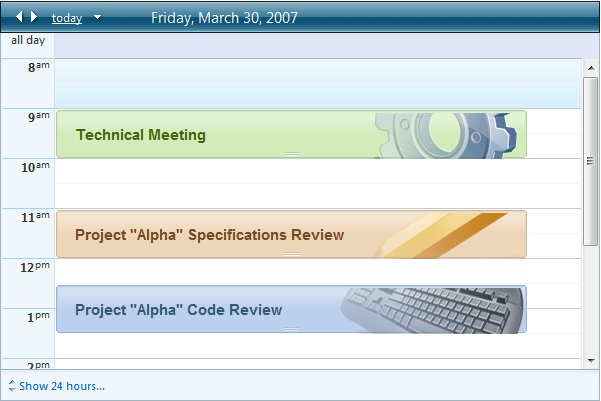

AppointmentTemplate
<AppointmentTemplate>
<div class="rsCustomAppointmentContainer <%# Eval("AppointmentType.Text") %>">
<h2><%# Eval("Subject") %></h2>
</div>
</AppointmentTemplate>
Using
<table>
elements inside the AppointmentTemplate leads to incorrect rendering of the appointments in TimelineView.
InlineInsertTemplate
<InlineInsertTemplate>
<div id="InlineInsertTemplate" class="rsCustomAppointmentContainer <%# Eval("AppointmentType.Text") %>">
<asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("Subject") %>' Width="90%" TextMode="MultiLine" Height="20px"></asp:TextBox>
<asp:LinkButton ID="LinkButton1" runat="server" CommandName="Insert">
<asp:Image runat="server" ID="Image1" ImageUrl="Images/ok.gif" AlternateText="insert" />
</asp:LinkButton>
<asp:LinkButton ID="LinkButton2" runat="server" CausesValidation="False" CommandName="Cancel">
<asp:Image runat="server" ID="Image6" ImageUrl="Images/cancel.gif" AlternateText="cancel" />
</asp:LinkButton>
<div class="inline-label">Color code:</div>
<asp:RadioButtonList runat="server" ID="RadioButtonList1" DataValueField="ID" CssClass="AppointmentTypeSelectorTable"
DataSourceID="AppointmentTypesDataSource" SelectedValue='<%# Bind("AppointmentTypeID") %>' DataTextField="Keyword"
RepeatDirection="Horizontal" DataTextFormatString="<span class='AppointmentTypeSelector rsAptType_{0}' onclick='onAppointmentTypeSelectorClick'></span>">
</asp:RadioButtonList>
<asp:LinkButton ID="LinkButton3" runat="server" CommandName="More" CssClass="rsAdvancedEditLink">Advanced</asp:LinkButton>
</div>
</InlineInsertTemplate>
This template is more complicated, including a text box for entering the appointment subject, insert and cancel buttons that call client-side functions to insert or cancel,a link button to bring up the edit form, and a radio button list with color codes. To initialize the radio button list, use the FormCreated event:
protected void RadScheduler1_FormCreated(object sender, SchedulerFormCreatedEventArgs e)
{
if (e.Container.Mode == SchedulerFormMode.Insert)
{
RadioButtonList list =
(RadioButtonList)e.Container.FindControl("AppointmentTypeRadioButtonList");
list.SelectedIndex = 0;
}
}

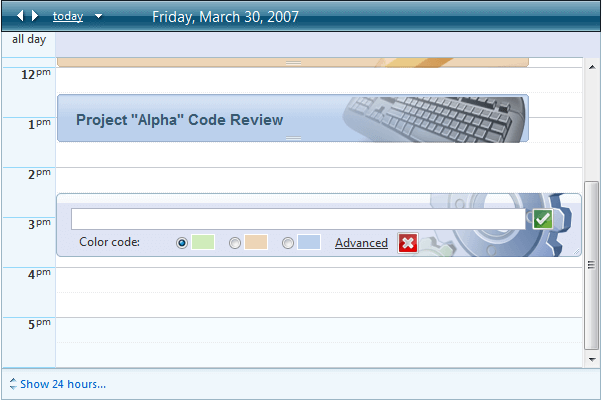

The result of the above code is shown below:
InlineEditTemplate
<InlineEditTemplate>
<div id="InlineEditTemplate" class="rsCustomAppointmentContainer <%# Eval("AppointmentType.Text") %>">
<asp:TextBox ID="TitleTextBox" runat="server" Text='<%# Bind("Subject") %>' Width="90%" TextMode="MultiLine" Height="20px"></asp:TextBox>
<asp:LinkButton ID="LinkButton4" runat="server" CommandName="Update">
<asp:Image runat="server" ID="Image3" ImageUrl="Images/ok.gif" AlternateText="update" />
</asp:LinkButton>
<asp:LinkButton ID="LinkButton5" runat="server" CausesValidation="False" CommandName="Cancel">
<asp:Image runat="server" ID="Image7" ImageUrl="Images/cancel.gif" AlternateText="cancel" />
</asp:LinkButton>
<div class="inline-label">Color code:</div>
<asp:RadioButtonList runat="server" ID="RadioButtonList2" DataValueField="ID" CssClass="AppointmentTypeSelectorTable"
DataSourceID="AppointmentTypesDataSource" SelectedValue='<%# Bind("AppointmentTypeID") %>' DataTextField="Keyword"
RepeatDirection="Horizontal" DataTextFormatString="<span class='AppointmentTypeSelector rsAptType_{0}' onclick='onAppointmentTypeSelectorClick'></span>">
</asp:RadioButtonList>
<asp:LinkButton ID="InsertMoreButton" runat="server" CommandName="More" CssClass="rsAdvancedEditLink">Advanced</asp:LinkButton>
</div>
</InlineEditTemplate>

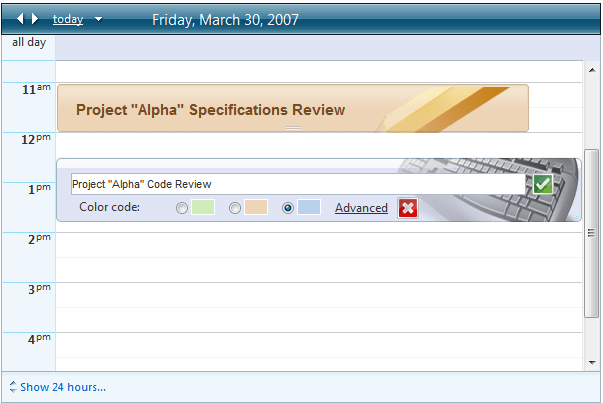

The edit template is similar to the insert template, except that it does not need to initialize controls because they can get initial values from the bound fields:
AdvancedInsertTemplate
<AdvancedInsertTemplate>
<div id="Div1">
<div id="Div2" class="technical">
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label1" AssociatedControlID="TitleTextBox" runat="server" CssClass="inline-label">Description</asp:Label>
<asp:TextBox ID="TextBox2" Rows="5" Columns="20" runat="server" Text='<%# Bind("Subject") %>' Width="95%" TextMode="MultiLine"></asp:TextBox><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label2" AssociatedControlID="StartInput" runat="server" CssClass="inline-label">Start time:</asp:Label>
<telerik:RadDateInput RenderMode="Lightweight" ID="StartInput" SelectedDate='<%# Bind("Start") %>' runat="server"></telerik:RadDateInput><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label3" AssociatedControlID="EndInput" runat="server" CssClass="inline-label">End time:</asp:Label>
<telerik:RadDateInput RenderMode="Lightweight" ID="EndInput" SelectedDate='<%# Bind("End") %>' runat="server"></telerik:RadDateInput><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<div class="inline-label">Color code:</div>
<div id="Div3">
<asp:RadioButtonList runat="server" ID="RadioButtonList3" DataValueField="ID" CssClass="AppointmentTypeSelectorTable"
DataSourceID="AppointmentTypesDataSource" SelectedValue='<%# Bind("AppointmentTypeID") %>' DataTextField="Keyword"
RepeatDirection="Horizontal" DataTextFormatString="<span class='AppointmentTypeSelector rsAptType_{0}' onclick='onAppointmentTypeSelectorClick'></span>">
</asp:RadioButtonList>
</div>
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:CheckBox ID="CheckBox1" runat="server" Text="Repeat for 10 days" />
</div>
<div class="qsfexAdvEditControlWrapper" style="text-align: right">
<asp:LinkButton ID="InsertButton" runat="server" CommandName="Insert">
<asp:Image runat="server" ID="Image4" ImageUrl="Images/ok.gif" AlternateText="update" /></asp:LinkButton>
<asp:LinkButton ID="InsertCancelButton" runat="server" CausesValidation="False" CommandName="Cancel">
<asp:Image runat="server" ID="Image5" ImageUrl="Images/cancel.gif" AlternateText="cancel" /></asp:LinkButton>
</div>
</div>
</div>
</AdvancedInsertTemplate>
FormCreated
protected void RadScheduler1_FormCreated(object sender, SchedulerFormCreatedEventArgs e)
{
RadScheduler scheduler = (RadScheduler)sender;
if (e.Container.Mode == SchedulerFormMode.Insert ||
e.Container.Mode == SchedulerFormMode.AdvancedInsert)
{
RadioButtonList list = (RadioButtonList)e.Container.FindControl("AppointmentTypeRadioButtonList");
list.SelectedIndex = 0;
}
if (e.Container.Mode == SchedulerFormMode.AdvancedInsert)
{
TextBox subjectBox = (TextBox)e.Container.FindControl("SubjectTextBox");
subjectBox.Text = e.Appointment.Subject;
RadDateInput startInput = (RadDateInput)e.Container.FindControl("StartInput");
startInput.DateFormat = scheduler.EditFormDateFormat + " " + scheduler.EditFormTimeFormat;
startInput.SelectedDate = RadScheduler1.DisplayToUtc(e.Appointment.Start);
RadDateInput endInput = (RadDateInput)e.Container.FindControl("EndInput");
endInput.DateFormat = scheduler.EditFormDateFormat + " " + scheduler.EditFormTimeFormat;
endInput.SelectedDate = RadScheduler1.DisplayToUtc(e.Appointment.End);
}
}
In addition, we need to add an AppointmentCommand event handler to create the recurrence rule if the Repeat CheckBox is checked:
protected void RadScheduler1_AppointmentCommand(object sender, AppointmentCommandEventArgs e)
{
if (e.CommandName == "Insert")
{
CheckBox repeatCheck = (CheckBox)e.Container.FindControl("RepeatCheckBox");
if (repeatCheck != null && repeatCheck.Checked)
{
RecurrenceRange range = new RecurrenceRange();
range.Start = RadScheduler1.DisplayToUtc(e.Container.Appointment.Start);
range.EventDuration = e.Container.Appointment.Duration;
range.MaxOccurrences = 10;
DailyRecurrenceRule rule = new DailyRecurrenceRule(1, range);
e.Container.Appointment.RecurrenceRule = rule.ToString();
}
}
}

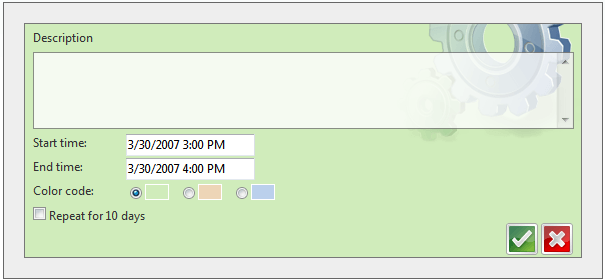

The result of the above code is shown below:
AdvancedEditTemplate
<AdvancedEditTemplate>
<div id="qsfexAdvEditWrapper">
<div id="qsfexAdvEditInnerWrapper" class='<%# Eval("AppointmentType.Text") %>'>
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label4" AssociatedControlID="TitleTextBox" runat="server" CssClass="inline-label">Description</asp:Label>
<asp:TextBox ID="SubjectTextBox" Rows="5" Columns="20" runat="server" Text='<%# Bind("Subject") %>' Width="95%" TextMode="MultiLine"></asp:TextBox><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label5" AssociatedControlID="StartInput" runat="server" CssClass="inline-label">Start time:</asp:Label>
<telerik:RadDateInput RenderMode="Lightweight" ID="StartInput" SelectedDate='<%# Bind("Start") %>' runat="server"></telerik:RadDateInput><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:Label ID="Label6" AssociatedControlID="EndInput" runat="server" CssClass="inline-label">End time:</asp:Label>
<telerik:RadDateInput RenderMode="Lightweight" ID="EndInput" SelectedDate='<%# Bind("End") %>' runat="server"></telerik:RadDateInput><br />
</div>
<div class="qsfexAdvEditControlWrapper">
<div class="inline-label">Color code:</div>
<div id="qsfexAdvEditColorCodeChooser">
<asp:RadioButtonList runat="server" ID="AppointmentTypeRadioButtonList" DataValueField="ID" CssClass="AppointmentTypeSelectorTable"
DataSourceID="AppointmentTypesDataSource" SelectedValue='<%# Bind("AppointmentTypeID") %>' DataTextField="Keyword"
RepeatDirection="Horizontal" DataTextFormatString="<span class='AppointmentTypeSelector rsAptType_{0}' onclick='onAppointmentTypeSelectorClick'></span>">
</asp:RadioButtonList>
</div>
</div>
<div class="qsfexAdvEditControlWrapper">
<asp:CheckBox ID="RepeatCheckBox" runat="server" Text="Repeat for 10 days" />
</div>
<div class="qsfexAdvEditControlWrapper" style="text-align: right">
<asp:LinkButton ID="UpdateButton" runat="server" CommandName="Update">
<asp:Image runat="server" ID="insertImage" ImageUrl="Images/ok.gif" AlternateText="update" /></asp:LinkButton>
<asp:LinkButton ID="UpdateCancelButton" runat="server" CausesValidation="False" CommandName="Cancel">
<asp:Image runat="server" ID="Image2" ImageUrl="Images/cancel.gif" AlternateText="cancel" /></asp:LinkButton>
</div>
</div>
</div>
</AdvancedEditTemplate>
FormCreated
protected void RadScheduler1_FormCreated(object sender, SchedulerFormCreatedEventArgs e)
{
if (e.Container.Mode == SchedulerFormMode.Insert ||
e.Container.Mode == SchedulerFormMode.AdvancedInsert)
{
RadioButtonList list =
(RadioButtonList)e.Container.FindControl("UsersRadioButtonList");
list.SelectedIndex = 0;
}
if (e.Container.Mode == SchedulerFormMode.AdvancedInsert ||
e.Container.Mode == SchedulerFormMode.AdvancedEdit)
{
TextBox subjectBox = (TextBox)e.Container.FindControl("SubjectTextBox");
subjectBox.Text = e.Appointment.Subject;
RadDateInput startInput = (RadDateInput)e.Container.FindControl("StartInput");
startInput.DateFormat = RadScheduler1.EditFormDateFormat + " " + RadScheduler1.EditFormTimeFormat;
startInput.SelectedDate = RadScheduler1.DisplayToUtc(e.Appointment.Start);
RadDateInput endInput = (RadDateInput)e.Container.FindControl("EndInput");
endInput.DateFormat = RadScheduler1.EditFormDateFormat + " " + RadScheduler1.EditFormTimeFormat;
endInput.SelectedDate = RadScheduler1.DisplayToUtc(e.Appointment.End);
}
}
We do not need to make any changes to the AppointmentCommand event handler for handling the recurring event check box.The existing event handler that we added for the AdvancedInsertTemplate already handles the "Insert" command.

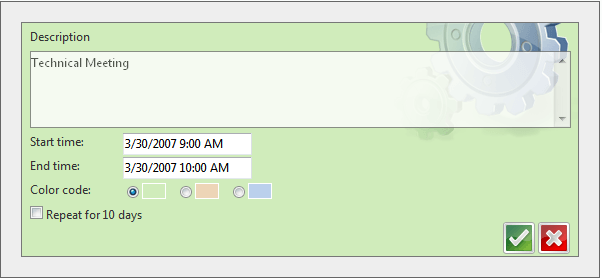

The result of the above code is shown below:

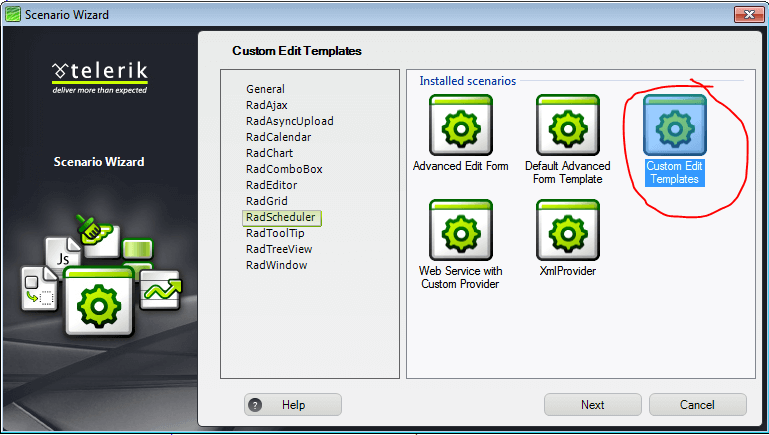

In addition you can find a full sample project for "Custom Edit Templates" by adding a Scenario Template. In this exampleproject you can also learn how to display appointments by resources. Follow these steps to add the scenario:
-
Right-click on the Web site name in Solution Explorer window. Select "RadControls for ASP.NET AJAX". From the submenu choose "Add RadScheduler Scenario".
-
Scenario Wizard appears with different scenarios. Choose "Custom Edit Templates":
-
Follow the wizard by pressing**"Next"** button and finally press "Finish". A new .aspx page will be added to your project, depending on your choice in the Scenario Wizard. All necessary references will be added toyour project.
-
Press Ctrl+F5 and run the application.
