How to Configure Size of Rotator with Buttons

This help article illustrates how to properly configure the size of a rotator with buttons so that the items are not cut or misaligned on initial showing or during animiation playing.

Configure Rotator with Buttons

To configure a rotator with buttons, you should do the following:

  • Define the proper dimensions for the rotator, its items and item template as per the RadRotator Dimensions Configuration article.
  • Determine the size of the buttons and just add it to the rotator's width/height.

For example, if we want to show four items (100x100 pixels) in a horizontal rotator with buttons for the black skin with Lightweight render mode, we can follow the steps below:

  1. Set the single item's dimensions - ItemWidth="100" ItemHeight="100".

  2. Set the item template dimensions - .itemTemplate {width: 100px; height: 100px;}.

  3. Inspect the size of a single button - 30x30.

    rotator-size-buttons

  4. Calculate and set the rotator's width - (4 items * 100) + 2 buttons * 30 = 400 + 60 = 460px.

All of the explained logic stays the same if the ScrollDirection="Up, Down" is set, but it should be applied to the Height and ItemHeight properties, respectively.

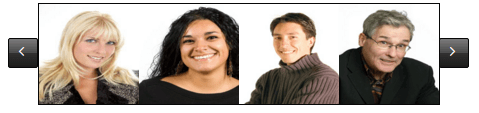

Figure 1: A snapshot of a rotator with buttons that has 4 items. The code that creates it is available in Example 1.

rotator-size-buttons

Example 1: Configure rotator with button that will have 4 items.

CSS
<style type="text/css">
	body {
		font-size: 14px;
	}

	.itemTemplate {
		width: 100px;
		height: 100px;
	}
</style>
ASP.NET
<telerik:RadRotator ID="RadRotator1" runat="server" Width="460" ItemWidth="100" Height="100" RotatorType="Buttons" RenderMode="Lightweight" Skin="Black"
	ItemHeight="100" DataSourceID="SqlDataSource1" FrameDuration="1000">
	<ItemTemplate>
		<asp:Image CssClass="itemTemplate" ID="Image1" runat="server" ImageUrl='<%# Eval("CustomerID", "~/Img/Northwind/Customers/{0}.jpg") %>'
			AlternateText="IMAGE" />
	</ItemTemplate>
</telerik:RadRotator>

<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
	SelectCommand="SELECT [CustomerID] FROM [Customers]"></asp:SqlDataSource>

You can find the list of the button sizes for the different skins in Classic and Lightweight render mode in List 1 and List 2. The base is 14px font-size.

List 1: RadRotator button sizes for all the skins with "Lightweight" render mode.

  • Bootstrap - 34px
  • Material - 38px
  • The rest of the skins - 30px

List 2: RadRotator button sizes for all the skins with "Classic" render mode.

  • Glow, Silk, MetroTouch, BlackMetroTouch - 28px
  • Bootstrap - 34px
  • The rest of the skins - 20px

Example (RadRotatorSizeConfigurator Class Implementation)

In the example below you can see a helper class (i.e., RadRotatorSizeConfigurator) that automatically calculates and sets the rotator's width based on the desired number of items, the set skin and render mode. The class accepts three parameters: the instance of the rotator, the number of the visible items in the view port and the skin (optional).

Example 2: Configure rotator with buttons that has 4 items (100px x 100px) per view. The method that calculates the actual width is shown in Example 3.

CSS
	<style type="text/css">
		body {
			font-size: 14px;
		}

		.itemTemplate {
			width: 100px;
			height: 100px;
		}
	</style>
ASP.NET
<telerik:RadRotator ID="RadRotator1" runat="server" ItemWidth="100" Height="100" RotatorType="Buttons" RenderMode="Lightweight" Skin="Black"
	ItemHeight="100"  DataSourceID="SqlDataSource1" FrameDuration="1000">
	<ItemTemplate>
		<asp:Image CssClass="itemTemplate" ID="Image1" runat="server" ImageUrl='<%# Eval("CustomerID", "~/Img/Northwind/Customers/{0}.jpg") %>'
			AlternateText="IMAGE" />
	</ItemTemplate>
</telerik:RadRotator>

<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
	SelectCommand="SELECT [CustomerID] FROM [Customers]"></asp:SqlDataSource>
C#
protected void Page_Load(object sender, EventArgs e)
{
	RadRotatorSizeConfigurator.ConfigureSize(RadRotator1, 4);
}

Example 3: The implementation of the RadRotatorSizeConfigurator class that determines and sets the actual size of the rotator for the particular skin.

C#
public static class RadRotatorSizeConfigurator
{
	const int classicButtonStandardSize = 20;
	const int liteButtonStandardSize = 30;

	static Dictionary<string, int> largeButtonsSkins = new Dictionary<string, int>()
	{
		{ "Glow", 28 },
		{ "Silk", 28 },
		{ "MetroTouch", 28 },
		{ "BlackMetroTouch", 28 },
		{ "Bootstrap", 34 },
		{ "LiteBootstrap", 34 },
		{ "LiteMaterial", 38 }
	};
	static RotatorType[] buttonModes = { RotatorType.Buttons, RotatorType.ButtonsOver, RotatorType.SlideShowButtons, RotatorType.CarouselButtons };
	static RotatorType[] animationModes = { RotatorType.Carousel, RotatorType.CarouselButtons, RotatorType.CoverFlow, RotatorType.CoverFlowButtons };

	public static void ConfigureSize(RadRotator rotator, int itemsPerView)
	{
		ConfigureSize(rotator, itemsPerView, GetCurrentSkin());
	}

	public static void ConfigureSize(RadRotator rotator, int itemsPerView, string selectedSkin)
	{
		if (Array.IndexOf(animationModes, rotator.RotatorType) != -1) return;

		int buttonsSize = GetButtonsSize(rotator, selectedSkin);

		bool isHorizontal = (rotator.ScrollDirection == (RotatorScrollDirection.Left | RotatorScrollDirection.Right) ||
					rotator.ScrollDirection == RotatorScrollDirection.Right ||
					rotator.ScrollDirection == RotatorScrollDirection.Left);

		if (isHorizontal)
		{
			rotator.Width = Unit.Pixel(Convert.ToInt32(rotator.ItemWidth.Value) * itemsPerView + buttonsSize);
			rotator.Height = rotator.ItemHeight;
		}
		else
		{
			rotator.Height = Unit.Pixel(Convert.ToInt32(rotator.ItemHeight.Value) * itemsPerView + buttonsSize);
			rotator.Width = rotator.ItemWidth;
		}
	}

	public static int GetButtonsSize(RadRotator rotator)
	{
		return GetButtonsSize(rotator, GetCurrentSkin());
	}

	public static int GetButtonsSize(RadRotator rotator, string selectedSkin)
	{
		int buttonStandardSize;
		if (rotator.ResolvedRenderMode == RenderMode.Lightweight)
		{
			selectedSkin = "Lite" + selectedSkin;
			buttonStandardSize = liteButtonStandardSize;
		}
		else
		{
			buttonStandardSize = classicButtonStandardSize;
		}

		int buttonSize = (!largeButtonsSkins.ContainsKey(selectedSkin)) ? buttonStandardSize : largeButtonsSkins[selectedSkin];
		int buttonsCount = 1;
		if (Array.IndexOf(buttonModes, rotator.RotatorType) == -1)
		{
			buttonsCount = 0;
		}
		else if (rotator.ScrollDirection == (RotatorScrollDirection.Left | RotatorScrollDirection.Right) ||
				 rotator.ScrollDirection == (RotatorScrollDirection.Down | RotatorScrollDirection.Up))
		{
			buttonsCount = 2;
		}

		return buttonSize * buttonsCount;
	}

	private static string GetCurrentSkin()
	{
		return (string)((((Page)HttpContext.Current.Handler).FindControl("RadRotator1") as RadRotator).Skin ?? ConfigurationManager.AppSettings["Telerik.Skin"]);
	}
}
