Range Grouping

RadPivotGrid supports three types of grouping by ranges for its row and column fields: DateTime, numeric and custom.

DateTime range grouping

RadPivotGrid can combine ranges of date time row/column groups into the following time spans: Year,Quarter, Month, Day.

In order to switch on this feature, just set the GroupInterval property of the row/column field to the corresponding value given by the PivotGridGroupInterval enumeration.

The following mark-up defines a column field that will combine groups containing SafetyLeveldata into four-month periods.

ASPNET
<telerik:PivotGridColumnField DataField="SellStartDate" GroupInterval="Quarter"
	ShowGroupsWhenNoData="false">
</telerik:PivotGridColumnField>

DateTime grouping

Numeric range grouping

RadPivotGrid also sports the capability to aggregate numeric row/column groups into custom numeric ranges. For any field that needs to combine its groups into numeric ranges, the GroupInterval property should beset to Numeric whereas the GroupIntervalNumericRange should be give the numeric span of the interval. The latter accepts double values.

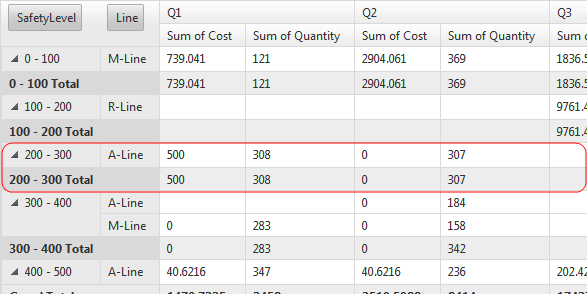

The row field defined below will aggregate groups of SafetyLevel data into ranges as follows: 0-100, 100-200,200-300 etc.

ASPNET
<telerik:PivotGridRowField DataField="SafetyLevel" GroupInterval="Numeric"
	GroupIntervalNumericRange="100" ShowGroupsWhenNoData="false">
</telerik:PivotGridRowField>

Numeric Grouping

ShowGroupsWhenNoData

The ShowGroupsWhenNoData property is applicable to PivotGridRowField and PivotGridColumnField. When this property is set to false (the default value), RadPivotGrid will not display the empty (row/column) groups.

ASPNET
<telerik:PivotGridColumnField DataField="Make" ShowGroupsWhenNoData="false">
</telerik:PivotGridColumnField>
<telerik:PivotGridRowField DataField="Type" ShowGroupsWhenNoData="false">
</telerik:PivotGridRowField>

pivotgrid-range-grouping 3

Custom range grouping

The last but not least range grouping feature of RadPivotGrid’s provides the flexibility to implement a custom way of grouping any row/column field group values. The approach to custom grouping is programmatic and includes the creation of a new pivot grid field class that should inherit the PivotGridColumnField (for column fields) or the PivotGridRowField (for row fields) class. In the child class theGroupDescription property should be overridden to return an instance of a custom GroupDescription class. The latter must inherit thePropertyGroupDescription class and override theGroupNameFromItem method where the custom grouping logic is to be implemented.

The GroupNameFromItem method must return a new instance of a user-defined class/struct object that implements theIEquatable, **IComparable**and IComparable interfaces. The class/struct should also define a hash that’s unique for each group range and override the ToString() method to return the unique name for each group interval constructed in compliance with the custom grouping logic.

In addition, the CreateInstanceCore method is to be overridden obligatorily to return a new instance of the custom group description class.

Finally, when the custom group description class defines new properties, they have to be cloned in the CloneCore method.

An example of a custom-defined field that provides a specific, user-tailored range grouping is given below. The CustomDateTimeField will group date-time values into half-year periods.

C#
	public class CustomDateTimeField : PivotGridColumnField
	{
	    private GroupDescription groupDescription;

	    public CustomDateTimeField()
	    {
	        //
	        // TODO: Add constructor logic here
	        //
	    }

	    public override GroupDescription GroupDescription
	    {
	        get
	        {
	            if (groupDescription == null)
	            {
	                groupDescription = new CustomDateTimeGroupDescription();
	            }
	            return groupDescription;
	        }
	        set
	        {
	            base.GroupDescription = value;
	        }
	    }
	}

	public class CustomDateTimeGroupDescription : PropertyGroupDescriptionBase
	{
	    protected override object GroupNameFromItem(object item, int level)
	    {
	        var baseValue = base.GroupNameFromItem(item, level);
	        DateTime value = (DateTime)baseValue;
	        return new HalfYearGroup((value.Month) / 6 + 1);
	    }

	    protected override Cloneable CreateInstanceCore()
	    {
	        return new CustomDateTimeGroupDescription();
	    }

	    protected override void CloneOverride(Cloneable source)
	    {
	        CustomDateTimeGroupDescription castedSource = source as CustomDateTimeGroupDescription;
	        if (castedSource != null)
	        {
	            //clone any custom properties that are required by the custom group description class
	            // this.Step = castedSource.Step;
	        }
	    }
	}

	public class HalfYearGroup : IComparable, IComparable<HalfYearGroup>, IEquatable<HalfYearGroup>
	{
	    public HalfYearGroup()
	    {

	    }

	    internal HalfYearGroup(int half)
	    {
	        this.Half = half;
	    }

	    public int Half
	    {
	        get;
	        set;
	    }

	    public override string ToString()
	    {
	        return string.Format(CultureInfo.InvariantCulture.NumberFormat, "H{0}", this.Half);
	    }

	    public override int GetHashCode()
	    {
	        return this.Half * 7933;
	    }

	    public override bool Equals(object obj)
	    {
	        return this.Equals(obj as HalfYearGroup);
	    }

	    public int CompareTo(object obj)
	    {
	        if (obj is HalfYearGroup)
	        {
	            return this.CompareTo(obj as HalfYearGroup);
	        }

	        throw new ArgumentException("Can not compare.", "obj");
	    }

	    public int CompareTo(HalfYearGroup other)
	    {
	        if (other == null)
	        {
	            throw new ArgumentNullException("other");
	        }
	        return this.Half.CompareTo(other.Half);
	    }

	    public bool Equals(HalfYearGroup other)
	    {
	        return other != null && this.Half == other.Half;
	    }
	}


The result can be seen in the Range Grouping demo linked in the Related Resources section below.
