Horizontal Orientation

Horizontal Orientation is a new feature available in RadOrgChart since Q1 2015 release. Setting the RadOrgChart's Orientation property to Horizontal expands all Nodes horizontally. This feature is available if the control's Lightweight RenderMode is selected.

The following examples demonstrate how to use Horizontal Orientation with Items Grouping and SimpleBinding.

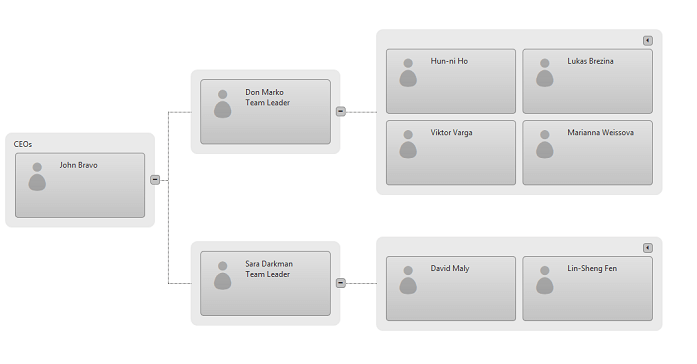

Figure 1: Horizontal Orientation of RadOrgChart with Items Grouping

orgchart-horizontal-orientation

ASPNET
<telerik:RadOrgChart runat="server" ID="RadOrgChart1" RenderMode="Lightweight" Orientation="Horizontal"
    EnableCollapsing="true" EnableDrillDown="true" EnableGroupCollapsing="true">
    <Nodes>
        <telerik:OrgChartNode>
            <RenderedFields>
                <telerik:OrgChartRenderedField Text="CEOs" />
            </RenderedFields>
            <GroupItems>
                <telerik:OrgChartGroupItem Text="John Bravo" />
            </GroupItems>
            <Nodes>
                <telerik:OrgChartNode>
                    <GroupItems>
                        <telerik:OrgChartGroupItem Text="Don Marko">
                            <RenderedFields>
                                <telerik:OrgChartRenderedField Text="Team Leader" />
                            </RenderedFields>
                        </telerik:OrgChartGroupItem>
                    </GroupItems>
                    <Nodes>
                        <telerik:OrgChartNode ColumnCount="2">
                            <GroupItems>
                                <telerik:OrgChartGroupItem Text="Hun-ni Ho" />
                                <telerik:OrgChartGroupItem Text="Lukas Brezina" />
                                <telerik:OrgChartGroupItem Text="Viktor Varga" />
                                <telerik:OrgChartGroupItem Text="Marianna Weissova" />
                            </GroupItems>
                        </telerik:OrgChartNode>
                    </Nodes>
                </telerik:OrgChartNode>
                <telerik:OrgChartNode>
                    <GroupItems>
                        <telerik:OrgChartGroupItem Text="Sara Darkman">
                            <RenderedFields>
                                <telerik:OrgChartRenderedField Text="Team Leader" />
                            </RenderedFields>
                        </telerik:OrgChartGroupItem>
                    </GroupItems>
                    <Nodes>
                        <telerik:OrgChartNode ColumnCount="2">
                            <GroupItems>
                                <telerik:OrgChartGroupItem Text="David Maly" />
                                <telerik:OrgChartGroupItem Text="Lin-Sheng Fen" />
                            </GroupItems>
                        </telerik:OrgChartNode>
                    </Nodes>
                </telerik:OrgChartNode>
            </Nodes>
        </telerik:OrgChartNode>
    </Nodes>
</telerik:RadOrgChart>

Figure 2: Horizontal Orientation of RadOrgChart in SimpleBinding

orgchart-horizontal-orientation 2

ASPNET
<telerik:RadAjaxPanel runat="server" ID="RadAjaxPanel" LoadingPanelID="RadAjaxLoadingPanel1">
    <asp:HiddenField runat="server" ID="SessionID" />
    <telerik:RadOrgChart ID="RadOrgChart1" runat="server" RenderMode="Lightweight" Orientation="Horizontal" DataFieldID="EmployeeID" DataFieldParentID="ReportsTo"
        DataTextField="FullName">
    </telerik:RadOrgChart>
</telerik:RadAjaxPanel>
C#
private DataTable employees;

protected override void OnInit(EventArgs e)
{
    //added to prevent incorrect reorder (e.g if it is navigated to another page and returns with back button - IE issue)
    Response.Cache.SetCacheability(HttpCacheability.NoCache);

    base.OnInit(e);
}

protected void Page_Load(object sender, EventArgs e)
{
    Session.Timeout = 30;
    if (!IsPostBack)
    {
        //avoiding sharing Session variables between tabs in one browser
        SessionID.Value = Guid.NewGuid().ToString();
    }

    RadOrgChart1.NodeDrop += new Telerik.Web.UI.OrgChartNodeDropEventHandler(RadOrgChart1_NodeDrop);

    if (Session[SessionID.Value + "EmployeesSimpleBindingCS"] == null || !IsPostBack)
    {
        CreateEmployees();
    }
    else
        employees = Session[SessionID.Value + "EmployeesSimpleBindingCS"] as DataTable;

    RadOrgChart1.RenderedFields.ItemFields.Add(new Telerik.Web.UI.OrgChartRenderedField() { DataField = "Position" });
    RadOrgChart1.DataSource = employees;
    RadOrgChart1.DataBind();
}

private void CreateEmployees()
{
    employees = new DataTable();
    employees.Columns.Add("EmployeeID");
    employees.Columns.Add("ReportsTo");
    employees.Columns.Add("FullName");
    employees.Columns.Add("Position");

    employees.Rows.Add(new string[] { "1", null, "Robert C. King", "Director of Marketing" });
    employees.Rows.Add(new string[] { "2", "1", "Laura Callahan", "Brand Manager" });
    employees.Rows.Add(new string[] { "3", "2", "Anne Dodsworth", "Marketing Executive" });
    employees.Rows.Add(new string[] { "4", "1", "Kevin Buchanan", "Senior Graphic Designer" });
    employees.Rows.Add(new string[] { "5", "4", "Kate Buchanan", "Junior Graphic Designer" });
    Session[SessionID.Value + "EmployeesSimpleBindingCS"] = employees;
}

void RadOrgChart1_NodeDrop(object sender, Telerik.Web.UI.OrgChartNodeDropEventArguments e)
{
    var rows = from myRow in employees.AsEnumerable() where myRow.Field<string>("EmployeeID") == e.SourceNode.ID select new { values = myRow };

    foreach (var row in rows)
    {
        row.values.SetField<string>("ReportsTo", e.DestinationNode.ID);
    }

    Session[SessionID.Value + "EmployeesSimpleBindingCS"] = employees;

    RadOrgChart1.DataBind();
}
