Server Templates

NodeTemplate

You can use the NodeTemplate for both setting template to a single navigation node and to all nodes in a navigation(applied as global template). For example you can set a global template to all navigation nodes and if you need to further customize only a single orseveral nodes you can do so by applying the NodeTemplate again only to the needed nodes. This can be done in the TemplateNeeded event.

If a node has a template, it will not render an anchor (<a>) with the NavigateUrl property. If you want the node to act as an anchor, you should add the desired hyperlink in the template.

Example

The following example (Figure 1.) shows a navigation that uses a global template for all parent and child nodes:

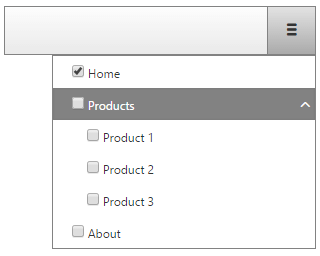

Figure 1: Using NodeTemplate as a global template applied to all nodes.

navigation-server-template-runtime

ASPNET
<telerik:RadNavigation runat="server" ID="RadNavigation2"  DataKeyNames="Text,Checked" DataFieldID="Id" DataFieldParentID="ParentId" DataTextField="Text">
</telerik:RadNavigation>
C#
protected void Page_Load(object sender, EventArgs e)
{
	List<CustomNavigatorNode> nodes = new List<CustomNavigatorNode>();

	nodes.Add(new CustomNavigatorNode(1, "Home", true, "http://localhost"));
	nodes.Add(new CustomNavigatorNode(2, "Products", false, "http://localhost/Products"));
	nodes.Add(new CustomNavigatorNode(3, "About", false, "http://localhost/About"));
	nodes.Add(new CustomNavigatorNode(4, "Product 1", false, "http://localhost/Product-1", 2));
	nodes.Add(new CustomNavigatorNode(5, "Product 2", false, "http://localhost/Product-2", 2));
	nodes.Add(new CustomNavigatorNode(6, "Product 3", false, "http://localhost/Product-3", 2));

	RadNavigation1.DataSource = nodes;
	RadNavigation1.NodeTemplate = new CustomDataBoundTemplate();
	RadNavigation1.DataBind();
}

public class CustomDataBoundTemplate : ITemplate
{
	public void InstantiateIn(Control container)
	{
		CheckBox checkbox = new CheckBox();
		checkbox.ID = "CheckBox1";
		checkbox.DataBinding += delegate
		{
			NavigationNode bindingContainer = (NavigationNode)checkbox.BindingContainer;
			checkbox.Checked = (bool)bindingContainer.TemplateData["Checked"];
		};
		container.Controls.Add(checkbox);

		Label label = new Label();
		label.ID = "Label1";
		label.DataBinding += delegate
		{
			NavigationNode bindingContainer = (NavigationNode)label.BindingContainer;
			label.Text = bindingContainer.TemplateData["Text"].ToString();
		};
		container.Controls.Add(label);
		Label label1 = new Label();
		label1.ID = "Toggle";
		label1.CssClass = "rnvToggle radIcon";

		label1.DataBinding += delegate
		{
			NavigationNode bindingContainer = (NavigationNode)label1.BindingContainer;
			if (bindingContainer.Nodes.Count > 0)
			{
				label1.Visible = true;
			}
			else
			{
				label1.Visible = false;
			}
		};
		container.Controls.Add(label1);
	}
}

public class CustomNavigatorNode
{
	public int Id { get; set; }
	public string Text { get; set; }
	public bool Checked { get; set; }
	public string Url { get; set; }
	public int? ParentId { get; set; }

	public CustomNavigatorNode() { }

	public CustomNavigatorNode(int id, string text, bool isChecked, string url, int? parentId = null)
	{
		Id = id;
		Text = text;
		Checked = isChecked;
		Url = url;
		ParentId = parentId;
	}
}

See Also
