Right-to-left support
You can present the content of your grid instance in a right-to-left direction very easily. To provide RTL support for your grid, you merely need to set the Dir property for the MasterTableView/GridTableViews to RTL.
Here is an example:
ASP.NET
<telerik:RadGrid RenderMode="Lightweight" ID="RadGrid1" DataSourceID="SqlDataSource1" runat="server" Width="97%" AllowPaging="True"
PageSize="12" AllowSorting="True" ShowGroupPanel="True" AutoGenerateColumns="False"
GridLines="none" AllowFilteringByColumn="true">
<PagerStyle Mode="NextPrevNumericAndAdvanced"></PagerStyle>
<MasterTableView Width="100%" Dir="RTL">
<GroupByExpressions>
<telerik:GridGroupByExpression>
<SelectFields>
<telerik:GridGroupByField FieldAlias="Received" FieldName="Received" FormatString="{0:D}"
HeaderValueSeparator=" from date: "></telerik:GridGroupByField>
</SelectFields>
<GroupByFields>
<telerik:GridGroupByField FieldName="Received" SortOrder="Descending"></telerik:GridGroupByField>
</GroupByFields>
</telerik:GridGroupByExpression>
</GroupByExpressions>
<Columns>
<telerik:GridBoundColumn SortExpression="Received" HeaderText="Received" HeaderButtonType="TextButton"
DataField="Received" DataFormatString="{0:d}">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="From" HeaderText="From" HeaderButtonType="TextButton"
DataField="From">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="FolderName" HeaderText="Folder name" HeaderButtonType="TextButton"
DataField="FolderName">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="Size" HeaderText="Size" HeaderButtonType="TextButton"
DataField="Size">
</telerik:GridBoundColumn>
</Columns>
</MasterTableView>
<ClientSettings AllowDragToGroup="True">
<Selecting AllowRowSelect="True"></Selecting>
</ClientSettings>
</telerik:RadGrid>
</div>
<br />
<asp:SqlDataSource ID="SqlDataSource1" ConnectionString="<%$ ConnectionStrings:TelerikConnectionString %>"
ProviderName="System.Data.SqlClient"
SelectCommand="SELECT * FROM Mails" runat="server">
</asp:SqlDataSource>
You can find the above grid in the following online examples:
https://demos.telerik.com/aspnet-ajax/Grid/Examples/Styles/RightToLeft/DefaultCS.aspx
https://demos.telerik.com/aspnet-ajax/Grid/Examples/Styles/RightToLeft/DefaultVB.aspx

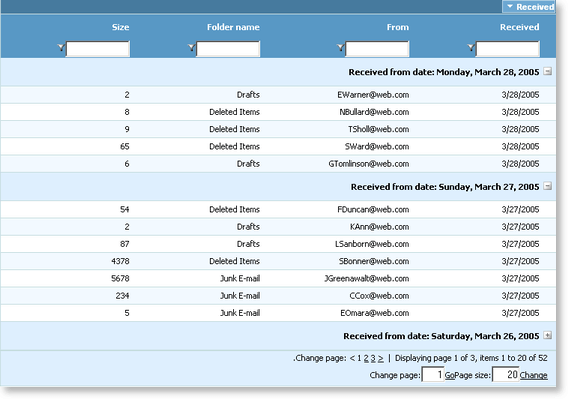

Here is an image of RadGrid in RTL mode.
All predefined grid skins (shipped with the grid installation) are optimized to work in RTL mode.
