Programmatic Creation

In this article you can find information and example for creating a Gauge controls from code-behind.

RadGauge can be created programmatically through its server-side properties:

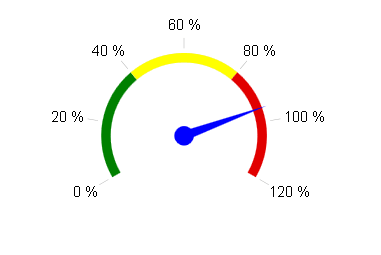

Figure 1: Programmatically created Gauge

Example 1: The code that renders the result from Figure 1.

ASP.NET

<asp:PlaceHolder runat="server" ID="PlaceHolder1"></asp:PlaceHolder>

C#

protected void Page_Init(object sender, EventArgs e)
{
	//Create new RadialGauge object
	RadRadialGauge radialGauge = new RadRadialGauge();
	radialGauge.ID = "radialGauge1";

	//Set Pointer properties
	radialGauge.Pointer.Value = (decimal)0.95;
	radialGauge.Pointer.Cap.Size = (float)0.10;
	radialGauge.Pointer.Cap.Color = System.Drawing.Color.Blue;
	radialGauge.Pointer.Color = System.Drawing.Color.Blue;

	//Set Min and Max values of the Scale
	radialGauge.Scale.Min = 0;

	//In order the Max value to be displayed it should be multiple of the MajorUnit
	radialGauge.Scale.Max = (decimal)1.2;
	radialGauge.Scale.MinorUnit = (decimal)0.5;
	radialGauge.Scale.MajorUnit = (decimal)0.2;

	//Set Minor and Major Ticks properties
	radialGauge.Scale.MinorTicks.Visible = false;
	radialGauge.Scale.MajorTicks.Size = 10;

	//Set Scale Labels properties
	radialGauge.Scale.Labels.Visible = true;
	radialGauge.Scale.Labels.Font = "15px Arial,Helvetica,sans-serif";
	radialGauge.Scale.Labels.Color = System.Drawing.Color.Black;
	radialGauge.Scale.Labels.Format = "P0";
	radialGauge.Scale.Labels.Position = Telerik.Web.UI.Gauge.ScaleLabelsPosition.Outside;

	//Create new GaugeRange object
	GaugeRange gr1 = new GaugeRange();

	//Set the properties of the new object
	gr1.From = 0;
	gr1.To = (decimal)0.4;
	gr1.Color = System.Drawing.Color.Green;

	GaugeRange gr2 = new GaugeRange();
	gr2.From = (decimal)0.4;
	gr2.To = (decimal)0.8;
	gr2.Color = System.Drawing.Color.Yellow;

	GaugeRange gr3 = new GaugeRange();
	gr3.From = (decimal)0.8;
	gr3.To = (decimal)1.2;
	gr3.Color = System.Drawing.Color.FromArgb(225, 0, 0);

	//Add Gauge objects to the RadialGauge
	radialGauge.Scale.Ranges.Add(gr1);
	radialGauge.Scale.Ranges.Add(gr2);
	radialGauge.Scale.Ranges.Add(gr3);

	//Add RadialGauge object to the div wrapper
	PlaceHolder1.Controls.Add(radialGauge);
}

VB

Protected Sub Page_Init(sender As Object, e As System.EventArgs) Handles Me.Init

	'Create new RadialGauge object
	Dim radialGauge As New RadRadialGauge()
	radialGauge.ID = "radialGauge1"

	'Set Pointer properties
	radialGauge.Pointer.Value = 0.95
	radialGauge.Pointer.Cap.Size = 0.1
	radialGauge.Pointer.Cap.Color = System.Drawing.Color.Blue
	radialGauge.Pointer.Color = System.Drawing.Color.Blue

	'Set Min and Max values of the Scale
	radialGauge.Scale.Min = 0

	'In order the Max value to be displayed it should be multiple of the MajorUnit
	radialGauge.Scale.Max = 1.2
	radialGauge.Scale.MinorUnit = 0.5
	radialGauge.Scale.MajorUnit = 0.2

	'Set Minor and Major Ticks properties
	radialGauge.Scale.MinorTicks.Visible = False
	radialGauge.Scale.MajorTicks.Size = 10

	'Set Scale Labels properties
	radialGauge.Scale.Labels.Visible = True
	radialGauge.Scale.Labels.Font = "15px Arial,Helvetica,sans-serif"
	radialGauge.Scale.Labels.Color = System.Drawing.Color.Black
	radialGauge.Scale.Labels.Format = "P0"
	radialGauge.Scale.Labels.Position = Telerik.Web.UI.Gauge.ScaleLabelsPosition.Outside

	'Create new GaugeRange object
	Dim gr1 As New GaugeRange()

	'Set the properties of the new object
	gr1.From = 0
	gr1.To = 0.4
	gr1.Color = System.Drawing.Color.Green

	Dim gr2 As New GaugeRange()
	gr2.From = 0.4
	gr2.To = 0.8
	gr2.Color = System.Drawing.Color.Yellow

	Dim gr3 As New GaugeRange()
	gr3.From = 0.8
	gr3.To = 1.2
	gr3.Color = System.Drawing.Color.FromArgb(225, 0, 0)

	'Add Gauge objects to the RadialGauge
	radialGauge.Scale.Ranges.Add(gr1)
	radialGauge.Scale.Ranges.Add(gr2)
	radialGauge.Scale.Ranges.Add(gr3)

	'Add RadialGauge object to the div wrapper
	PlaceHolder1.Controls.Add(radialGauge)

End Sub
