Working with Expressions

Apart from building complex filtering criteria by means of the visual UI, RadFilter also provides the option of adding filter and group expressions programmatically. Saving and loading expressions is also supported.

RadFilter FilterExpression types

The following table describes all filter expression types you can use:



FilterExpression type	Description
RadFilterBetweenFilterExpression	Represents Between RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterNotBetweenFilterExpression	Represents NotBetween RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterContainsFilterExpression	Represents Contains RadFilter filter expression.
RadFilterGreaterThanFilterExpression	Represents GreaterThan RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterGreaterThanOrEqualToFilterExpression	Represents GreaterThan or EqualTo RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterGroupFilterExpression	Represents a group of filter expressions.
RadFilterIsEmptyFilterExpression	Represents IsEmpty RadFilter filter expression.
RadFilterNotIsEmptyFilterExpression	Represents IsEmpty RadFilter filter expression.
RadFilterNotIsNullFilterExpression	Represents IsNotNull RadFilter filter expression.
RadFilterIsNullFilterExpression	Represents IsNull RadFilter filter expression.
RadFilterLessThanFilterExpression	Represents LessThan RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterLessThanOrEqualToFilterExpression	Represents LessThan or EqualTo RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterEqualToFilterExpression	Represents EqualTo RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterNotEqualToFilterExpression	Represents NotEqualTo RadFilter filter expression where T is the type of the field on which filter will be applied.
RadFilterStartsWithFilterExpression	Represents StartsWith RadFilter filter expression.
RadFilterEndsWithFilterExpression	Represents EndsWith RadFilter filter expression.

Adding RadFilter expressions programmatically

You can create filter expressions as well as group expressions in the code behind. Please note that the group expressions should first be added to the RootGroup, and the filter expressions to be added to them.

In the following sample it is shown how to programmatically create a expression that filters the Orders table for orders with ShipName that starts with an 'A' and OrderDate either in the previous month, or not specified:

ASPNET

<telerik:RadFilter RenderMode="Lightweight" runat="server" ID="RadFilter1" ExpressionPreviewPosition="Bottom">
    <FieldEditors>
        <telerik:RadFilterTextFieldEditor FieldName="ShipName" />
        <telerik:RadFilterDateFieldEditor FieldName="OrderDate" />
    </FieldEditors>
</telerik:RadFilter>
<asp:SqlDataSource runat="server" ID="SqlDataSource1" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
    SelectCommand="Select OrderID, OrderDate, ShipVia, ShipName, ShipAddress, ShipCity, ShipCountry FROM Orders">
</asp:SqlDataSource>

C#

protected void Page_Load(object sender, EventArgs e)
{
    if (!IsPostBack)
    {
        RadFilterStartsWithFilterExpression expr1 = new RadFilterStartsWithFilterExpression("ShipName");
        expr1.Value = "A";
        RadFilter1.RootGroup.AddExpression(expr1);

        RadFilterGroupExpression group1 = new RadFilterGroupExpression();
        group1.GroupOperation = RadFilterGroupOperation.Or;
        RadFilter1.RootGroup.AddExpression(group1);
        RadFilterBetweenFilterExpression<DateTime?> expr2 = new RadFilterBetweenFilterExpression<DateTime?>("OrderDate");
        expr2.LeftValue = DateTime.Now.AddMonths(-1);
        expr2.RightValue = DateTime.Now;
        group1.AddExpression(expr2);
        RadFilterIsNullFilterExpression expr3 = new RadFilterIsNullFilterExpression("OrderDate");
        group1.AddExpression(expr3);
    }
}

VB.NET

Protected Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
    If Not IsPostBack Then
        Dim expr1 As New RadFilterStartsWithFilterExpression("ShipName")
        expr1.Value = "A"
        RadFilter1.RootGroup.AddExpression(expr1)

        Dim group1 As New RadFilterGroupExpression()
        group1.GroupOperation = RadFilterGroupOperation.Or
        RadFilter1.RootGroup.AddExpression(group1)
        Dim expr2 As New RadFilterBetweenFilterExpression(Of System.Nullable(Of DateTime))("OrderDate")
        expr2.LeftValue = DateTime.Now.AddMonths(-1)
        expr2.RightValue = DateTime.Now
        group1.AddExpression(expr2)
        Dim expr3 As New RadFilterIsNullFilterExpression("OrderDate")
        group1.AddExpression(expr3)
    End If
End Sub

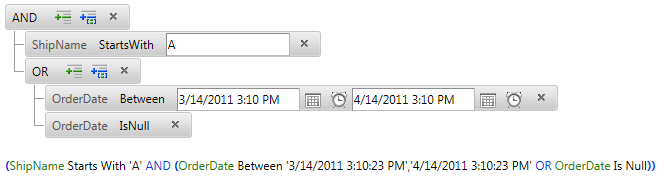

This will result in the following:
