Using RibbonBar Toolbar

In this article you can see how to configure the RibbonBar toolbar of RadEditor.

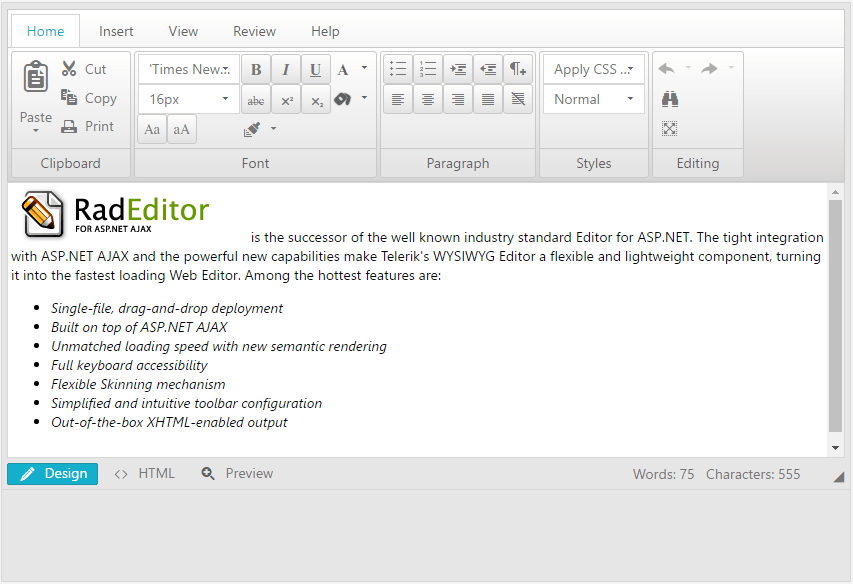

Figure 1: The default RibbonBar toolbar of RadEditor.

Enabling RibbonBar Modes

In order to enable the RibbonBar toolbar, you need to set the ToolbarMode property to one of the following values: RibbonBar, RibbonBarFloating, RibbonBarPageTop or RibbonBarShowOnFocus.

Example 1: Enabling RibbonBar toolbar

ASP.NET

<telerik:RadEditor runat="server" ID="RadEditor1" ToolbarMode="RibbonBar">
</telerik:RadEditor>

Changing Tools in RibbonBar

You can use the same ways to change the tools in the RibbonBar that you use in the Default toolbar. With RibbonBar it is essential to setup properly the Tab and Tag properties as these properties define the tabs and the sections to be rendered.

Example 2: Changing tools in RibbonBar in the markup

ASP.NET

<telerik:RadEditor runat="server" ID="RadEditor1" ToolbarMode="RibbonBar">
    <Tools>
        <telerik:EditorToolGroup Tag="Font" Tab="Home">
            <telerik:EditorTool name="FontName" />
            <telerik:EditorTool name="RealFontSize" />
        </telerik:EditorToolGroup>
        <telerik:EditorToolGroup Tag="Paragraph" Tab="Home">
            <telerik:EditorTool name="InsertUnorderedList" />
            <telerik:EditorTool name="InsertOrderedList" />
        </telerik:EditorToolGroup>
        <telerik:EditorToolGroup Tag="Tables" Tab="Insert">
            <telerik:EditorTool name="InsertTableLight" Size="large" />
            <telerik:EditorTool name="InsertTable" />
        </telerik:EditorToolGroup>
    </Tools>
</telerik:RadEditor>

Example 3: Changing tools in RibbonBar by using ToolsFile.xml file

ASP.NET

<telerik:RadEditor runat="server" ID="RadEditor1" ToolbarMode="RibbonBar" ToolsFile="ToolsFile.xml">
</telerik:RadEditor>

XML

<root>
    <tools name="Font" tab="Home">
        <tool name="FontName"/>
        <tool name="RealFontSize"/>
    </tools>
    <tools name="Paragraph" tab="Home">
        <tool name="InsertUnorderedList"/>
        <tool name="InsertOrderedList"/>
    </tools>
    <tools name="Tables" tab="Insert">
        <tool name="InsertTableLight" size="large"/>
        <tool name="InsertTable" />
    </tools>
</root>

To examine more of the XML configuration options available refer to the RadEditor with RibbonBar demo or the RibbonBar - Populating from Xml demo.

Example 4: Changing tools in RibbonBar from the code behind

ASP.NET

<telerik:RadEditor runat="server" ID="RadEditor1" ToolbarMode="RibbonBar">
</telerik:RadEditor>

C#

// Add new section group in Home tab
EditorToolGroup fontGroup = new EditorToolGroup();
// Define the place of the new toolgroup via the Tab property.
fontGroup.Tab = "Home";
// And the group by using the Tag property.
fontGroup.Tag = "Font";

fontGroup.Tools.Add(new EditorTool("FontName"));
fontGroup.Tools.Add(new EditorTool("RealFontSize"));

RadEditor1.Tools.Add(fontGroup);

EditorToolGroup paragraphGroup = new EditorToolGroup();
paragraphGroup.Tab = "Home";
paragraphGroup.Tag = "Paragraph";

paragraphGroup.Tools.Add(new EditorTool("InsertUnorderedList"));
paragraphGroup.Tools.Add(new EditorTool("InsertOrderedList"));

RadEditor1.Tools.Add(paragraphGroup);

EditorToolGroup tablesGroup = new EditorToolGroup();
tablesGroup.Tab = "Insert";
tablesGroup.Tag = "Tables";

// Add tool with large size
EditorTool tableLight = new EditorTool("InsertTableLight");
tableLight.Attributes["size"] = "Large";

tablesGroup.Tools.Add(tableLight);
tablesGroup.Tools.Add(new EditorTool("InsertTable"));

RadEditor1.Tools.Add(tablesGroup);

VB

' Add new section group in Home tab
Dim fontGroup As New EditorToolGroup()
' Define the place of the new toolgroup via the Tab property.
fontGroup.Tab = "Home"
' And the group by using the Tag property.
fontGroup.Tag = "Font"

fontGroup.Tools.Add(New EditorTool("FontName"))
fontGroup.Tools.Add(New EditorTool("RealFontSize"))

RadEditor1.Tools.Add(fontGroup)

Dim paragraphGroup As New EditorToolGroup()
paragraphGroup.Tab = "Home"
paragraphGroup.Tag = "Paragraph"

paragraphGroup.Tools.Add(New EditorTool("InsertUnorderedList"))
paragraphGroup.Tools.Add(New EditorTool("InsertOrderedList"))

RadEditor1.Tools.Add(paragraphGroup)

Dim tablesGroup As New EditorToolGroup()
tablesGroup.Tab = "Insert"
tablesGroup.Tag = "Tables"

' Add tool with large size
Dim tableLight As New EditorTool("InsertTableLight")
tableLight.Attributes("size") = "Large"

tablesGroup.Tools.Add(tableLight)
tablesGroup.Tools.Add(New EditorTool("InsertTable"))

RadEditor1.Tools.Add(tablesGroup)
