Tree
RadDiagram supports several tree layout based algorithms which are explained in this article.
"Tree" Layout Type
When the LayoutSettings’ Type property is set to "Tree" the diagram is organized in a hierarchical way and is typically used in organizational representations.
Tree Layout Specific Subtypes
The subtype further defines the layout type by specifying in greater detail the behavior expected by the layout algorithm. The Tree layout specific subtypes are radial tree layout, mind mapping and the classic tree diagrams.
Generic Tree
When organizing a diagram in a classic tree layout, you can specify its orientation by configuring one of the following subtypes:
-
Down—the root is arranged at the top and its children downwards.
-
Up—the root is arranged at the bottom and its children upwards.
-
Left—layout the root is arranged at the left and its children sideways to the right.
-
Right—layout the root is arranged at the right and its children sideways to the left.

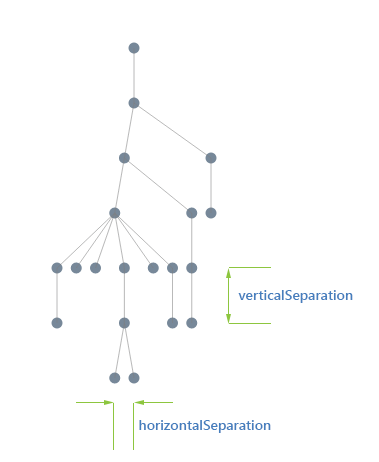

Figure 1: Tree-down Layout
Mindmap Tree
The Mindmap layout of RadDiagram is available in two possible directions, you can specify the desired one by choosing between these subtypes:
-
MindmapHorizontal—The root sits at the center and its children are spread equally to the left and right.
-
MindmapVertical—The root sits at the center and its children are spread equally above and below.

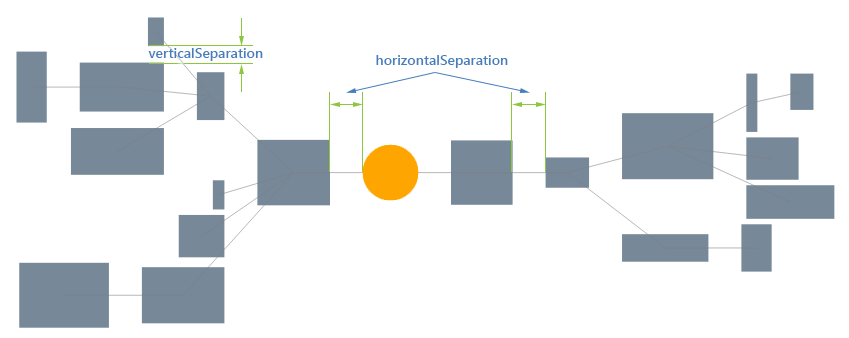

Figure 2: Mindmap-horizontal Layout
Radial Tree
When the subtype of a tree is set to Radial the root sits at the center and its children are spread radially around.
Figure 3: Radial-tree Layout
TipOver Tree
The TipOver algorithm is a special version of the tree-down layout where the grand-children (and iteratively) are arranged vertically while the direct children are arranged horizontally. This arrangement has the advantage that it doesn't spread as much as the classic tree-down layout.

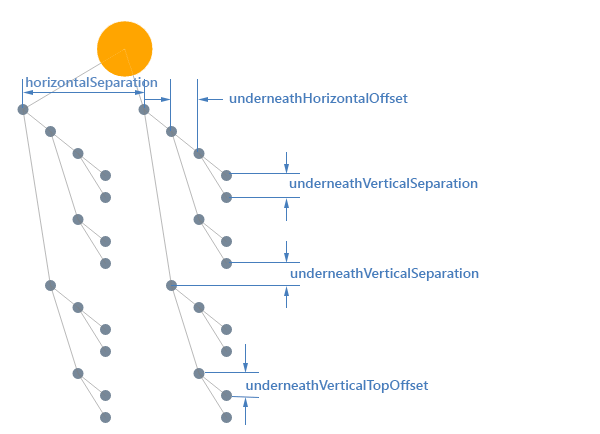

Figure 4: TipOver-Tree Layout
