Getting Started with the Telerik WebForms Captcha

The following tutorial demonstrates using RadCaptcha to validate page submission. The walk-through will also show how to display the Error Message in a ValidationSummary.

  1. In the default page of a new ASP.NET AJAX-enabled Web Application add a RadCaptcha control, a Button control that causes post back on a click and a ValidationSummary control.

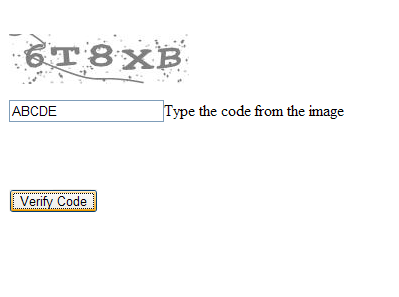

    Telerik WebForms Captcha sample

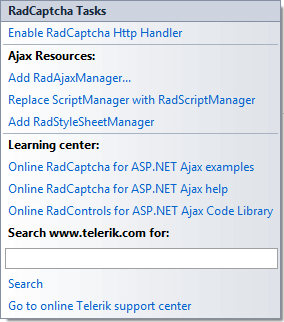

  2. Open the RadCaptcha Smart Tag and select the Enable RadCaptcha httpHandler link. Click OK to close the confirmation dialog for the RadCaptcha handler.

    radcaptcha-smart-tag

    The httpHandler can be also enabled by placing the following lines in the web.config file:

    web.config

    XML
     <configuration>
     	<system.web>
     		<httpHandlers>
     			<add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" validate="false" />
     		</httpHandlers>
     	</system.web>
     	<system.webServer>
     		<handlers>
     			<add name="Telerik_Web_UI_WebResource_axd" verb="*" preCondition="integratedMode" path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" />
     		</handlers>
     	</system.webServer>
     </configuration>

    By default the image is stored in the Cache. However, if more than one server is used to host the page (web-farm environment) the Session should be used, because if the Cache is used the image is stored locally on the server. When Session is used, the HttpHandler definition (in the .config file) of the RadCaptcha should be modified manually by setting the type of the HttpHandler has to be set to type="Telerik.Web.UI.WebResourceSession" .

    web.config

    XML
     <configuration>
     	<system.web>
     		<httpHandlers>
     			<add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResourceSession" verb="*" validate="false" />
     		</httpHandlers>
     	</system.web>
     	<system.webServer>
     		<handlers>
     			<add name="Telerik_Web_UI_WebResource_axd" verb="*" preCondition="integratedMode" path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResourceSession" />
     		</handlers>
     	</system.webServer>
     </configuration>
  3. In the Properties Window for the RadCaptcha control set the following properties:

    1. ErrorMessage = You have entered an invalid code.

    2. ValidationGroup = SubmitGroup

  4. In the Properties Window for the ValidationSummary control set the ValidationGroup property to the same value as in RadCaptcha (ValidationGroup = SubmitGroup). Do the same for the Button control.

  5. Press F5 to run the Application. RadCaptcha validates the input on a post back.

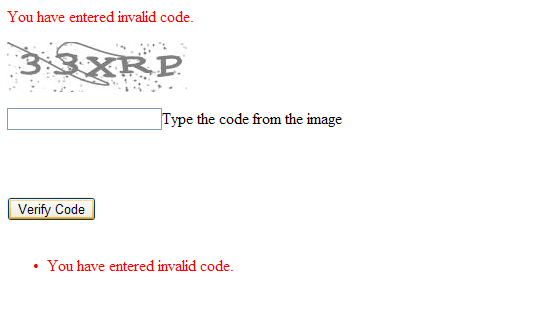

    Rad Captcha In Browser
