Questions on UI for WinForms Forum

7 answers

1.3K+ views

Hi,

I must be missing something obvious but how do I set the background colour of a Gridview control.
I can set the background colour of a row or cell but I cannot see how to set the colour of "White space" in other words my grid takes up have the screen but it might only contain 2 rows, which I can colour, but the bank space is always white.

Any ideas how I can change this??

Cheers

Shaun.

GridView

answered on 26 Mar 2013

1 answer

136 views

TrackballTextNeeded event not firing (all the time)

I have configured the ChartTrackballController and added it to the ChartView. The event does fire, but there are times when it does not. I can move the mouse pointer left and right over the chart and most of the time the text is updated and displayed. However, there are times when the mouse is moved the data point is moved but the trackball information is not moved or updated. The event never fires.

Is this a known issue?

// Configure the trackball.
var trackball = new ChartTrackballController();
pingChart.Controllers.Add(trackball);
pingChart.ShowTrackBall = true;
trackball.TextNeeded += TrackballTextNeeded;

        private void TrackballTextNeeded(object sender, TextNeededEventArgs e)
        {
            Debug.WriteLine("{0} - trackball calculation.", DateTime.Now);

            e.Text = "Test...";
        }

ChartView

answered on 26 Mar 2013

1 answer

100 views

I want when I click popup not closed

When I collapse or expanad popup is closed
I want when I click popup not closed

want the icon "+" clicked popup not closed
I'd click anywhere to close popup

MultiColumn ComboBox

answered on 25 Mar 2013

1 answer

151 views

Gridview throwing unexpected error

Hello Team,
I faced a situation where gridview is throwing some expected which i am unable to catch

i have a gridview,where user adding data to it the grid, through .csv file means user imports .csv file data to datagrid and then clicks button clear which make the grid datasource to null,
which is datagrid.datasource=null; now if entered any string value in the grid it is throwing this expecption

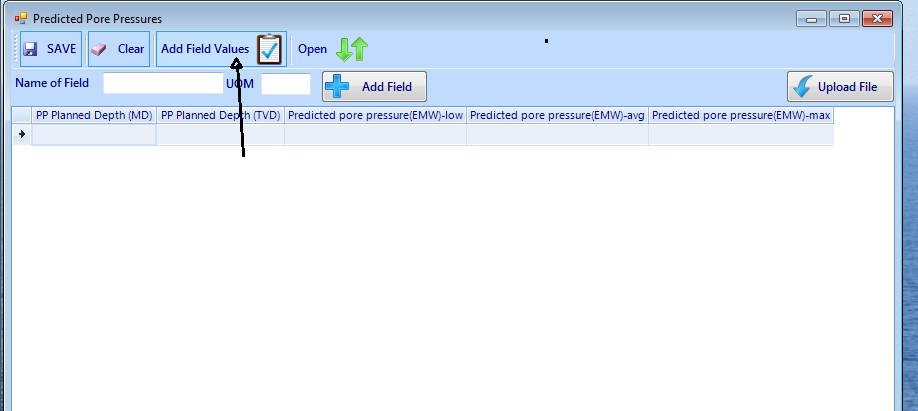

Step By Step: user clicked Add field values

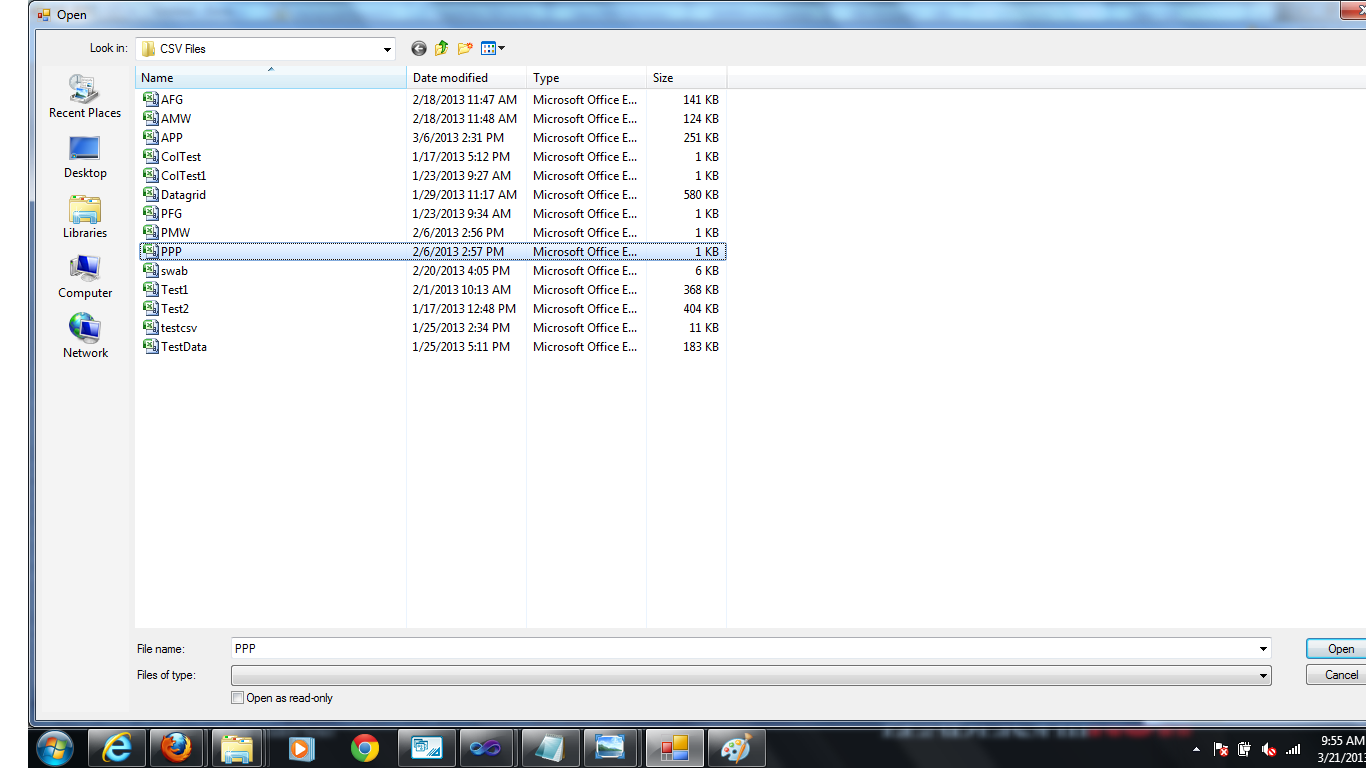

user selects the .csv file to import data into grid

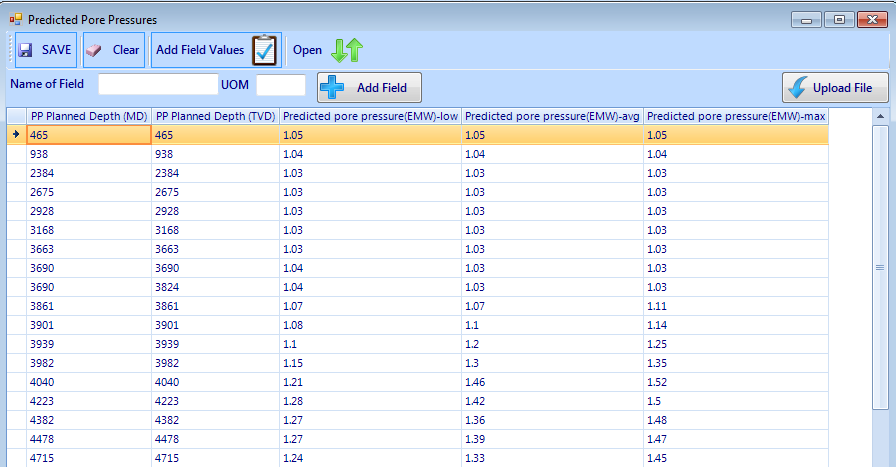

Data imported from .csv to grid

Now clicks Clear button to clear the data in the grid, here when user clicks the clear button i am making the datasource of the grid to null

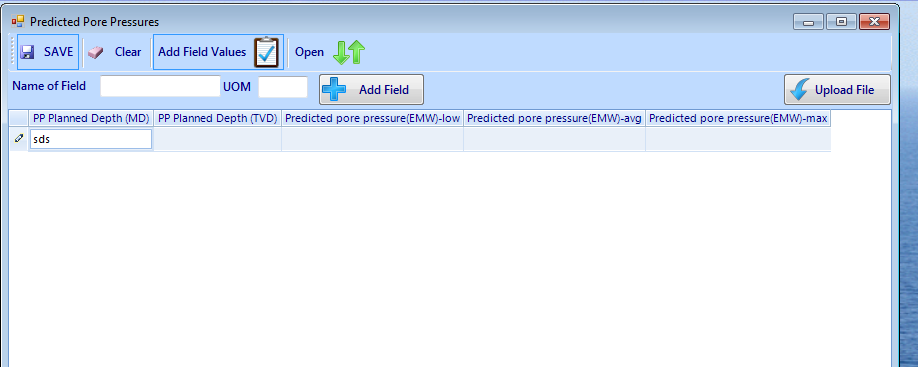

now user enters some string value in the grid

Now press tab, its throwing the error

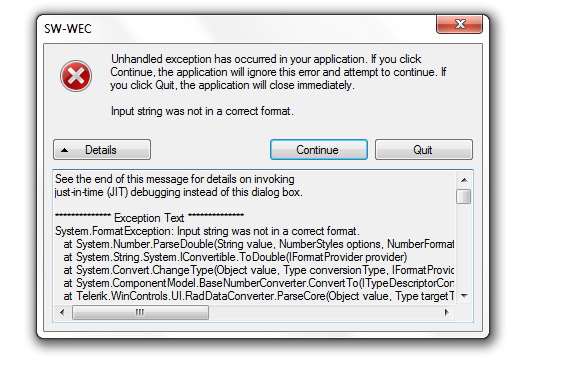

input string was not in correct format and i dont know where to capture the error and how to handle, can you please help me

Regards
Lakshmi

GridView

answered on 25 Mar 2013

1 answer

224 views

Export To PDF with Template

Hello,

Im am exporting a Gridview to PDF (sampleexport.jpg)

but i want it to look like this format (Template.jpg)

is it possible to do it?

Thank you in advance for your support

-Robin

GridView

answered on 25 Mar 2013

1 answer

161 views

RadBrowseEditor and Application Settings

Using 2013.1.220.40 version of RadBrowseEditor, I don't seem to be able to get the ApplicationSettings binding to work properly. My only choice is to bind the "Text" property, but the property that contains the path is "Value". Am I doing something wrong?

For now I've used this as a workaround:
On FormLoad or any time the settings are refreshed

RadBrowseEditor1.Value = My.Settings.PMSFolder

And when the user clicks the Save button

My.Settings.PMSFolder = RadBrowseEditor1.Value

My.Settings.Save()

BrowseEditor

answered on 25 Mar 2013

0 answers

168 views

how to show the header text of multiple column combobox

Hi ,
I am using multi column combobox for display the multiple data. when i am filter the data by entering search text in multiple combobox, It shows only the searched result not header text of column. please give solution for this

MultiColumn ComboBox

asked on 22 Mar 2013

1 answer

112 views

[Solved] Properties Grid will not show error messages / formatting with the Visual Studio 2012 Light Theme

I am having trouble getting error messages / error formatting to show up when using the Visual Studio 2012 Light theme

The code below will show an error message on the property grid with the Control Default theme but not with the Visual Studio 2012 Light Theme.

public partial class Form1 : Form

{

MyObject myObject = new MyObject();

public Form1()

{

InitializeComponent();

radPropertyGrid1.SelectedObject = myObject;

}

private void radPropertyGrid1_PropertyValidating(object sender, Telerik.WinControls.UI.PropertyValidatingEventArgs e)

{

if (e.Item.Name == "Count")

{

if (int.Parse(e.NewValue.ToString()) > 5)

{

(e.Item as PropertyGridItem).ErrorMessage = "Count Must Be Less Than Four";

e.Cancel = true;

}

public class MyObject

{

public string Name { get; set; }

public int Count { get; set; }

public DateTime When { get; set; }

public MyObject()

{

When = DateTime.Now;

}

PropertyGrid

answered on 22 Mar 2013

1 answer

460 views

[Solved] Change Status Strip Color

I am using a RadRibbonForm with the Visual Studio 2012 Light theme and I would like to change the color of the status strip when my program is doing some long running calculations (like Visual Studio 2012). I have tried multiple settings and cannot seem to find the correct setting to change the color of the status strip in code.

StatusStrip

answered on 22 Mar 2013

1 answer

171 views

Indicating focus for controls

Using Telerik version 2013.1.220.40

We would like to indicate when controls (TextBox, Dropdownlist, Checkbox etc) has focus, many users use the tab-key and can't see where the cursor is. Is the best way to accieve this by creating a custom theme or just override OnFocus/LostFocus-event for all the controls and set style there?

In the application we let users choose between 5 different themes.

Themes and Visual Style Builder

answered on 22 Mar 2013
