Where do Chart series default colors come from?

[Hans]

I want my end users to be able to select a "series palette" for the telerik charts I created.

Though I can easily create a handler that assigns colors to series when I create them, I was wondering where the default colors come from when no color was assigned to the series, and if I can "override" this somehow for a specific chart.

I have Examined the source code somewhat, but up to now to no avail.

1) Is it possible to set the "default colors palette" on <TelerikChart > or <ChartSeriesItems> level, but without setting a specific color on <ChartSeries> level?

2) Is there another way (eg CSS) to define the series color palette for a chart series that would not change the palette for other charts on the same page?

3) How could I address the (default color) palette if I wanted to assign eg each column in a column chart with a color from the default palette?



TIA - Hans

[Ivan]

Hi!
They taken from built-in themes and can be overriden with ThemeBuilder
https://themebuilderapp.telerik.com/

[Werdna]

Ivan,

I am fine using this color palette, but if I have more than 6 series, these colors just repeat.  How can I add many more colors than just the default 6?

[Yanislav]

Hello Andrew,

To have full control over the color of the series, you can specify a ColorField.

<ChartSeries Type="ChartSeriesType.Pie"
                     ColorField="@nameof(ModelData.Color)"

Thus, you can define your own colors for the series by including a field in the model whose value is a valid CSS color. The colors will be applied to the respective series.

You can specify the color explicitly or execute a custom logic to generate random colors like in the following example: https://blazorrepl.telerik.com/wHaPmxvx35X8Zw1v52

I hope this helps. In case you have any other questions, please do not hesitate to contact us.

[Christian]

In blazor the charts are ignoring my theme builder. In MVC I could add Theme="Sass" but that doesn't seem to be an option in Blazor. How do I get the charts to use the theme builder colors?

[Christian]

Theme builder doesn't work for blazor charts

[Dimo]

@Christian

I am copy-pasting my ticket reply here for everyone's reference:

The Chart series colors depend on the $series-... variables in the ThemeBuilder.

The Chart may not use the expected colors due to the following reasons:

• The series variables are not customized in the ThemeBuilder.
• The custom CSS theme is outdated and you need to recreate it to be compatible with the Telerik UI for Blazor version.
• The custom CSS theme is not registered correctly.
• There are two Telerik CSS themes on the page and the second one overrides the first one.
• The Chart series have their Color or ColorField parameters set.

I am sending you a few attachments:

• A sample custom theme with 4 custom series colors (series-a, series-b, series-c, and series-d).

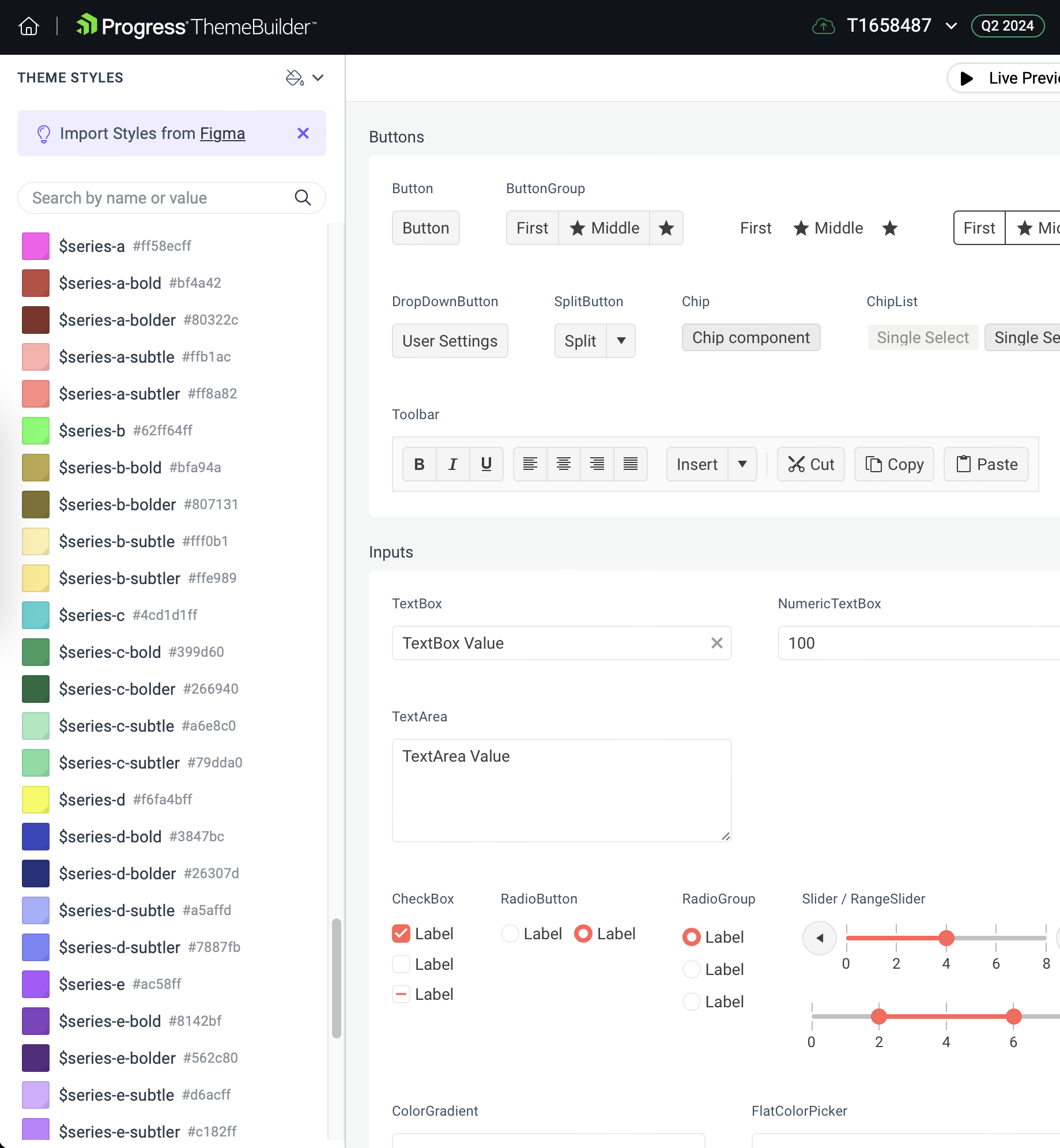

• A screenshot of the series variables in the ThemeBuilder.

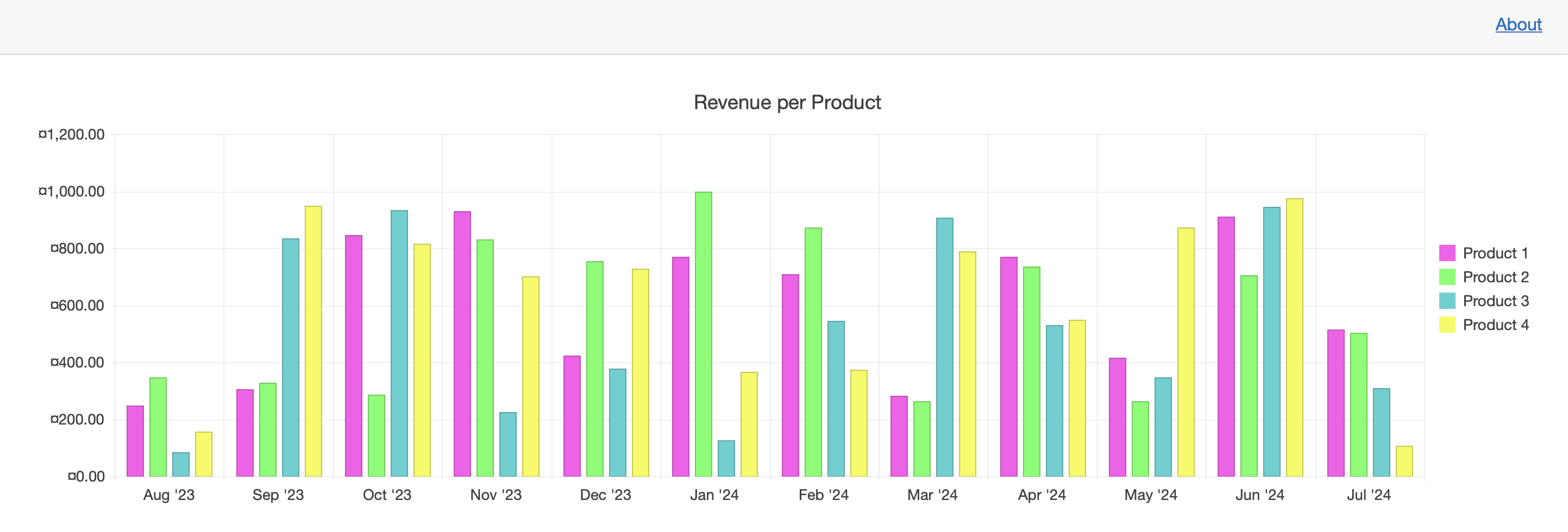

• How the below Chart example looks like when the app is using the attached custom theme.
