Webassembly: Nested Grid not primitive parameter cause call OnParametersSetAsync twice

10 Answers 132 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
Aleksandr asked on 22 Oct 2020, 10:21 PM
<TelerikGrid Data="@CustomerViewModel.Customers"
             EditMode="@GridEditMode.Inline"
             Height="800px"
             Pageable="true"
             Sortable="true"
             SortMode="@SortMode.Single"
             OnUpdate="@(async args => await CustomerViewModel.UpdateCustomerAsync(args))"
             OnDelete="@(async args => await CustomerViewModel.DeleteCustomerAsync(args))"
             OnCreate="@(async args => await CustomerViewModel.CreateCustomerAsync(args))">
    <GridToolBar>
        <GridCommandButton Command="Add" Icon="Add">Add Customer</GridCommandButton>
        <GridSearchBox DebounceDelay="200"></GridSearchBox>
    </GridToolBar>
    <GridColumns>
        <GridColumn Field="@nameof(Customer.Name)" Title="Customer" />
        <GridColumn Editable="false" Field="@nameof(Customer.Jurisdictions)" Title="Jur. Count" />
        <GridColumn Editable="false" Field="@nameof(Customer.JurisdictionsWithPersonalForms)" Title="Jur. w/Personal forms" />
        <GridColumn Editable="false" Field="@nameof(Customer.JurisdictionsWithCorporateForms)" Title="Jur. w/Corporate forms" />
        <GridColumn Editable="false" Field="@nameof(Customer.JurisdictionsWithForms)" Title="Jur. with forms (total)" />
        <GridColumn Editable="false" Field="@nameof(Customer.JurisdictionsWithLicense)" Title="Jur. License Count" />
        <GridCommandColumn>
            <GridCommandButton Command="Edit" Icon="edit"></GridCommandButton>
            <GridCommandButton Command="Delete" Icon="delete"></GridCommandButton>
            <GridCommandButton Command="Save" Icon="save" ShowInEdit="true"></GridCommandButton>
            <GridCommandButton Command="Cancel" Icon="cancel" ShowInEdit="true"></GridCommandButton>
            @*<GridCommandButton Title="Jurisdictions" OnClick="JurisdictionsShow">Jurisdictions</GridCommandButton>*@
        </GridCommandColumn>
    </GridColumns>
    <DetailTemplate>
        @{
            Customer customer = context as Customer;
            <CustomerJurisdictionsGrid CustomerId="@customer.Id" OnDeleteCallback="@OnDeleteCustomerCallback"/>
        }
    </DetailTemplate>
</TelerikGrid>





nested

<TelerikGrid Data="@ViewModel.CustomerJurisdictions"
             Pageable="true"
             Sortable="true"
             PageSize="20"
             SortMode="@SortMode.Single"
             Height="800px"
             OnDelete="@(async args=> await ViewModel.DeleteCustomerJurisdictionAsync(args))">
    <GridColumns>
        <GridColumn Field="@nameof(CustomerJurisdiction.JurisName)" Title="Name"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.PersFormsCount)" Title="Personal Forms"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.CorpFormsCount)" Title="Corporate Forms"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.JurisTypeDescription)" Title="Type"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.JurisStateDescription)" Title="State"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.JurisCountryDescription)" Title="Country"></GridColumn>
        <GridColumn Field="@nameof(CustomerJurisdiction.LastUpdated)" Title="Last Updated"></GridColumn>
        <GridCommandColumn>
            <GridCommandButton Command="Delete" Icon="delete"></GridCommandButton>
        </GridCommandColumn>
    </GridColumns>
</TelerikGrid>

@code {
    [Parameter]
    public int CustomerId { get; set; }
    [Parameter]
    public EventCallback<CustomerEventArgs> OnDeleteCallback { get; set; }

    protected override async Task OnParametersSetAsync()
    {
        Console.WriteLine(ViewModel);
        await ViewModel.LoadCustomerJurisdictionsAsync(CustomerId);
    }

}



so basically if thу parameter to the nested grid is not primitive, OnParametersSetAsync will be fired twice, would appreciate for the work around

10 Answers, 1 is accepted

Sort by
0
Marin Bratanov
Telerik team
answered on 23 Oct 2020, 01:43 PM

Hello Aleksandr,

I am attaching a few samples I made that seem to work as expected for me - the OnParametersSetAsync event of the child component in the DetailTemplate is called only once - both in the basic scenario where an int (a primitive type) is used like in the provided snippets, and also when a string is used which is not primitive. I am attaching a screen recording of the WebAssembly case for the string too.

If comparing against those samples does not help you solve this, I can suggest the following:

  • see if adding counters/flags and maybe overriding ShouldRender for that component will let you get the rendering and performance you seek
  • see if there are larger changes at hand - for exapmle, event handlers and other application code re-rendering the entire grid, or something similar that causes a re-render (such as changing the parameter value inside the child component)





Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 23 Oct 2020, 04:16 PM

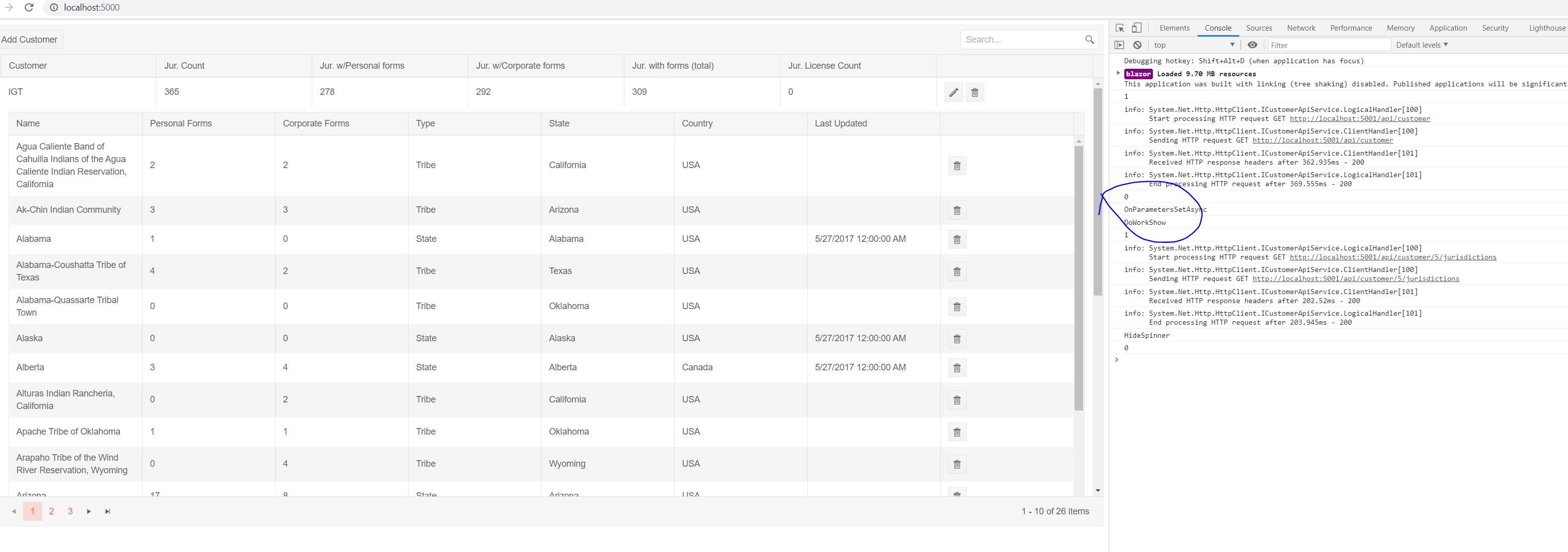

i repeated your example and it works exactly as expected (please see 1.jpg)

<DetailTemplate>
        @{
            Customer customer = context as Customer;
            <CustomerJurisdictionsGrid CustomerId="@customer.Id" CustomerName="@customer.Name" />
        }
    </DetailTemplate>

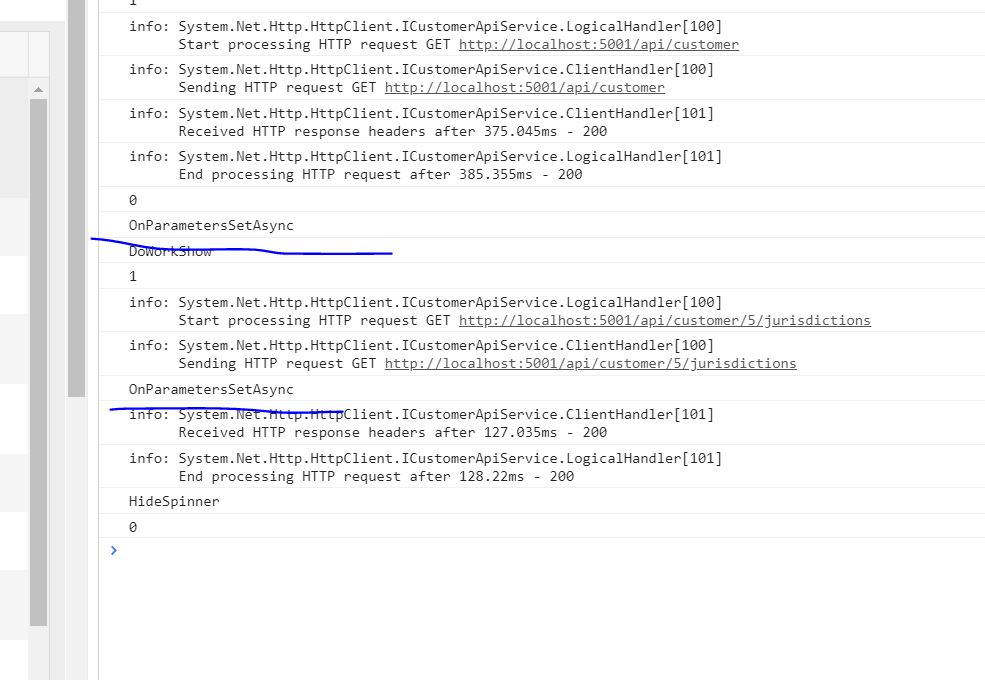

but if we try to put an object or callback (see 2.jpg)

the diff in code is just

<DetailTemplate>
        @{
            Customer customer = context as Customer;
            <CustomerJurisdictionsGrid CustomerId="@customer.Id" OnDeleteCallback="@OnCustomerJurisdictionDeleted" />
        }
    </DetailTemplate>







0
Marin Bratanov
Telerik team
answered on 23 Oct 2020, 04:47 PM

Hi Aleksandr,

On my end, the event callback is the cause, without it I don't observe this behavior - with or without the two parameters (int and string). Could you confirm if this is what you see in the new samples I'm attaching? Does removing the event callback fix this issue for you? Can you reproduce it without it?



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 23 Oct 2020, 05:00 PM
removing callback will fix the issue, but instead of callback you can put something else, for example the sub model of ViewModel, etc
0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 23 Oct 2020, 05:04 PM

basically i need to establish communication between page & nested grid to be able to update the main greed if for example the item from the nested was removed. we can do it two way:

- have callback

- or put the sub model to the nested grid & have internal event handlelling



but  this cause double run of OnParametersSetAsync



0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 25 Oct 2020, 02:19 PM
more over - when details are shown, any event in a parent grid row lead to details reload :-(
0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 25 Oct 2020, 03:17 PM

if we have grid of 10 rows & 5 of them are expanded, clicking at the button on the parent grid will raise event propagation for each, terrible

CustomerViewModel JurisdictionsShow
blazor.webassembly.js:1 CustomerAvailableJurisdictionsViewModel PopUpShowAsync
blazor.webassembly.js:1 CustomerAvailableJurisdictionsViewModel LoadJurisdictions
blazor.webassembly.js:1 DoWorkShow
blazor.webassembly.js:1 1
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[100]
      Start processing HTTP request GET http://localhost:5001/api/customer/5/availablejurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[100]
      Sending HTTP request GET http://localhost:5001/api/customer/5/availablejurisdictions
blazor.webassembly.js:1 CustomerJurisdictionViewModel OnParametersSetAsync
blazor.webassembly.js:1 CustomerJurisdictionViewModel LoadCustomerJurisdictionsAsync
blazor.webassembly.js:1 DoWorkShow
blazor.webassembly.js:1 2
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[100]
      Start processing HTTP request GET http://localhost:5001/api/customer/5/jurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[100]
      Sending HTTP request GET http://localhost:5001/api/customer/5/jurisdictions
blazor.webassembly.js:1 CustomerJurisdictionViewModel OnParametersSetAsync
blazor.webassembly.js:1 CustomerJurisdictionViewModel LoadCustomerJurisdictionsAsync
blazor.webassembly.js:1 DoWorkShow
blazor.webassembly.js:1 3
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[100]
      Start processing HTTP request GET http://localhost:5001/api/customer/6/jurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[100]
      Sending HTTP request GET http://localhost:5001/api/customer/6/jurisdictions
blazor.webassembly.js:1 CustomerJurisdictionViewModel OnParametersSetAsync
blazor.webassembly.js:1 CustomerJurisdictionViewModel LoadCustomerJurisdictionsAsync
blazor.webassembly.js:1 DoWorkShow
blazor.webassembly.js:1 4
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[100]
      Start processing HTTP request GET http://localhost:5001/api/customer/7/jurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[100]
      Sending HTTP request GET http://localhost:5001/api/customer/7/jurisdictions
blazor.webassembly.js:1 CustomerJurisdictionViewModel OnParametersSetAsync
blazor.webassembly.js:1 CustomerJurisdictionViewModel LoadCustomerJurisdictionsAsync
blazor.webassembly.js:1 DoWorkShow
blazor.webassembly.js:1 5
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[100]
      Start processing HTTP request GET http://localhost:5001/api/customer/15/jurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[100]
      Sending HTTP request GET http://localhost:5001/api/customer/15/jurisdictions
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[101]
      Received HTTP response headers after 311.525ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[101]
      End processing HTTP request after 312.7ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[101]
      Received HTTP response headers after 294.95ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[101]
      End processing HTTP request after 296.1749ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[101]
      Received HTTP response headers after 290.9249ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[101]
      End processing HTTP request after 292.05ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[101]
      Received HTTP response headers after 285.2199ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[101]
      End processing HTTP request after 286.74ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.ClientHandler[101]
      Received HTTP response headers after 264.67ms - 200
blazor.webassembly.js:1 info: System.Net.Http.HttpClient.ICustomerApiService.LogicalHandler[101]
      End processing HTTP request after 265.7349ms - 200
blazor.webassembly.js:1 DoWorkHide
blazor.webassembly.js:1 4
blazor.webassembly.js:1 CustomerAvailableJurisdictionsViewModel PopUpShowAsync WindowJurisdictionsPopUpVisible: True
4blazor.webassembly.js:1 CustomerJurisdictionViewModel OnParametersSetAsync
blazor.webassembly.js:1 HideSpinner
blazor.webassembly.js:1 3
blazor.webassembly.js:1 HideSpinner
blazor.webassembly.js:1 2
blazor.webassembly.js:1 HideSpinner
blazor.webassembly.js:1 1
blazor.webassembly.js:1 HideSpinner
blazor.webassembly.js:1 0



0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 25 Oct 2020, 03:41 PM

please see the video, i am just clicking on textbox



Video

0
Aleksandr
Top achievements
Rank 1
Bronze
Bronze
Veteran
answered on 26 Oct 2020, 08:53 PM
so found a workaround, removed callback, firing event through app service bus between components, works perfectly
0
Marin Bratanov
Telerik team
answered on 28 Oct 2020, 03:43 PM

Hello Aleksandr,

The short answer is that this behavior is expected. I made the following KnowledgeBase article that explains the situation in more detail and also offers a different approach towards changing this behavior: https://docs.telerik.com/blazor-ui/knowledge-base/grid-detailtemplate-renders

Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
