Unable to load up an image from an Action due to property access

[DoomerDGR8]

Here is my grid:

@(Html.Kendo().Grid<AssetViewModel>()
      .Name("grid")
      .Columns(columns =>
       {
           columns.Bound(e => e.AssetId).Title("Asset").ClientTemplate(Html.Kendo().Template().AddComponent(avatar => avatar
                                                                                                                     .Avatar()
                                                                                                                     .Name("avatar_${data.AssetId}")
                                                                                                                     .Type(AvatarType.Image)
                                                                                                                     .Size(ComponentSize.Large)
                                                                                                                     .Rounded(Rounded.Full)
                                                                                                                     .Image(@Url.Action("GetFile", "MediaStore", new { fileId = "${data.LogoId}" }))
                                                                                                           )).Width(110);
           columns.Bound(e => e.AssetName).Title("Full Name").Width(200);
       })
      .Sortable()
      .Pageable()
      .Scrollable()
      .HtmlAttributes(new { style = "height:430px;" })
      .DataSource(dataSource => dataSource
                               .Ajax()
                               .PageSize(5)
                               .Read(read => read.Action("AssetListData", "Revenue"))
                 )

)

I have tried specifying as "#:AssetId#", "#=AssetId#" , and ${data.LogoId} but the parsing is not correct at runtime:

<span class="k-avatar-image"><img src="/MediaStore/GetFile?fileId=$%7Bdata.AssetId%7D"></span>

Ho do I get the LogoId properly?

[Alexander]

Hi Hassan,

The reported behavior would most notably be related to an identical symptom, as discussed in a previous discussion of ours:

Forum Post - https://www.telerik.com/forums/a-tabstrip-as-a-clientdetailtemplate

With that in mind to achieve the desired outcome, I would recommend:

• Subscribing to the DataBound event of the Grid:


.Events(events => events.DataBound("onDataBound"))

• Omit the Image() API configuration of the Avatar in the Template declaration:


.Columns(columns =>
{

    columns.Bound(e => e.ShipCity).Title("Asset").ClientTemplate(Html.Kendo().Template().AddComponent(avatar => avatar
           .Avatar()
           .Name("avatar_${data.Id}")
           .Type(AvatarType.Image)
           .Size(ComponentSize.Large)
           .Rounded(Rounded.Full)
	)).Width(110);

})

• Within the DataBound handler, traverse through each of the row DOM representations, get the respective dataItem, recompose the URL, so that the query string is included, and re-render the Avatar by using its exposed setOptions() method:


<script>
    function onDataBound(e) {
        setTimeout(function(){

            $(e.sender.element).find(".k-master-row").each((index, el) => {
                var dataItem = e.sender.dataItem(el);
                var avatar = $(el).find(`.k-avatar`).data("kendoAvatar");


                avatar.setOptions({
                    image: `MediaStore/GetFile?fileId=${dataItem.Id % 2 == 0 ? 1 : 2}`
                })

            })

        }, 200)
    }
</script>

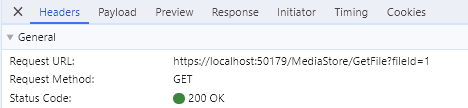

This should then supplement the query string for each of the rows accordingly in the request URL:

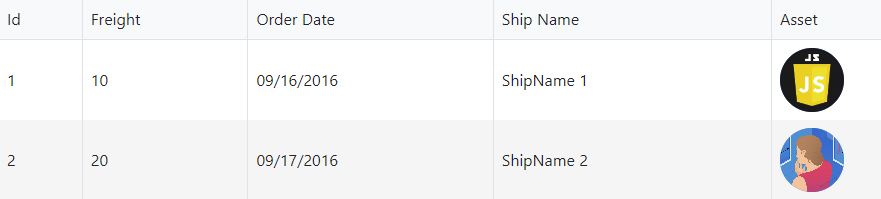

Whilst ensuring that the images are displayed:

For your convenience, I am attaching a revamped version of the sample from the abovementioned discussion.

I hope this helps.

Kind Regards,
Alexander
Progress Telerik

[DoomerDGR8]

Thanks. This is almost everything I need.

• The path needed a forward slash as it was looking for a MediaStore/GetFile inside the current controller.

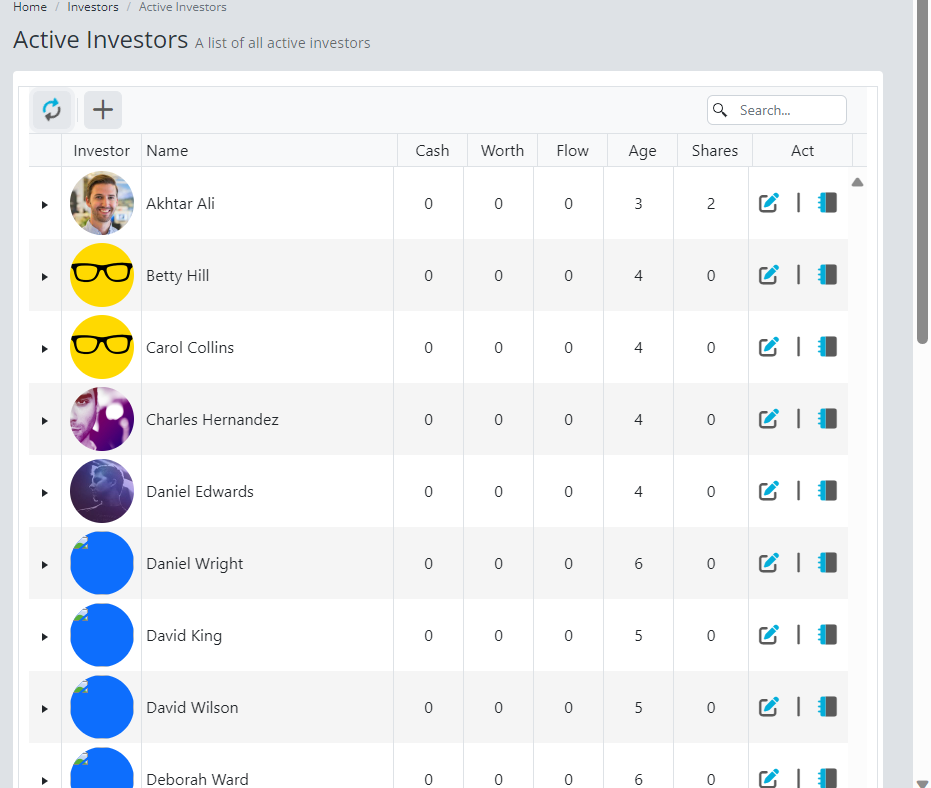

• If the ProfileId is null (lots of existing records and the ProfilepictureId was added later as nullable) the code breaks strangely:

I tried a few remedies. On the controller, I updated as:

[HttpGet]
public async Task<IActionResult> GetFile(Guid? fileId, int? typeId)
{
    var ct = new CancellationToken();

    try
    {
        if (fileId == null || fileId == Guid.Empty)
        {
	        var filePath = Path.Combine(hostEnvironment.WebRootPath, typeId == 2 ? "img/user/user-12.jpg" : "img/default/blank.jpg");
	        var fileBytes = await System.IO.File.ReadAllBytesAsync(filePath, ct);

	        return File(fileBytes, "image/jpeg");
        }

        var viewModel = await mediaService.GetFileAsync(fileId.Value, ct);

        if (viewModel == null)
        {
            return NotFound("File not found.");
        }

        var fileData = await mediaService.GetFileDataAsync(fileId.Value, ct);

        return new FileContentResult(fileData, "application/octet-stream")
               {
                   FileDownloadName = viewModel.Name
               };
    }
    catch (Exception ex)
    {
        return Json(new { success = false, message = ex.Message });
    }
}

The onDataBound is modified as:

function investorGrid_OnDataBound(e) {
    try {
        setTimeout(function() {
            $(e.sender.element).find(".k-master-row").each((index, el) => {
                var dataItem = e.sender.dataItem(el);
                var avatar = $(el).find(".k-avatar").data("kendoAvatar");

                if (dataItem.ProfilePictureId) {
                    avatar.setOptions({
                        image: `/MediaStore/GetFile?fileId=${dataItem.ProfilePictureId}&typeId=2`
                    });
                } else {
                    avatar.setOptions({
                        image: ''
                    });
                }
            });
        }, 200);
    } catch (e) {

    }
}

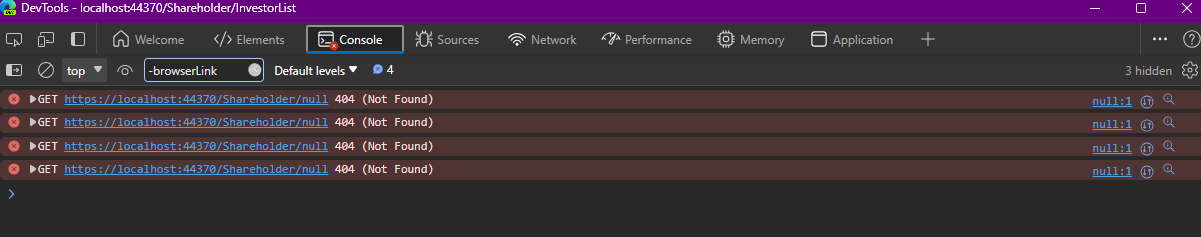

However, this is not working still:

How do I tackle this?



[Alexander]

Hi Hassan,

Thank you for the additional clarification regarding the backslash behavior.

In terms of the scenario where the "ProfilePictureId" will be treated as times as nullable, I would personally recommend adding a default image that will be displayed when the profile picture is uploaded.

This would be required due to the fact that the image configuration will point to a URL. In the case of null entries, it will try to compose a URL where "null" will be taken purely as textual content.

Here is how I have altered the implementation:

<script>
    function onDataBound(e) {
        setTimeout(function(){

            $(e.sender.element).find(".k-master-row").each((index, el) => {
                var dataItem = e.sender.dataItem(el);
                var avatar = $(el).find(`.k-avatar`).data("kendoAvatar");


                if (dataItem.ProfilePictureId) {
                    avatar.setOptions({
                        image: `/MediaStore/GetFile?fileId=${dataItem.ProfilePictureId % 2 == 0 ? 1 : 2}`
                    })
                } else {
                    avatar.setOptions({
                        image: '@Url.Content("~/no_image.png")'
                    });
                }
            })

        }, 200)
    }
</script>

Where the default image is stored as follows:

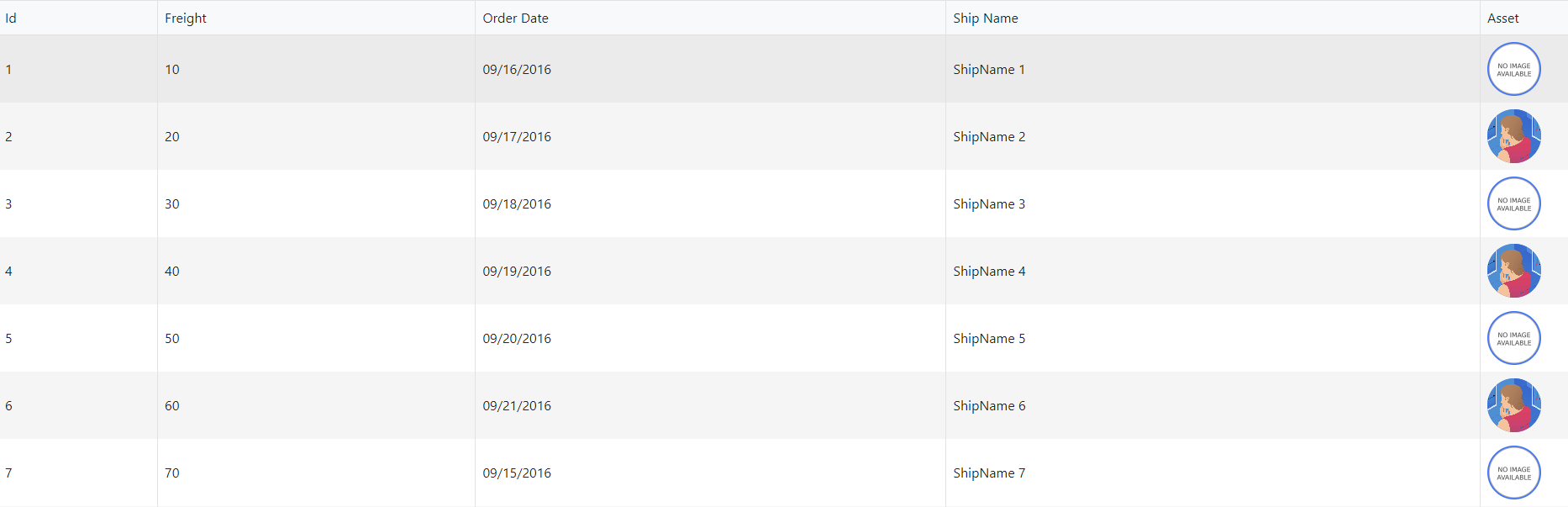

This will then produce the following result:

Attached you will find a revised version of the previous sample for you to review.

I hope this helps.
