treelist paging selection

[Joel]

I have a treelist with a checkbox for selection.  However, my list is long so I added pagination.  I help the user by pre-selecting a node and I need to display the page that exposes the first selected node.  How do I do this?

|

                        <TelerikTreeList @ref=@TreeListRef
                                         Class="gsi-padding-0"
                                         Data="@UserGroups"
                                         SelectedItems="@SelectedGroups"
                                         IdField="Id"
                                         Pageable=true
                                         PageSize="10"
                                         ParentIdField="ParentId"
                                         SelectionMode="TreeListSelectionMode.Single"
                                         OnRowRender="@HandleRowRender"
                                         SelectedItemsChanged="@((IEnumerable<Gsi.Customer.Models.Group> m) => OnGroupSelected(m))">

                            <TreeListColumns>
                                <TreeListCheckboxColumn SelectAll="false"
                                                        SelectChildren="false"
                                                        CheckBoxOnlySelection="true"
                                                        Width="64px" />

                                <TreeListColumn Field="Name" Title="Name" Expandable="true">
                                    <Template>
                                        @{
                                            var item = context as Gsi.Customer.Models.Group;
                                            <img height="32" width="32" src="@item.ImageUrl" />
                                            @item.Name
                                        }
                                    </Template>
                                </TreeListColumn>
                            </TreeListColumns>
                        </TelerikTreeList>

[Hristian Stefanov]

Hi Joel,

To automatically show the page that contains the first pre-selected node in your Telerik TreeList with paging enabled, you need to programmatically set the TreeList's Page property based on the index of the selected node in your data.

Steps to Implement

1. Find the Index of the First Selected Node
   Identify the index of the first selected node in your data source.

2. Calculate the Page Number
   Use the PageSize to determine on which page the node appears.

3. Set the Page Property
   Assign the calculated page number to the TreeList's Page parameter before rendering.

Example Implementation

<TelerikTreeList Data="@TreeListData"
                 IdField="@nameof(Employee.Id)"
                 ParentIdField="@nameof(Employee.ParentId)"
                 SelectionMode="@TreeListSelectionMode.Multiple"
                 @bind-SelectedItems="@SelectedEmployees"
                 Pageable="true"
                 @bind-PageSize="@PageSize"
                 @bind-Page="@CurrentPage">
    <TreeListColumns>
        <TreeListCheckboxColumn Width="50px" />
        <TreeListColumn Field="@nameof(Employee.FirstName)" Title="First Name" Width="350px" Expandable="true" />
        <TreeListColumn Field="@nameof(Employee.LastName)" Title="Last Name" />
        <TreeListColumn Field="@nameof(Employee.Position)" Title="Position" Width="200px" />
    </TreeListColumns>
</TelerikTreeList>

@code {
    private List<Employee> TreeListData { get; set; } = new();
    private IEnumerable<Employee> SelectedEmployees { get; set; } = Enumerable.Empty<Employee>();
    private int PageSize = 10;
    private int CurrentPage = 1;

    protected override void OnInitialized()
    {
        TreeListData = new List<Employee>();

        for (int i = 1; i <= 59; i++)
        {
            TreeListData.Add(new Employee()
                {
                    Id = i,
                    ParentId = i <= 3 ? null : i % 3 + 1,
                    FirstName = "First " + i,
                    LastName = "Last " + i,
                    Position = i <= 3 ? "Team Lead" : "Software Engineer"
                });
        }

        SelectedEmployees = new List<Employee>() { TreeListData.ElementAt(2) };

        var selectedId = SelectedEmployees.FirstOrDefault()?.Id;
        if (selectedId != null)
        {
            // Step 1: Flatten the tree as it would appear expanded
            var flatList = new List<Employee>();
            foreach (var root in TreeListData.Where(e => e.ParentId == null))
            {
                FlattenHierarchy(root, flatList);
            }

            // Step 2: Find index of selected item in flattened list
            var index = flatList.FindIndex(e => e.Id == selectedId);
            if (index >= 0)
            {
                CurrentPage = (index / PageSize) + 1;
            }
        }
    }

    private void FlattenHierarchy(Employee node, List<Employee> result)
    {
        result.Add(node);
        var children = TreeListData.Where(e => e.ParentId == node.Id);
        foreach (var child in children)
        {
            FlattenHierarchy(child, result);
        }
    }

    public class Employee
    {
        public int Id { get; set; }
        public int? ParentId { get; set; }
        public string FirstName { get; set; } = string.Empty;
        public string LastName { get; set; } = string.Empty;
        public string Position { get; set; } = string.Empty;
    }
}

Regards,
Hristian Stefanov
Progress Telerik

[Joel]

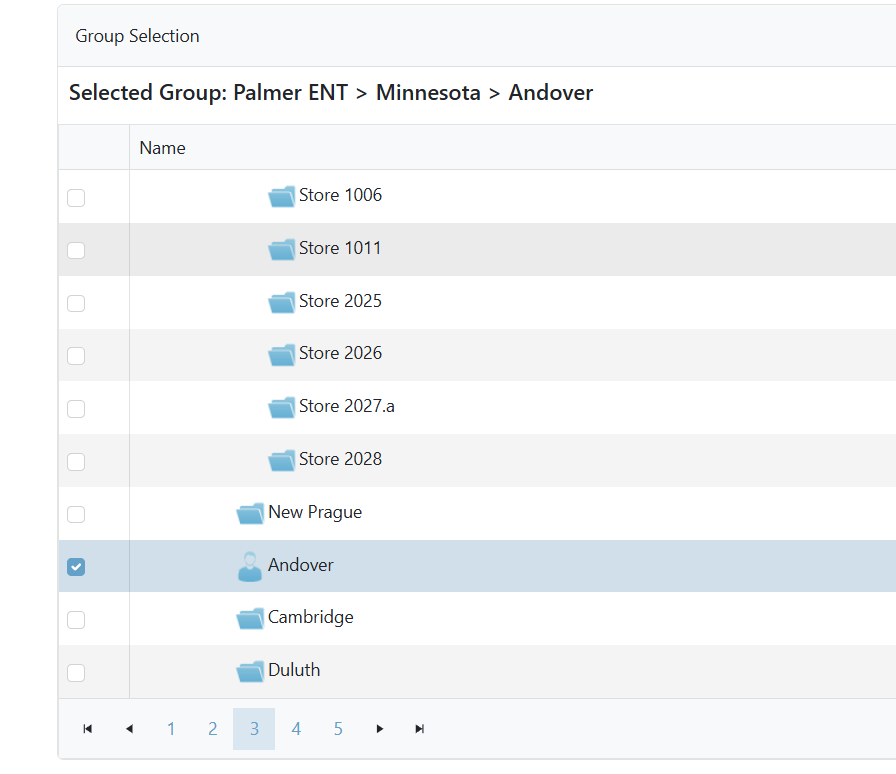

Your solution didn't work for me but it got me on the right track.  Your "Flatten the tree as it would appear expanded" comment got me there.  I have a "Depth" field which is calculated as distance from the root.  I then order the tree node by their name (same depth; same parentId, different name).  So, I was able to get the flat structure using a sort against those properties.

                var orderedGroups = FlatGroups.OrderBy(x => x.Depth)
                    .ThenBy(x => x.ParentId).ThenBy(x => x.Name);

                int index = orderedGroups.ToList().FindIndex(x => x.Id == Group.Id);
                if (index >= 0)
                {
                    GroupCurrentPage = (index / GroupPageSize) + 1;
                }

How I set depth... keep in mind, I have only 1 root.

        /// <summary>
        /// Sets the depth of each group in the list based on the hierarchy.
        /// </summary>
        public void SetDepth()
        {
            Group root = this.GetRoot();
            if (root != null)
            {
                SetDepthRecursive(root, 0);
            }
        }

        /// <summary>
        /// Recursively sets the depth of each group in the list based on the hierarchy.
        /// </summary>
        /// <param name="group"></param>
        /// <param name="depth"></param>
        private void SetDepthRecursive(Group group, int depth)
        {
            group.Depth = depth;
            var children = this.Where(g => g.ParentId == group.Id).ToList();
            foreach (var child in children)
            {
                SetDepthRecursive(child, depth + 1);
            }
        }
