Title with a category axis?

3 Answers 162 Views
Charts
This is a migrated thread and some comments may be shown as answers.
Datafyer
Top achievements
Rank 1
Veteran
Datafyer asked on 10 Oct 2019, 06:45 PM

I have a date category x-axis which is currently auto fitting.
It is somewhat redundant however I was trying to add a title to the axis and I ran into issues.
Is that supported? I can easily add titles to a value axis.

Without the line "ChartCategoryAxisTitle" it works correctly however with no title.

Code:

<ChartCategoryAxes>
    <ChartCategoryAxis BaseUnit="ChartCategoryAxisBaseUnit.Fit" Type="ChartCategoryAxisType.Date" MaxDateGroups="10" />
    <ChartCategoryAxisTitle Text="Time" />
</ChartCategoryAxes>



Error:

blazor.server.js:15 [2019-10-10T18:39:17.853Z] Error: System.NullReferenceException: Object reference not set to an instance of an object.
   at Telerik.Blazor.Components.ChartCategoryAxisTitleBase.AddSelfToParent()
   at Telerik.Generated.Blazor.Components.ChildComponent.OnInitialized()
   at Telerik.Blazor.Components.ChartCategoryAxisTitleBase.OnInitialized()
   at Microsoft.AspNetCore.Components.ComponentBase.RunInitAndSetParametersAsync()

3 Answers, 1 is accepted

Sort by
0
Marin Bratanov
Telerik team
answered on 11 Oct 2019, 07:17 AM

Hi Patrick,

In the chart, child elements are nested under their parent - so the concrete axis title must go under the axis tag. Generally, tags that begin with the same name get nested in one another. For example, ChartCategoryAxis  can contain ChartCategoryAxisTitle and ChartCategoryAxisLabels, but you can't put those two inside ChartCategoryAxes

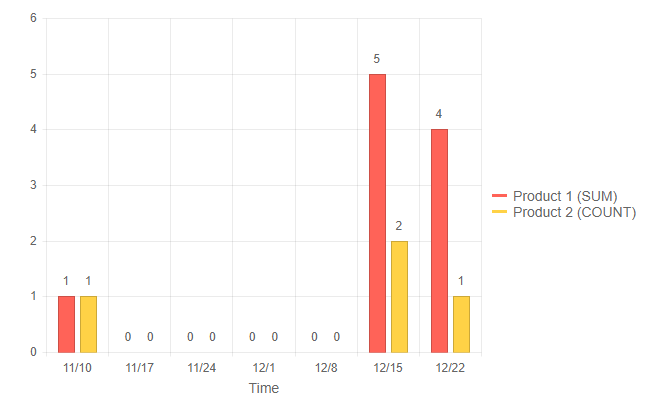

Here's an example I made for you (a screenshot of the result is attached at the end):

<TelerikChart>

    <ChartCategoryAxes>
        <ChartCategoryAxis BaseUnit="ChartCategoryAxisBaseUnit.Fit" Type="ChartCategoryAxisType.Date" MaxDateGroups="10">
            <ChartCategoryAxisTitle Text="Time"></ChartCategoryAxisTitle>
        </ChartCategoryAxis>
    </ChartCategoryAxes>

    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 1 (SUM)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product1)" CategoryField="@nameof(MyDataModel.MySharedCategories)" Aggregate="ChartSeriesAggregate.Sum">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 2 (COUNT)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product2)" Aggregate="ChartSeriesAggregate.Count">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
    </ChartSeriesItems>

</TelerikChart>

@code {
    public class MyDataModel
    {
        public DateTime MySharedCategories { get; set; }
        public int Product1 { get; set; }
        public int Product2 { get; set; }
    }

    public List<MyDataModel> chartData = new List<MyDataModel>()
{
        new MyDataModel() { MySharedCategories = new DateTime(2019, 11, 11), Product1 = 1, Product2 = 2 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 15), Product1 = 2, Product2 = 3 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 19), Product1 = 3, Product2 = 4 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 28), Product1 = 4, Product2 = 5 },
    };
}



Regards,
Marin Bratanov
Progress Telerik

 UI for Blazor
0
Datafyer
Top achievements
Rank 1
Veteran
answered on 11 Oct 2019, 06:15 PM

Thank you. That makes perfect sense.

Not sure why I didn't notice the title tag was not nested.
Errors during design time would certainly be helpful.

0
Marin Bratanov
Telerik team
answered on 13 Oct 2019, 11:42 AM

Hello Patrick,

It's good to hear you have things working.

On design-time errors - in Blazor there isn't the same design-time surface as in, say WebForms or WinForms, and at the moment, our options in this regard are extremely limited. In fact, the framework gets confused by components from the project and inner tags (see here) and by nesting (see here). We have it on our radar to see if we can do anything, but it seems like we need to wait for the framework to implement something like showing only the allowed tags under a parent tag.



Regards,
Marin Bratanov
Progress Telerik

 UI for Blazor
