Timeline Scheduler Appointment alignment off in IE

2 posts, 0 answers
  1. Jonathan
    Jonathan avatar
    37 posts
    Member since:
    Sep 2012

    Posted 08 Mar 2013 Link to this post

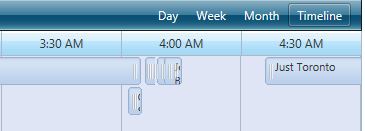

    When using the Scheduler in Chrome the alignment is good. See image: goodChrome.jpg

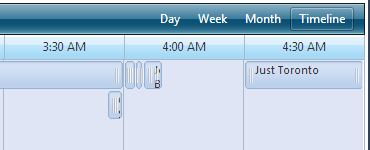

    When viewing the same schedule in IE 9.0.8112.16421 - the alignment of the appointments is off more the farther you scroll to the right. See image: misalignedIE.jpg

    In the sample there are 48 timeslots of 30 minutes each to present a 24 hour day starting at 5:00 am.

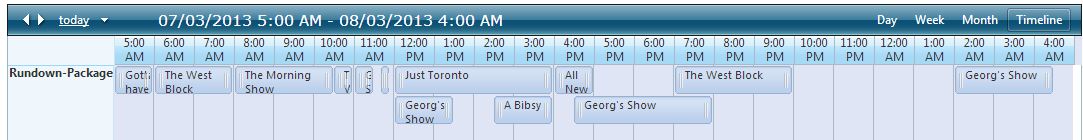

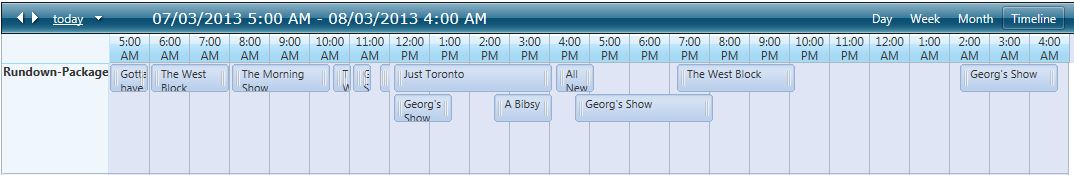

    In a second sample I am now also attaching showing the 24 hours in a much more compressed format and again IE is misaligned. (see images goodChrome2 and misalignedIE2)

    I am using version 2012.3.1016.40.

    The scheduler definition is:
    <telerik:RadScheduler ID="ScheduleResources" runat="server"
        SelectedView="DayView"
        Width="1075px"
        ColumnWidth="300px"
        RowHeight="30px"
        OverflowBehavior="Expand"
        ShowAllDayRow="false"
        NumberOfHoveredRows="1"
        DayStartTime="00:00:00"
        DayEndTime="23:59:59"
        WorkDayStartTime="09:00:00"
        WorkDayEndTime="17:00:00"
        DisplayRecurrenceActionDialogOnMove="true"
        EnableExactTimeRendering="true"
        ShowFooter="false"
        ShowFullTime="false"
        DataKeyField="ID"
        DataRecurrenceField="recurrenceRule"
        DataRecurrenceParentKeyField="recurrenceParentID"
        DataSourceID="data_appointments"
        DataStartField="startTime"
        DataEndField="endTime"
        DataSubjectField="resourceTitle"
        CustomAttributeNames="resourceCaptionShort, usr_firstname, usr_lastname, resourceID, isSponsor, recurrenceRule"
        OnAppointmentDataBound="Scheduler_AppointmentDataBound"
        OnAppointmentDelete="Scheduler_AppointmentDelete"
        OnAppointmentUpdate="Scheduler_AppointmentUpdate"
        OnAppointmentInsert="Scheduler_AppointmentInsert"
        OnAppointmentCreated="Scheduler_AppointmentCreated"
        OnNavigationComplete="Scheduler_NavigationComplete"
        OnPreRender="Schedule_PreRender"
        OnTimeSlotCreated="Schedule_TimeSlotCreated"
        DataDescriptionField="resourceCaptionShort"
        EnableDescriptionField="True"
        AllowInsert="false" EnableResourceEditing="false"
        EnableAdvancedForm="false" StartEditingInAdvancedForm="false"
        FirstDayOfWeek="Monday" LastDayOfWeek="Sunday"
        GroupingDirection="Horizontal" GroupBy="Flow"
        ReadOnly="true"
         WeekView-HeaderDateFormat="g" TimelineView-HeaderDateFormat="g" >
        <TimelineView StartTime="05:00:00"
            ColumnHeaderDateFormat="h:mm tt"
            NumberOfSlots="48"
            SlotDuration="00:30:00"
            TimeLabelSpan="1"
            UserSelectable="true"
            GroupingDirection="Vertical" GroupBy="Flow" />
        <TimeSlotContextMenuSettings EnableDefault="false" />
        <DayView  GroupingDirection="Horizontal" DayStartTime="0:00:00" DayEndTime="23:59:59" GroupBy="Flow" UserSelectable="true"  />
        <WeekView GroupingDirection="Horizontal" DayStartTime="0:00:00" DayEndTime="23:59:59" GroupBy="Flow" />
        <Localization
            AdvancedSubjectRequired="Please provide resource schedule subject"
            AdvancedNewAppointment="New Resource Schedule"
            AdvancedEditAppointment="Edit Resource Schedule"
            ConfirmRecurrenceEditTitle="Editing a recurring resource schedule"
            ConfirmRecurrenceResizeTitle="Resizing a recurring resource schedule"
            ConfirmRecurrenceDeleteTitle="Deleting a recurring resource schedule"
            ConfirmDeleteText="Are you sure you want to delete this resource schedule?"
            ConfirmRecurrenceMoveTitle="Moving a recurring resource schedule"
            ContextMenuAddAppointment="New Resource Schedule"
            ContextMenuAddRecurringAppointment="New Recurring Resource Schedule">
        </Localization>

        <AppointmentContextMenuSettings EnableDefault="false" />
        <AdvancedForm EnableResourceEditing="False" Modal="False" Enabled="False" />
        <ResourceTypes>
            <telerik:ResourceType KeyField="ID" Name="Flow" TextField="resourceType" ForeignKeyField="resourceTypeID" DataSourceID="data_resources" />
        </ResourceTypes>
        <AppointmentContextMenus>
            <telerik:RadSchedulerContextMenu ID="RadSchedulerContextMenu1" runat="server" Enabled="false" Visible="false">
                <Items>
                    <telerik:RadMenuItem runat="server" Text="Edit Schedule" Value="schedule">
                    </telerik:RadMenuItem>
                </Items>
            </telerik:RadSchedulerContextMenu>
        </AppointmentContextMenus>
    </telerik:RadScheduler>

  2. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    2062 posts

    Posted 13 Mar 2013 Link to this post

    Hello,

    Since I was not able to reproduce the provided issue at my side, could you please clarify whether you have any custom styles on your page? I have attached a simplified page that includes the provided markup code of your RadScheduler control. Please let me know if something is different with your scenario.
    Additionally here you can watch a video of that project behavior at my side.


    Kind regards,
    Boyan Dimitrov
    the Telerik team
