TelerikChart X-Axis Misinterprets Double Values as Categories in Blazor

[Nuur]

Hello,

I'm having trouble configuring a TelerikChart in Blazor to properly display a column series and a line series side-by-side on the same chart.

My goal is to have the X-axis (CategoryAxis) reflect double values (e.g. 0, 5, 10, 15...) so that both series are aligned and spaced proportionally based on their actual numeric X values.

However, what I'm observing is that the X-axis seems to treat these values as categories or strings, not real numbers. This results in incorrect spacing and ordering.

What's going wrong:

The columns are not placed in the correct positions on the X-axis — for instance, a column with X = 6 appears at the far end if 6 doesn't also exist in the line series.

The values on the X-axis are not sorted numerically — so the spacing between, say, 5 and 10 is the same as between 10 and 1024, which breaks the scale.

Ideally, I want the chart to understand that X = 1024 is far from X = 50, and space it accordingly on a continuous numeric scale.

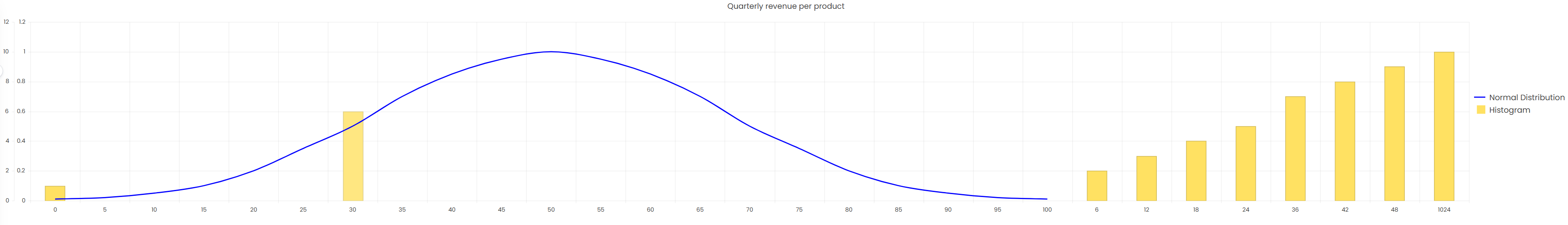

You can see the visual chart below:

The code for the chart:

@page "/test"
@using ChartLegendPosition=Telerik.Blazor.ChartLegendPosition
@using ChartSeriesType=Telerik.Blazor.ChartSeriesType
<TelerikChart>
    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Line" Name="Normal Distribution" Data="@series2Data" Field="Y" CategoryField="X" CategoryAxis="Category" Axis="Value" Style="@ChartSeriesStyle.Smooth" Color="blue">
            <ChartSeriesMarkers Visible="false"/>
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.Column" Name="Histogram" Field="Y" CategoryField="X" CategoryAxis="Category" Axis="Value2" Data="@series1Data">
        </ChartSeries>
    </ChartSeriesItems>

    <ChartValueAxes>
        <ChartValueAxis Name="Value"></ChartValueAxis>
        <ChartValueAxis Name="Value2"></ChartValueAxis>
    </ChartValueAxes>

    <ChartCategoryAxes>
        <ChartCategoryAxis Name="Category">
        </ChartCategoryAxis>
    </ChartCategoryAxes>

    <ChartTitle Text="Quarterly revenue per product"></ChartTitle>

    <ChartLegend Position="ChartLegendPosition.Right">
    </ChartLegend>
</TelerikChart>

@code {
    public List<Point> series1Data = new List<Point>()
    {
        new Point { X = 0, Y = 1 },
        new Point { X = 6, Y = 2 },
        new Point { X = 12, Y = 3 },
        new Point { X = 18, Y = 4 },
        new Point { X = 24, Y = 5 },
        new Point { X = 30, Y = 6 },
        new Point { X = 36, Y = 7 },
        new Point { X = 42, Y = 8 },
        new Point { X = 48, Y = 9 },
        new Point { X = 1024, Y = 10 },
    };

    public List<Point> series2Data = new List<Point>()
    {
        new Point { X = 0, Y = 0.01 },
        new Point { X = 5, Y = 0.02 },
        new Point { X = 10, Y = 0.05 },
        new Point { X = 15, Y = 0.1 },
        new Point { X = 20, Y = 0.2 },
        new Point { X = 25, Y = 0.35 },
        new Point { X = 30, Y = 0.5 },
        new Point { X = 35, Y = 0.7 },
        new Point { X = 40, Y = 0.85 },
        new Point { X = 45, Y = 0.95 },
        new Point { X = 50, Y = 1.0 },
        new Point { X = 55, Y = 0.95 },
        new Point { X = 60, Y = 0.85 },
        new Point { X = 65, Y = 0.7 },
        new Point { X = 70, Y = 0.5 },
        new Point { X = 75, Y = 0.35 },
        new Point { X = 80, Y = 0.2 },
        new Point { X = 85, Y = 0.1 },
        new Point { X = 90, Y = 0.05 },
        new Point { X = 95, Y = 0.02 },
        new Point { X = 100, Y = 0.01 }
    };


    public class Point
    {
        public double X { get; set; }
        public double Y { get; set; }
    }

    // protected override void OnInitialized()
    // {
    //     var samples = new double[] {0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 54, 57, 60, 63, 66, 69, 72, 75, 78, 81, 84, 87, 90, 93};
    //     var std = StatisticsHelper.StandardDeviation(samples);
    //     var average = samples.Average();
    //     var yValues = StatisticsHelper.CalculateProbabilityDensityValues(samples.ToList(), std, average);
    //
    //     series2Data = samples
    //         .Zip(yValues, (x, y) => new DistributionPoint { X = x, Y = y })
    //         .ToList();
    //
    //     base.OnInitialized();
    // }
}

Does TelerikChart support a numeric X-axis instead of a CategoryAxis?
If so, should I be using a ChartValueAxis for the X-axis instead of a ChartCategoryAxis?

Is there a recommended way to configure a dual-axis chart where both the column and line series share a numeric X-axis?
I'd like the spacing to be consistent and reflect the actual distance between values.

PS: I also tried this with XAxes instead of CategoryAxes. But the same issue occurs.
Also I tried to use ascatterline instead of line. with type numeric on the x-axis. But then I cant add the column on that axis.

If you need more information, or if the issue is unclear, feel free to ask.

[Dimo]

Hello Nuur,

>> Does TelerikChart support a numeric X-axis instead of a CategoryAxis?

Yes, the Chart can display category series and numeric series, but not both at the same time.

>> If so, should I be using a ChartValueAxis for the X-axis instead of a ChartCategoryAxis?

No, use a ChartXAxis like in the ScatterLine example.

>> Is there a recommended way to configure a dual-axis chart where both the column and line series share a numeric X-axis?

The Chart Column series is categorical one and cannot use a numeric axis. The Chart cannot display categorical and numerical series at the same time.

>> I'd like the spacing to be consistent and reflect the actual distance between values.

This is possible with numeric series and XAxis.

>> I tried to use ascatterline instead of line with type numeric on the x-axis. But then I cant add the column on that axis.

Yes, this is by design. Consider two separate Charts.

Regards,
Dimo
Progress Telerik
