Telerik Report Designer Standalone

[minh]

Hi support team.

I go back to you on this subject because I have a problem as below:

I'm using Telerik Report Designer Standalone for making my report template.

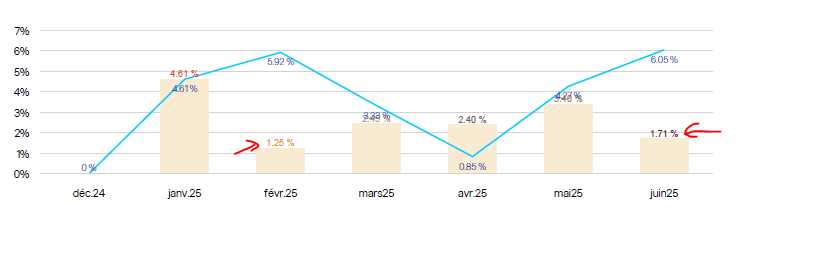

In fact, I have 2 series: 1 barserie and 1 lineserie. In Line serie, I can make any style of DataPointLabel without any problem. However in bar serie, I want to change the color of DataPointLabel as below but it doesn't take in affect, please help me to resolve it

[minh]

Hello Dimitar,



I found a solution: In the rule, it must affect "StopIfTrue" = True, then the selected color will override the default colors set.

Have a nice day

[Dimitar]

Hello Minh,

Thank you for the screenshot and the additional information!

I noticed that you had asked the same question in the Multi-series in the same Graph in Reporting | Telerik Forums thread where I have already responded.

I will copy my reply in this thread so that other users who find it can look at the answer directly but please try to not duplicate your questions in the future.

To change the bar's color, either the label text or the bar itself:

• if you need to change the color of the bar itself, you must use the Series.DataPointStyle.BackgroundColor property.
• If you need to change the color of the text of the data point label, you can use the Series.DataPointLabelStyle.Color property.

I hope that the provided information will help.

Regards,
Dimitar
Progress Telerik

[minh]

Hi Dimitar,



Thank you for your answer.

I want to change the color of text of data point label. But, I'm using Telerik Report Designer standalone.

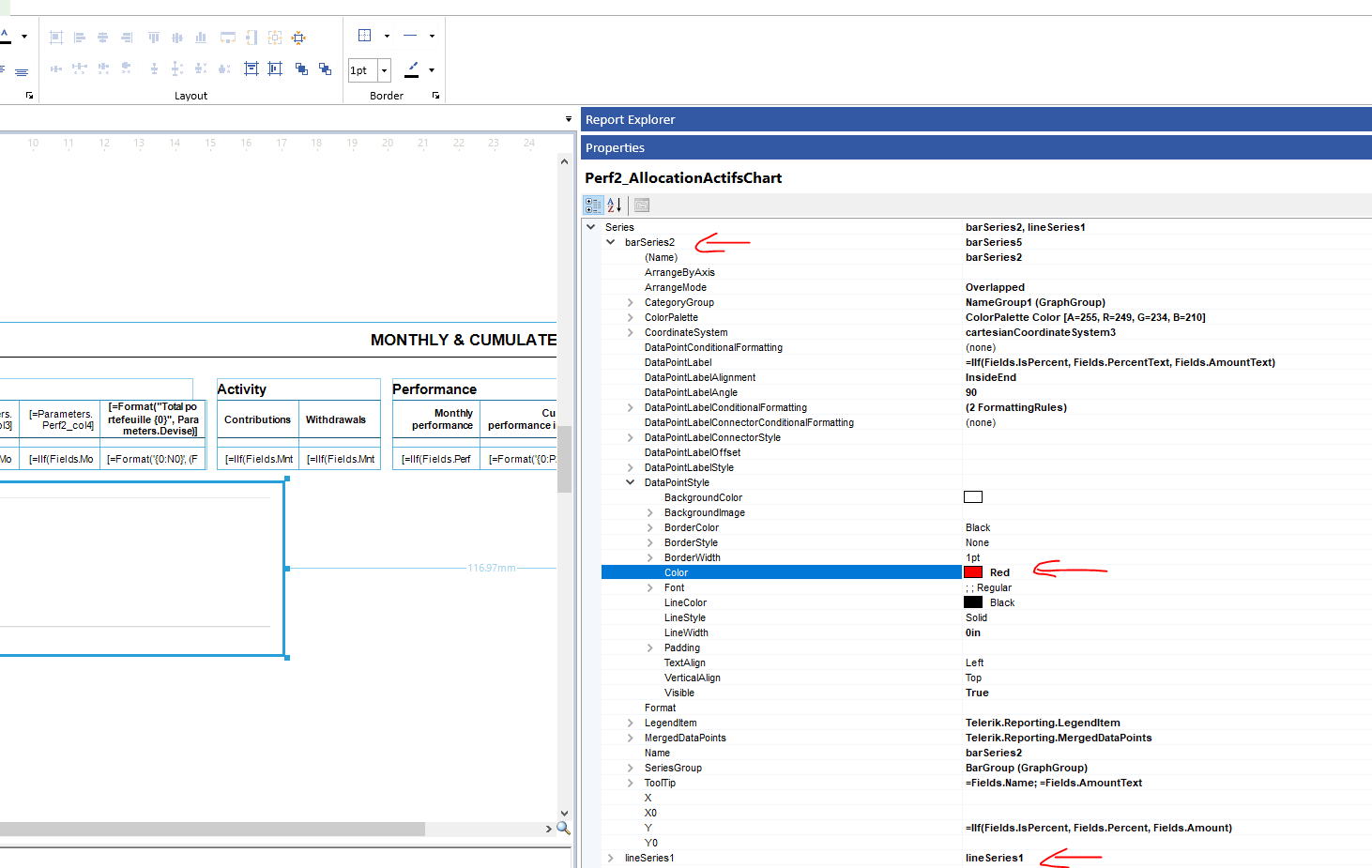

I tried to make the condition on that like below:

But the result is not changing:

[minh]

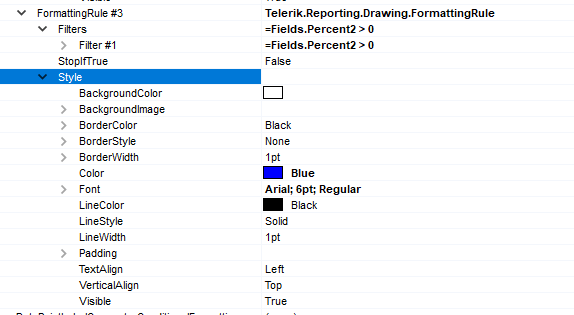

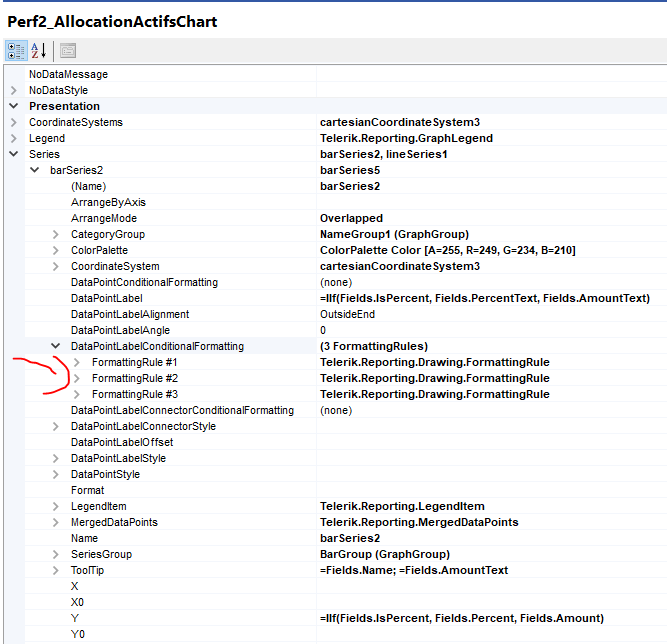

This is a detail of my rule:
