Stefan asked on 28 Jan 2021, 07:50 AM

Hi everybody,

the synchronization of buttons and the circle is not working correctly. Sometimes when I use one of the buttons the circle jumps back to zero or it is not moving. It seems that the buttons are using different values as the circle. You can also see this effect when using the online sample for label template (https://demos.telerik.com/blazor-ui/slider/label-template).

Curious: the online sample for overview (https://demos.telerik.com/blazor-ui/slider/overview) seems working correctly.

BTW: the same effect exists for RangeSlider component.



Best Regards, Stefan

15 Answers, 1 is accepted

Sort by
0
Marin Bratanov
Telerik team
answered on 28 Jan 2021, 12:16 PM

Hello Stefan,

Could you try this locally? It is possible that there is a big latency between you and our demos and that could cause various problems with the server-side flavor that the demos app uses.

I am also attaching here a short video from some of my tests so you can confirm if I am missing something, because I can't reproduce such issues. Is there some other action I need to take? How does this reproduce with the range slider considering it does not have buttons?

Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Stefan
Top achievements
Rank 1
Veteran
answered on 28 Jan 2021, 01:12 PM

Hi Marin,

thx for your answer. I also made a video with my experiences, but I'm not able to attach the ZIP file here.

Regards, Stefan

0
Marin Bratanov
Telerik team
answered on 28 Jan 2021, 01:16 PM

Hello Stefan,

You could either open a support ticket where you can add zip files, or you can upload it to some file share like onedrive, dropbox, googledrive.

Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Stefan
Top achievements
Rank 1
Veteran
answered on 28 Jan 2021, 01:29 PM

Hi Marin,

here is a link with the video that I made:

https://1drv.ms/u/s!AmHsBuOlkqJPiNNfdXb7m6xObD2GxA?e=lwX80F

Regards, Stefan

0
Marin Bratanov
Telerik team
answered on 28 Jan 2021, 01:34 PM

Hi Stefan,

This looks like it could be a latency issue. Could you try running the demo code in a local solution to see if you can reproduce it:

<label class="title"> Define price range for the product</label>
<div class="mt-md">
    <TelerikSlider @bind-Value="@Value"
                   Min="5.0m"
                   Max="10.0m"
                   SmallStep="0.25m"
                   LargeStep="0.5m"
                   Decimals="2"
                   Width="500px">
        <LabelTemplate>
            <span class="label-template">@context.ToString("c1")</span>
        </LabelTemplate>
    </TelerikSlider>
</div>

@code {
    public decimal Value { get; set; } = 9.5m;
}

<style>
    .title {
        text-align: center;
        font-size: 18px;
        color: #656565;
    }
    .label-template {
        font-style: italic;
    }
</style>

Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Stefan
Top achievements
Rank 1
Veteran
answered on 28 Jan 2021, 05:59 PM

Hi Marin,

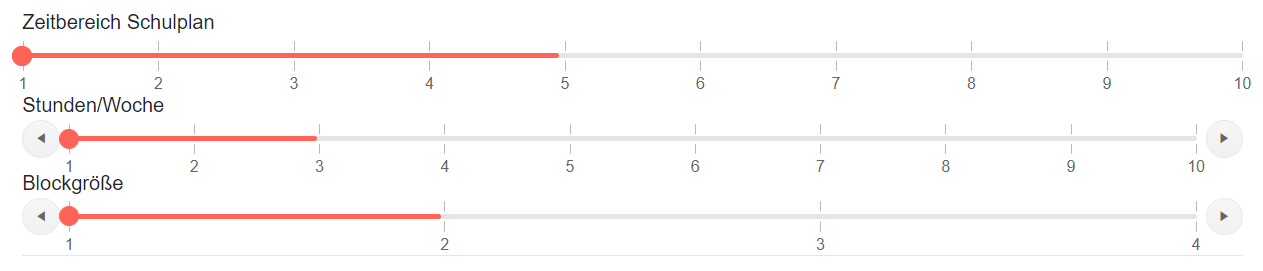

the sliders are embedded inside of a Blazor Webassembly App. The data is binded to a model and after loading the model data the visualized data is not correct. The limits are fixed and the displayed values are correct. But the changeable values are wrong when starting the page. Attached is a screenshot with following controls:

- RangeSlider with start values 2 and 5

- Slider with start value 3

- Slider with start value 2

The bar length is right for sliders, for range slider the start position of the bar is not correct. And the position of the circle is always at the beginning after initializing the page data.

Regards, Stefan

0
Marin Bratanov
Telerik team
answered on 28 Jan 2021, 06:05 PM

Hello Stefan,

I am still not able to reproduce such problems. Someone else is having similar issues, though, so perhaps something there can also help you see what I am missing from the setup: https://feedback.telerik.com/blazor/1504323-telerikslider-only-works-properly-if-range-is-a-multiple-of-10



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Marin Bratanov
Telerik team
answered on 29 Jan 2021, 07:22 PM

Hello Stefan,

In that thread René caught it - it was a culture issue where a comma was rendered instead of a dot as a decimal separator. A fix is pending testing.



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Stefan
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 07:31 AM

Hi Marin,

In my environment the slider is working now, but the range slider behaviour is as wrong as before. I made a very simple project where I try to show you the effect: https://1drv.ms/u/s!AmHsBuOlkqJPiNNfdXb7m6xObD2GxA?e=juSnZy

The page FetchData.razor contains a range slider control with a corresponding model instance.



May be it is better to move this thread to range slider section?

Regards, Stefan

0
Stefan
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 07:43 AM

Hi Marin,

sorry to say: the slider control is also not working as suspected. I Implemented also a slider control to the sample app, hope it helps.

Regards, Stefan

0
Stefan
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 08:26 AM

Hi Marin,

it seems that setting the value of Min property (Slider and Range Slider control) to 0 helps.

Regards, Stefan

0
Stefan
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 08:34 AM

Hi Marin,

correction: when setting Min value to 0 and Max value to 10 everything seems working fine. With Min/Max combinations like 0/9 or 1/10 the behaviour of both controls is wrong.



Regards,

Stefan

0
Marin Bratanov
Telerik team
answered on 01 Feb 2021, 11:14 AM

Hello Stefan,

I see an issue in both the sample sliders if I add something like this in Program.cs which makes the culture be something that uses commas for the decimal separator (I expect that's the default on your machine).

I just tried that project (including the culture setting) with the current fix and it seemed to work fine for me, so I expect 2.22.0 will bring this fix for you. You can Follow its status here: https://feedback.telerik.com/blazor/1504323-slider-handle-has-wrong-position-in-cultures-with-comma-for-a-decimal-separator



        public static async Task Main(string[] args)
        {
            var builder = WebAssemblyHostBuilder.CreateDefault(args);
            builder.Services.AddTelerikBlazor();
            builder.RootComponents.Add<App>("#app");

            builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

            CultureInfo desiredCulture = new CultureInfo("de-DE");
            CultureInfo.DefaultThreadCurrentCulture = desiredCulture;
            CultureInfo.DefaultThreadCurrentUICulture = desiredCulture;

            await builder.Build().RunAsync();
        }





Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Stefan
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 11:23 AM

Hi Marin,

I checked this by using another culture info ("en-US") and you are right: in this case the visualization was correct.

Thank you for support, great work!

Regards,

Stefan

0
Marin Bratanov
Telerik team
answered on 01 Feb 2021, 11:26 AM

Thank you for confirming my findings, Stefan, there is always a chance I've missed something (it took me a while to figure out it was the culture, and it was actually Rene who noticed).



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
