Static Line on Chart

2 Answers 56 Views
Charts
Harry
Top achievements
Rank 1
Harry asked on 09 Jun 2021, 12:40 PM

I am wanting to display a static line on a line chart to show a target the is hoping to be reached.

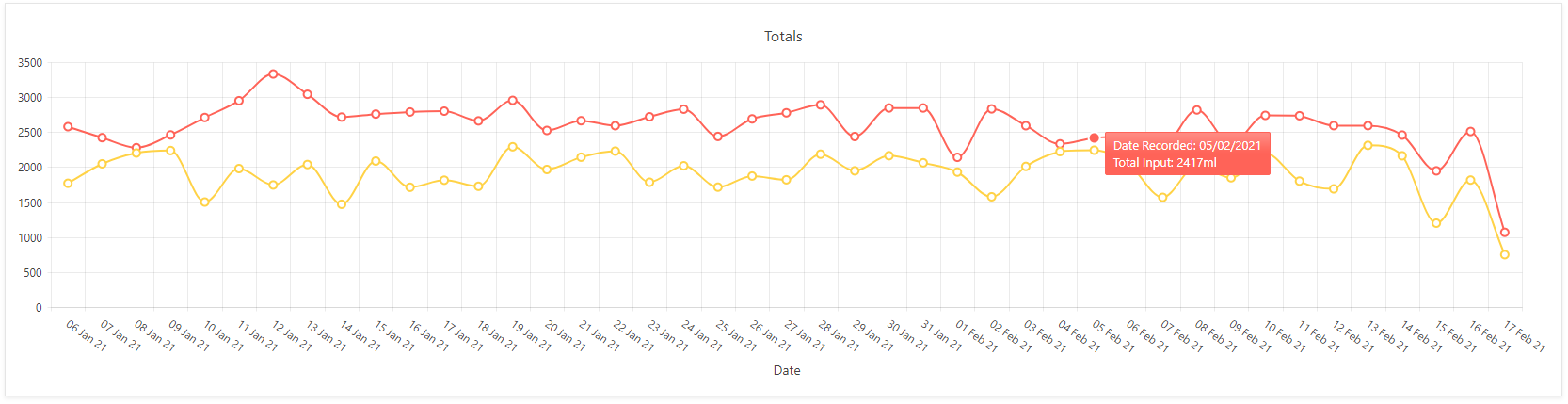

the screenshot is an example of the current graph and what we need is a solid line to be shown at a set value for example 2250 that goes all the way across so that you can see which points are hitting the target needed.

2 Answers, 1 is accepted

Sort by
0
Svetoslav Dimitrov
Telerik team
answered on 14 Jun 2021, 06:51 AM

Hello Harry,

We have an open Feature Request regarding the ability to easily draw horizontal and vertical lines in the Charts. I have added your Vote for it and you can follow it to receive email notifications on status updates. In the public thread, opening post, you can see some options for a workaround.

Regards,
Svetoslav Dimitrov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Peter
Top achievements
Rank 2
Iron
Veteran
Iron
answered on 28 Jan 2022, 11:35 AM

Hi Harry,

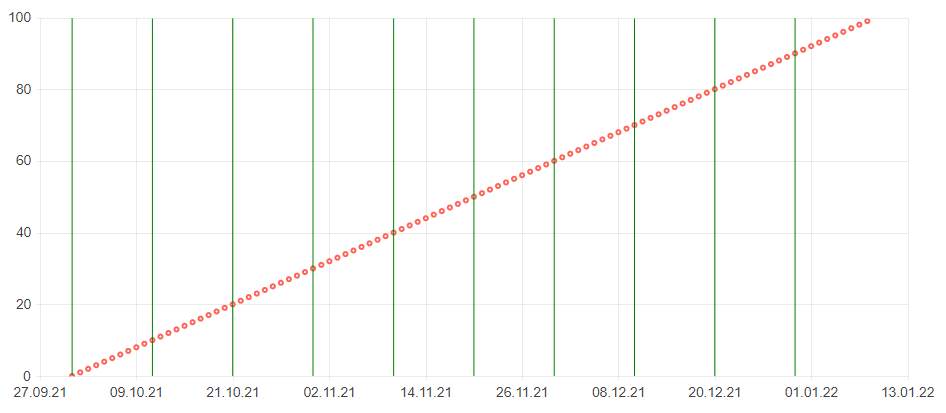

as workaround for vertical lines I use a Scatterline with missing values and ChartSeriesMissingValues.Gap.

Regards,

Peter




@page "/Testchart"

<TelerikChart>
    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Scatter" Data="@serie"
                     XField="@nameof(DataModel.x)" YField="@nameof(DataModel.y)">
            <ChartSeriesMarkers Type="ChartSeriesMarkersType.Circle" Size="4" />
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.ScatterLine" Data="@verticalLines"
                     XField="@nameof(DataModel.x)" YField="@nameof(DataModel.y)"
                     MissingValues="ChartSeriesMissingValues.Gap" Color="Green">
            <ChartSeriesMarkers Size="0" />
        </ChartSeries>
    </ChartSeriesItems>
    <ChartYAxes>
        <ChartYAxis Min="ymin" Max="ymax" />
    </ChartYAxes>
    <ChartXAxes>
        <ChartXAxis Type="date" BaseUnit="days">
            <ChartXAxisLabels Format="{0:dd.MM.yy}"></ChartXAxisLabels>
        </ChartXAxis>
    </ChartXAxes>
</TelerikChart>

@code {

    class DataModel
    {
        public DateTime x { get; set; }
        public double y { get; set; }
    }

    int ymin = 0;
    int ymax = 100;

    List<DataModel> serie { get; set; } = new List<DataModel>();
    List<DataModel> verticalLines { get; set; } = new List<DataModel>();

    protected override async Task OnInitializedAsync()
    {
        var start = new DateTime(2021, 10, 1);
        for (var i = 0; i < 100; i++)
            serie.Add((new DataModel { x = start.AddDays(i), y = i }));

        for (var i = 0; i < 100; i+=10)
        {
            verticalLines.Add(new DataModel { x = start.AddDays(i) , y = ymin });
            verticalLines.Add(new DataModel { x = start.AddDays(i) , y = ymax });
            verticalLines.Add(null);
        }
      }
}
