marco asked on 19 Mar 2015, 12:02 AM

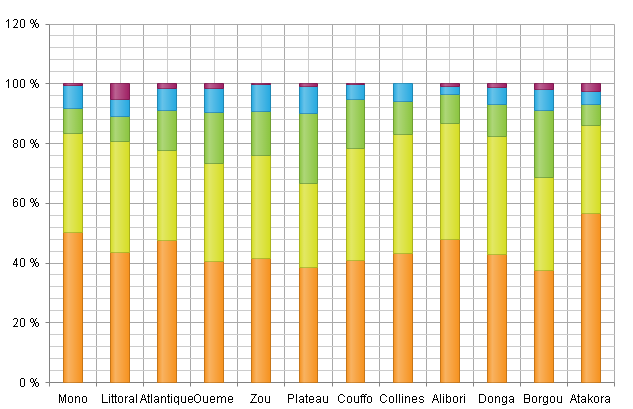

Why sometimes the chart shows 120% instead of stopping at 100%? (see attached image)

is there a way to force to not show anything over 100?


7 Answers, 1 is accepted

Sort by
0
Danail Vasilev
Telerik team
answered on 19 Mar 2015, 12:08 PM
Hi Marco,

Could you please provide us with the markup that reproduces the issue? You can hard code some values to the chart in order to make it runnable.

Could you also tell us which Telerik UI version you are using as well as whether there are any existing JavaScript errors on your page?

Regards,
Danail Vasilev
Telerik


Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


0
marco
Top achievements
Rank 2
answered on 19 Mar 2015, 01:31 PM
Hi Danail,

I don't have markup as the datasource is built client side.
Please find below a code to generate the series that are causing problems.

the datasource is a list
List<IncomeChartItem> incomeChartItems = new List<IncomeChartItem>();

where the object IncomeChartItem is defined like below:
01.public class IncomeChartItem
02.{
03.    public string Adm1Name { get; set; }
04.
05.    public string cat1Name { get; set; }
06.    public string cat2Name { get; set; }
07.    public string cat3Name { get; set; }
08.    public string cat4Name { get; set; }
09.    public string cat5Name { get; set; }
10.    public string cat6Name { get; set; }
11.    public double cat1Val { get; set; }
12.    public double cat2Val { get; set; }
13.    public double cat3Val { get; set; }
14.    public double cat4Val { get; set; }
15.    public double cat5Val { get; set; }
16.    public double cat6Val { get; set; }
17.
18.}

Here is a code to put values in the list (declare first the IncomeChartItem ici variable)

001.ici = new IncomeChartItem();
002.ici.Adm1Name="Alibori";
003.ici.cat1Val=2.21;
004.ici.cat2Val=0.23;
005.ici.cat3Val=59.88;
006.ici.cat4Val=10.93;
007.ici.cat5Val=0.23;
008.ici.cat6Val=0;
009.ici.cat1Name="Agro - Cash Crops";
010.ici.cat2Name="Agro - Fishing";
011.ici.cat3Name="Agro - Food Crops";
012.ici.cat4Name="Commerce - Business/Trading";
013.ici.cat5Name="Commerce - Rents/Investment";
014.ici.cat6Name="";
015.incomeChartItems.Add(ici);
016.
017.ici = new IncomeChartItem();
018.ici.Adm1Name="Atakora";
019.ici.cat1Val=13.13;
020.ici.cat2Val=0;
021.ici.cat3Val=60.28;
022.ici.cat4Val=7.6;
023.ici.cat5Val=0.35;
024.ici.cat6Val=0;
025.ici.cat1Name="Agro - Cash Crops";
026.ici.cat2Name="Agro - Fishing";
027.ici.cat3Name="Agro - Food Crops";
028.ici.cat4Name="Commerce - Business/Trading";
029.ici.cat5Name="Commerce - Rents/Investment";
030.ici.cat6Name="";
031.incomeChartItems.Add(ici);
032.
033.ici = new IncomeChartItem();
034.ici.Adm1Name="Atlantique";
035.ici.cat1Val=3.64;
036.ici.cat2Val=8.48;
037.ici.cat3Val=19.55;
038.ici.cat4Val=14.38;
039.ici.cat5Val=0.84;
040.ici.cat6Val=0;
041.ici.cat1Name="Agro - Cash Crops";
042.ici.cat2Name="Agro - Fishing";
043.ici.cat3Name="Agro - Food Crops";
044.ici.cat4Name="Commerce - Business/Trading";
045.ici.cat5Name="Commerce - Rents/Investment";
046.ici.cat6Name="";
047.incomeChartItems.Add(ici);
048.
049.ici = new IncomeChartItem();
050.ici.Adm1Name="Borgou";
051.ici.cat1Val=4.92;
052.ici.cat2Val=0.08;
053.ici.cat3Val=43.52;
054.ici.cat4Val=9.51;
055.ici.cat5Val=0.49;
056.ici.cat6Val=0;
057.ici.cat1Name="Agro - Cash Crops";
058.ici.cat2Name="Agro - Fishing";
059.ici.cat3Name="Agro - Food Crops";
060.ici.cat4Name="Commerce - Business/Trading";
061.ici.cat5Name="Commerce - Rents/Investment";
062.ici.cat6Name="";
063.incomeChartItems.Add(ici);
064.
065.ici = new IncomeChartItem();
066.ici.Adm1Name="Collines";
067.ici.cat1Val=5;
068.ici.cat2Val=0;
069.ici.cat3Val=46.17;
070.ici.cat4Val=13.17;
071.ici.cat5Val=0;
072.ici.cat6Val=0;
073.ici.cat1Name="Agro - Cash Crops";
074.ici.cat2Name="Agro - Fishing";
075.ici.cat3Name="Agro - Food Crops";
076.ici.cat4Name="Commerce - Business/Trading";
077.ici.cat5Name="Commerce - Rents/Investment";
078.ici.cat6Name="";
079.incomeChartItems.Add(ici);
080.
081.ici = new IncomeChartItem();
082.ici.Adm1Name="Couffo";
083.ici.cat1Val=4.07;
084.ici.cat2Val=0;
085.ici.cat3Val=37.59;
086.ici.cat4Val=14.81;
087.ici.cat5Val=0.09;
088.ici.cat6Val=0;
089.ici.cat1Name="Agro - Cash Crops";
090.ici.cat2Name="Agro - Fishing";
091.ici.cat3Name="Agro - Food Crops";
092.ici.cat4Name="Commerce - Business/Trading";
093.ici.cat5Name="Commerce - Rents/Investment";
094.ici.cat6Name="";
095.incomeChartItems.Add(ici);
096.
097.ici = new IncomeChartItem();
098.ici.Adm1Name="Donga";
099.ici.cat1Val=1.87;
100.ici.cat2Val=0;
101.ici.cat3Val=54.38;
102.ici.cat4Val=10.47;
103.ici.cat5Val=0.29;
104.ici.cat6Val=0;
105.ici.cat1Name="Agro - Cash Crops";
106.ici.cat2Name="Agro - Fishing";
107.ici.cat3Name="Agro - Food Crops";
108.ici.cat4Name="Commerce - Business/Trading";
109.ici.cat5Name="Commerce - Rents/Investment";
110.ici.cat6Name="";
111.incomeChartItems.Add(ici);
112.
113.ici = new IncomeChartItem();
114.ici.Adm1Name="Littoral";
115.ici.cat1Val=2.56;
116.ici.cat2Val=0.24;
117.ici.cat3Val=0.12;
118.ici.cat4Val=28.87;
119.ici.cat5Val=3.93;
120.ici.cat6Val=0;
121.ici.cat1Name="Agro - Cash Crops";
122.ici.cat2Name="Agro - Fishing";
123.ici.cat3Name="Agro - Food Crops";
124.ici.cat4Name="Commerce - Business/Trading";
125.ici.cat5Name="Commerce - Rents/Investment";
126.ici.cat6Name="";
127.incomeChartItems.Add(ici);
128.
129.ici = new IncomeChartItem();
130.ici.Adm1Name="Mono";
131.ici.cat1Val=1.9;
132.ici.cat2Val=5.2;
133.ici.cat3Val=14.6;
134.ici.cat4Val=20.4;
135.ici.cat5Val=0.4;
136.ici.cat6Val=0;
137.ici.cat1Name="Agro - Cash Crops";
138.ici.cat2Name="Agro - Fishing";
139.ici.cat3Name="Agro - Food Crops";
140.ici.cat4Name="Commerce - Business/Trading";
141.ici.cat5Name="Commerce - Rents/Investment";
142.ici.cat6Name="";
143.incomeChartItems.Add(ici);
144.
145.ici = new IncomeChartItem();
146.ici.Adm1Name="Oueme";
147.ici.cat1Val=13.59;
148.ici.cat2Val=4.59;
149.ici.cat3Val=3.75;
150.ici.cat4Val=18.24;
151.ici.cat5Val=0.83;
152.ici.cat6Val=0;
153.ici.cat1Name="Agro - Cash Crops";
154.ici.cat2Name="Agro - Fishing";
155.ici.cat3Name="Agro - Food Crops";
156.ici.cat4Name="Commerce - Business/Trading";
157.ici.cat5Name="Commerce - Rents/Investment";
158.ici.cat6Name="";
159.incomeChartItems.Add(ici);
160.
161.ici = new IncomeChartItem();
162.ici.Adm1Name="Plateau";
163.ici.cat1Val=5.04;
164.ici.cat2Val=0.22;
165.ici.cat3Val=33.48;
166.ici.cat4Val=11.98;
167.ici.cat5Val=0.45;
168.ici.cat6Val=0;
169.ici.cat1Name="Agro - Cash Crops";
170.ici.cat2Name="Agro - Fishing";
171.ici.cat3Name="Agro - Food Crops";
172.ici.cat4Name="Commerce - Business/Trading";
173.ici.cat5Name="Commerce - Rents/Investment";
174.ici.cat6Name="";
175.incomeChartItems.Add(ici);
176.
177.ici = new IncomeChartItem();
178.ici.Adm1Name="Zou";
179.ici.cat1Val=7.43;
180.ici.cat2Val=0.68;
181.ici.cat3Val=23.67;
182.ici.cat4Val=19.02;
183.ici.cat5Val=0.19;
184.ici.cat6Val=0;
185.ici.cat1Name="Agro - Cash Crops";
186.ici.cat2Name="Agro - Fishing";
187.ici.cat3Name="Agro - Food Crops";
188.ici.cat4Name="Commerce - Business/Trading";
189.ici.cat5Name="Commerce - Rents/Investment";
190.ici.cat6Name="";
191.incomeChartItems.Add(ici);


The code I'm using to built the chart (id=CrtCols) is:

01.CrtCols.PlotArea.Series.Clear();
02.CrtCols.Legend.Appearance.Position = Telerik.Web.UI.HtmlChart.ChartLegendPosition.Bottom;
03.
04.//Add only the categories selected by the user through a checkboxlist
05.for(int i = 0; i < numberOfSelectedCategories; i++)
06.{
07.    ColumnSeries ps = new ColumnSeries();
08.    ps.DataFieldY = "cat" + (i+1) + "Val";
09.    ps.LabelsAppearance.DataField = "cat" + (i+1) + "Name";
10.    ps.LabelsAppearance.Visible = false;
11.    ps.TooltipsAppearance.ClientTemplate = "Category: #= dataItem.cat" + (i + 1) + "Name#<br/>Value: #= dataItem.cat" + (i + 1) + "Val.format(\"N2\")#<br/>#=(percentage*100).format(\"N2\")#%";
12.     ps.Stacked = true;
13.     ps.StackType = Telerik.Web.UI.HtmlChart.Enums.HtmlChartStackType.Stack100;
14.     CrtCols.PlotArea.Series.Add(ps);
15.}
16.
17.CrtCols.PlotArea.XAxis.DataLabelsField = "Adm1Name";
18.
19.incomeChartItems = incomeChartItems.OrderBy(i => i.Adm1Name).ToList(); //Sort admin units by alpha
20.CrtCols.DataSource = incomeChartItems;
21.CrtCols.DataBind();

you can set to numberOfSelectedCategories to 5 as in the code I've provided you I've filled in only 5 stacked series

regarding the version, I'm using the latest one, I've upgraded it two days ago.

Many thanks
Marco
