Splitter sliding vertically from the bottom of the Window...

2 posts, 0 answers
  1. mark baer
    mark baer avatar
    142 posts
    Member since:
    Sep 2009

    Posted 13 Apr 2011 Link to this post

    I am trying to use the Splitter/Sliding Panel as a "Message Center" for errors in my master page.  I would like it at the BOTTOM of my Window.  Currently it shows up at the Bottom of My HTML...Can I get it so that it is ALWAYS at the Bottom of the Browser Window?  Here is my currently markup:

    Thanks, much appreciated.


    <telerik:RadSplitter ID="RadSplitter1" runat="server" Orientation="Vertical" Skin="WebBlue" Width="100%" ><br>            <telerik:RadPane ID="RadPane1" runat="server"><br>                <telerik:RadSlidingZone ID="RadSlidingZone1" runat="server" SlideDirection="Top"><br>                    <telerik:RadSlidingPane ID="RadSlidingPane1" runat="server" Title="Message Center" Height="100" Scrolling="Y" BackColor="Red"><br>                        <asp:Label ID="lblErrorMessage" CssClass="textFields" runat="server" Text="Label"></asp:Label><br>                    </telerik:RadSlidingPane><br>                </telerik:RadSlidingZone><br>            </telerik:RadPane><br>        </telerik:RadSplitter>

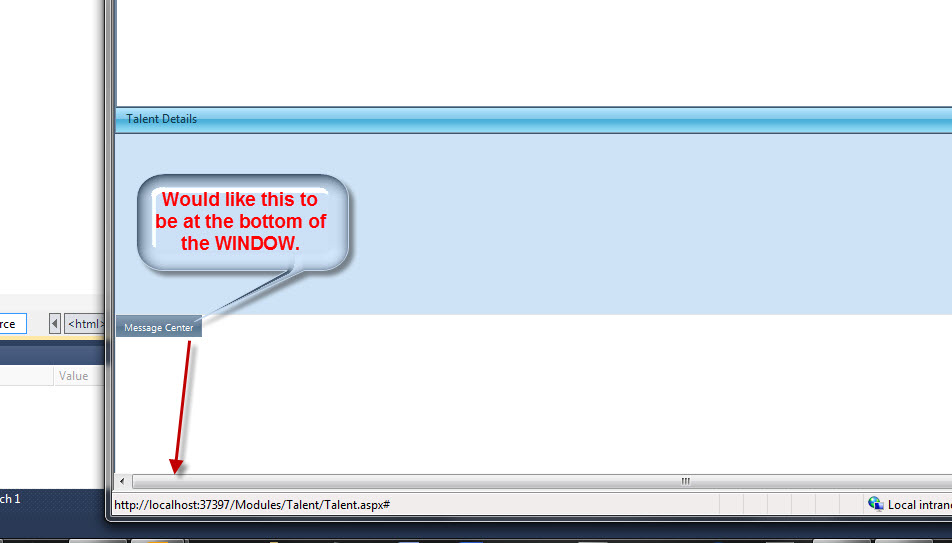

    See attached image for current placement.
  2. Svetlina Anati
    Svetlina Anati avatar
    2795 posts

    Posted 14 Apr 2011 Link to this post

    Hello mark,

    The RadSplitter control is a layout control and it cannot be used only with one pane with sliding pane and as a popup - for this scenario you should use another control, e.g the panelbar in a similar configuration to the one shown below (changing orientation):


    You can, however, configure the splitter to be 100%, change orientation, put the page content in another RadPane and set border to be hidden - in this case you will get a whole layout, similar to your requirement, not only a popup.

    For your convenience I prepared sample configuration:

    <%@ Page Title="Home Page" Language="C#" %>
    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <head id="Head1" runat="server">
        <title>Untitled Page</title>
        <style type="text/css">
            html, body, form
                height: 100%;
                margin: 0;
                padding: 0;
        <form id="form1" runat="server">
        <asp:ScriptManager ID="ScriptManager2" runat="server">
        <telerik:RadSplitter ID="RadSplitter1" runat="server" Skin="WebBlue" Orientation="Horizontal"
            Width="100%" Height="100%" BorderSize="0">
            <telerik:RadPane ID="RadPane2" runat="server">
                PAGE CONTENT GOES HERE
            <telerik:RadPane ID="RadPane1" runat="server" Height="22">
                <telerik:RadSlidingZone ID="RadSlidingZone1" runat="server" SlideDirection="Top">
                    <telerik:RadSlidingPane ID="RadSlidingPane1" runat="server" Title="Message Center"
                        Height="100" Scrolling="Y" BackColor="Red">
                        <asp:Label ID="lblErrorMessage" CssClass="textFields" runat="server" Text="Label"></asp:Label><br>

    I hope that my explanations and suggestions are helpful, let me know if you have additional questions.

    All the best,
    the Telerik team
